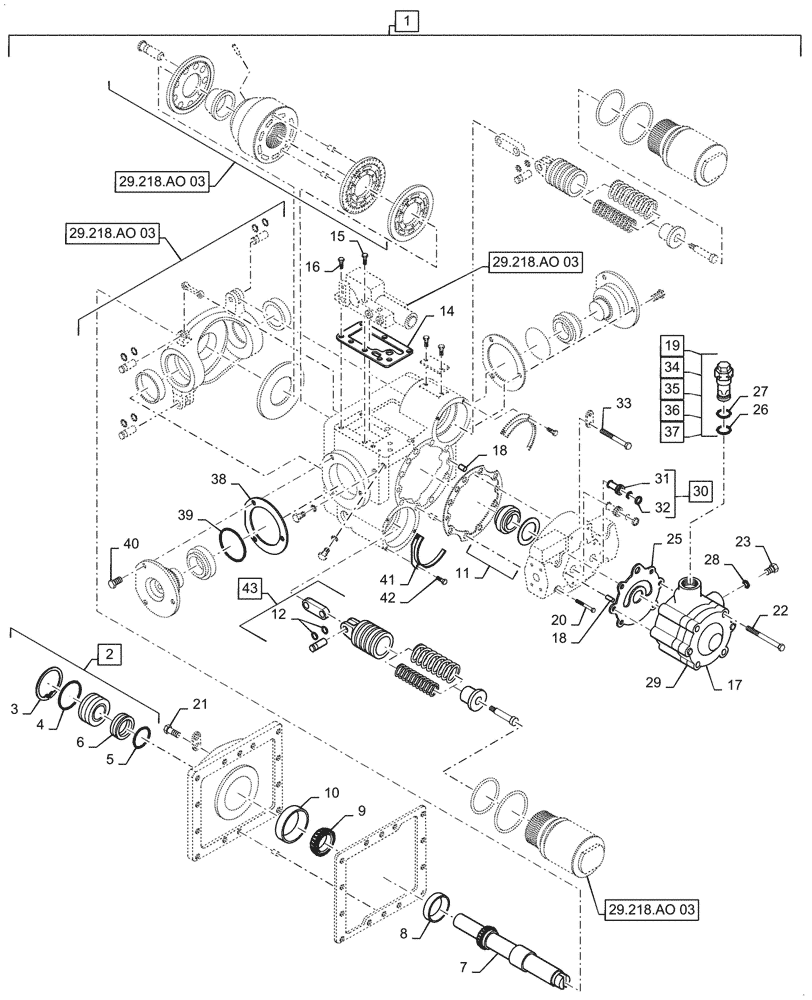

Запчасти Case IH 7088 (29.218.AO[02]) - HYDROSTATIC PUMP ASSY (125 CC/REV) (29) - HYDROSTATIC DRIVE

1

87648799

HYDROSTATIC PUMP,124 CC

125 CC/REV, Incl 2 - 44

1шт.

1

87648799R

REMAN-HYDROSTAT PUMP

125 CC/REV, Incl 2 - 44

1шт.

1

87648799C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

178310A1

SEAL KIT

Rotary Front, Incl 3 - 5

1шт.

3

100-21400

SNAP RING,4.00", Int, #400

1шт.

4

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

5

238-7138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 7, 75 Duro

1шт.

6

87637839

SEAL,39.9mm ID x 50.1mm OD x 8.9mm Thk

Dust

1шт.

7

87699759

SHAFT

Input, Incl Bearing Cone

1шт.

8

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

1шт.

9

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

Input Shaft

1шт.

10

671033R1

BEARING, CUP

Input Shaft

1шт.

11

107585A1

SHIM KIT

Input Shaft, Charge Pump End

1шт.

12

100-1175

SNAP RING,#75, Ext

Incl with 43

1шт.

13

107592A1

WASHER

Control Valve Orifice

1шт.

14

133756C1

GASKET

Control Valve

1шт.

15

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

17

107593A2

PUMP

Kit, Charge, Incl 18 - 20, 22 - 24

1шт.

18

37-1510

DOWEL,5/16" x 5/8"

2шт.

19

1986741C1

VALVE PRESSURE RELIE

Charge Pump

1шт.

20

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

21

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

22

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

Charge Pump Mounting

4шт.

23

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

24

255081A1

SEAL KIT

Charge Pump, Incl 25 - 28

1шт.

25

133760C2

GASKET

Charge Pump

1шт.

26

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

27

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

29

87699760

GASKET,1.02mm Thk

Charge Pump

1шт.

30

140769C1

CHECK VALVE

Incl 31 - 32

2шт.

31

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

32

140770C1

RING

Back Up

1шт.

33

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

34

1986739C1

REPAIR KIT

Internal Pressure Override, Incl 26, 28, 35 - 37

1шт.

35

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

1шт.

36

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

37

235419A1

SHIM KIT

Pressure Relief Valve

1шт.

38

107591A1

SHIM KIT

Trunnion

2шт.

39

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

40

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

41

142408C1

RETAINER

Trunnion

2шт.

42

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

43

107581A1

PISTON

Servo, Incl 12

2шт.
