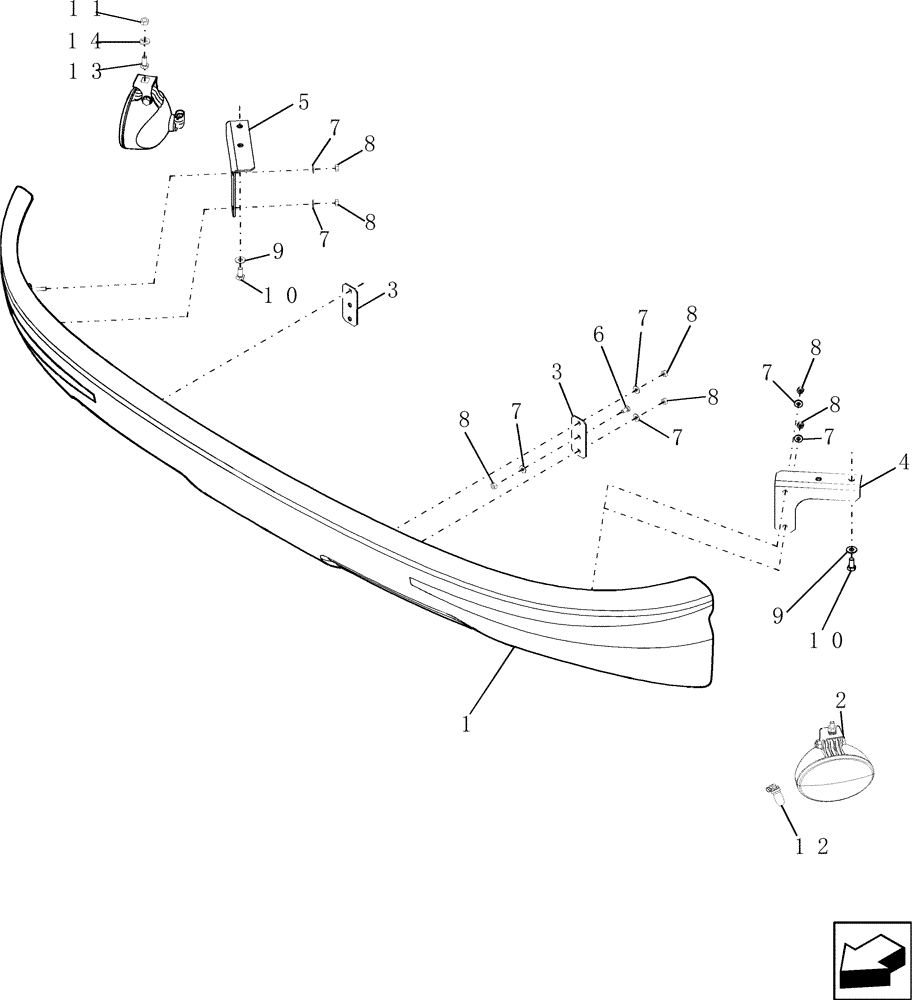

Запчасти Case IH 7010 (90.150.07[01]) - CAB SKIRT - NA - 7010/8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87107773

PANEL

1шт.

2

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

Includes: Refs 12 Thru 15

2шт.

3

87109113

MOUNTING PLATE

2шт.

4

87108879

BRACKET

L.H.

1шт.

5

87108881

BRACKET

R.H.

1шт.

6

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

8

9706755

NUT,M6, Cl 8

10шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

11

PL

PROCURE LOCALLY

Nut, M8

2шт.

12

87107077

BULB,Halogen, 12V, 37.5W

2шт.

13

PL

PROCURE LOCALLY

BOLT, M8

2шт.

14

PL

PROCURE LOCALLY

LOCKWASHER, M8

2шт.
