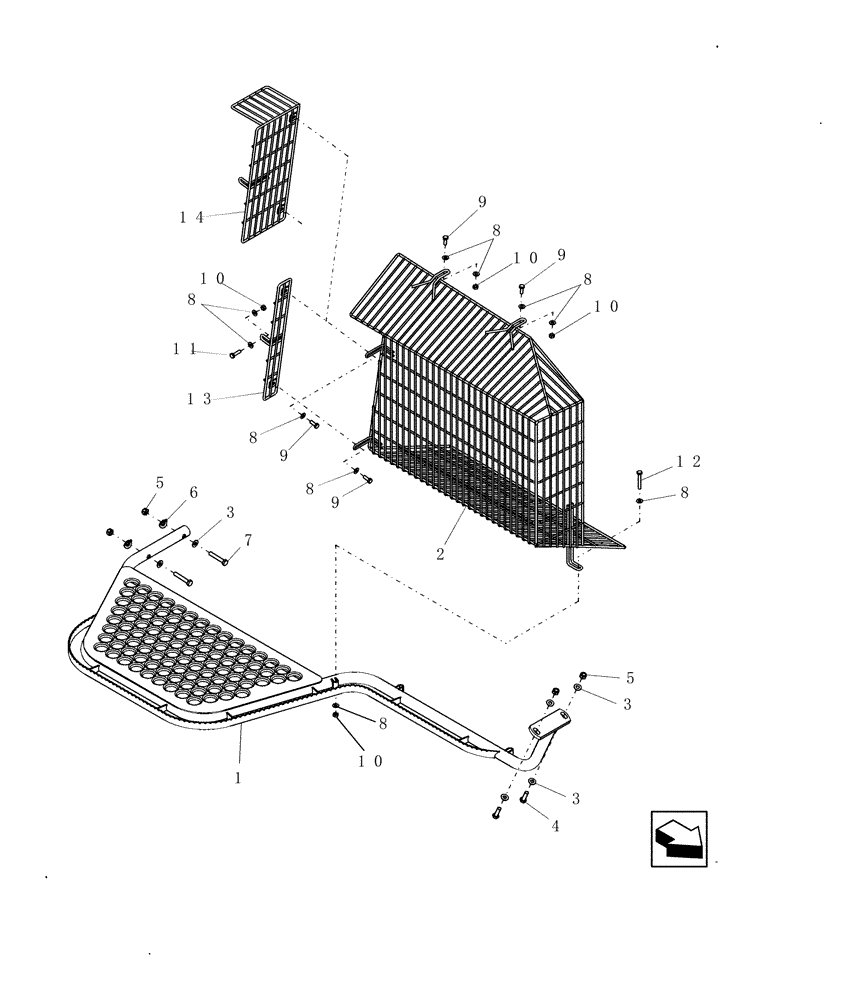

Запчасти Case IH 7010 (90.118.22[03]) - SHIELD, LOWER, R.H - 7010/8010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87283675

PLATFORM

1шт.

2

87562322

SPLASH SHIELD

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

379401

WASHER,11mm ID x 30mm OD

2шт.

7

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

9

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

4шт.

10

9706690

NUT,M8 x 1.25, Cl 8

4шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

13

87562329

SPLASH SHIELD

1шт.

8010 Only

1шт.

14

87562320

SPLASH SHIELD

1шт.

7010 Only

1шт.
