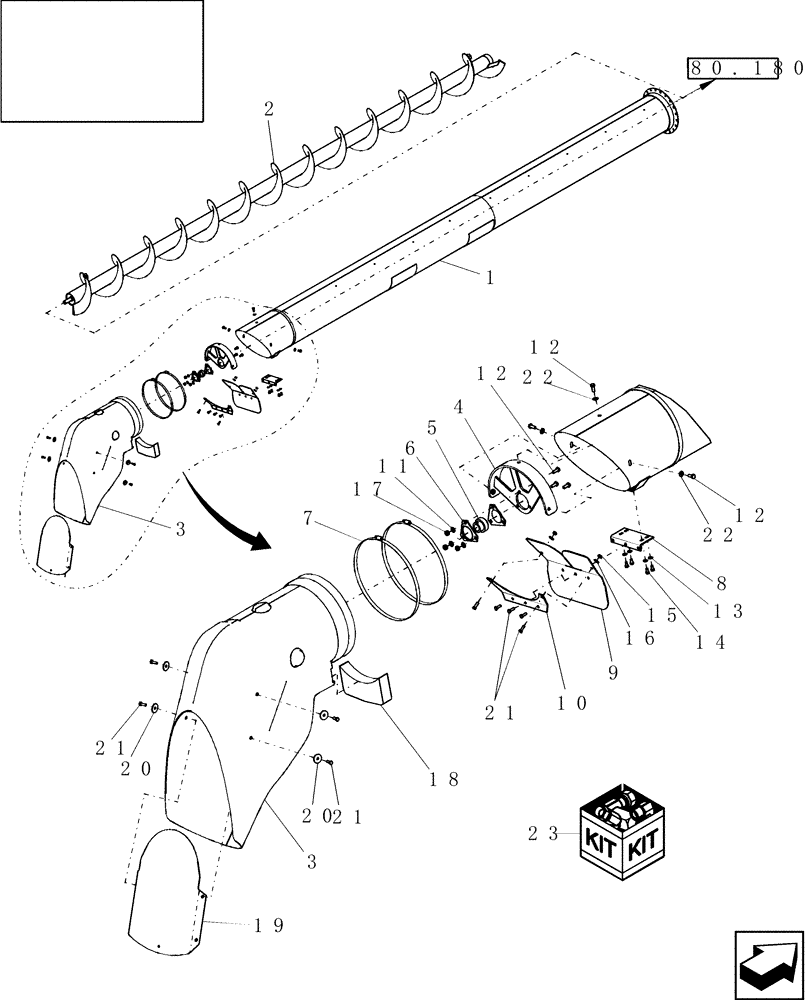

Запчасти Case IH 7010 (80.180.05[01]) - UNLOADING AUGER, HORIZONTAL, 21 FT - PRIOR TO PIN HAJ202001 - 7010/8010 (80) - CROP STORAGE/UNLOADING

1

87553164

UNLOADING TUBE,5107 mm L

Unloading Auger

1шт.

1

87553163

UNLOADING TUBE,5107 mm L

Unloading Auger; Perforated Option

1шт.

2

87560311

AUGER

1шт.

2

87575221

AUGER

Extended Wear

1шт.

3

87581617

SPOUT

DISCHARGE SPOUT

1шт.

4

87380552

SUPPORT

1шт.

5

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

62mm Spherical Outer Ring

1шт.

6

84320112

FLANGE

Flange

1шт.

7

87339347

CLAMP,316mm - 387mm

2шт.

8

87579733

ANGLE

1шт.

9

87517327

FLAP

1шт.

10

87517331

ANGLE

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

15

9706690

NUT,M8 x 1.25, Cl 8

2шт.

16

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

3шт.

18

87589448

INSULATOR

1шт.

19

87594580

DEFLECTOR

1шт.

20

87020812

WASHER,0.34" ID x 1.5" OD x 0.12" Thk

4шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

22

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

3шт.

23

87753912

DIA KIT, HARVESTER

Grain Saver

1шт.
