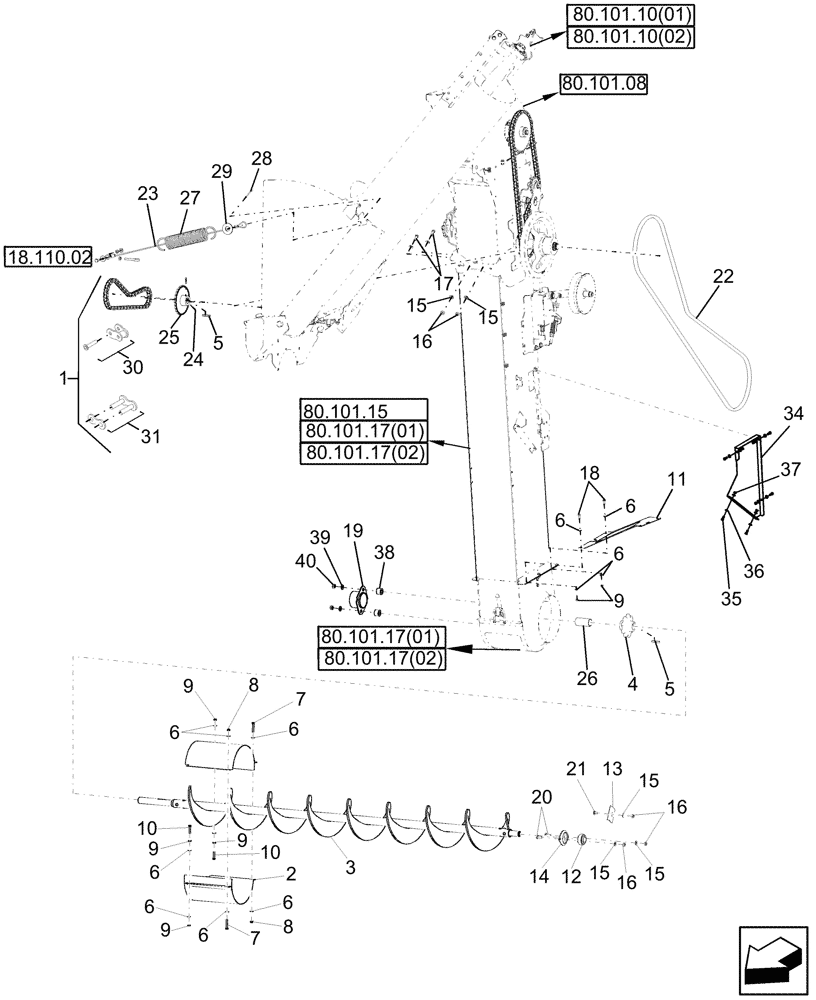

Запчасти Case IH 7010 (80.101.25[01]) - BUBBLE-UP AUGER DRIVE - 7010/8010 (80) - CROP STORAGE/UNLOADING

1

87470736

CHAIN,RC60, 65 Links x 19.05mm = 1238.3mm

Roller

1шт.

2

86999477

TROUGH

Extended Wear

2шт.

7010 Only

1шт.

2

86999480

TROUGH

Extended Wear

2шт.

8010 Only

1шт.

3

87380417

AUGER

STD

1шт.

7010 Only

1шт.

3

87380422

AUGER

Extended Wear

1шт.

7010 Only

1шт.

3

87283266

AUGER

STD

1шт.

8010 Only

1шт.

3

87283130

AUGER

Reinforced

1шт.

8010 Only

1шт.

4

87283436

SPROCKET

45mm I.D.

1шт.

5

170012

KEY,8mm W x 50mm OAL

Bubbler Up Auger

2шт.

5

87283201

KEY,11.978mm W x 69.75mm OAL

70mm Long Horizontal Auger

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

7

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

9

9706690

NUT,M8 x 1.25, Cl 8

6шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

11

86999225

BRACKET

1шт.

7010 Only

1шт.

11

86999223

BRACKET

1шт.

8010 Only

1шт.

12

84069440

BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm

1шт.

13

87313383

COVER

1шт.

14

86548970

FLANGED BEARING

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

1шт.

17

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

86996082

COVER

1шт.

20

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

21

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.

22

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Drive

1шт.

23

87281698

CABLE

L = 920 mm

1шт.

Prior To PIN HAJ202001

1шт.

23

87668051

CABLE ASSY.,1000mm L

L = 1000 mm

1шт.

PIN HAJ202001 & After

1шт.

23

87107054

CABLE,1350mm L

L = 1350 mm

1шт.

Low PF

1шт.

24

80428

SET SCREW,5/16"-18 x 3/8"

2шт.

25

86999492

SPROCKET

Driven

1шт.

26

87283950

TUBE,45.60mm ID x 63.60mm OD x 81.5mm OAL

Bubble-Up Auger Drive

1шт.

27

86975571

SPRING,Extension, 72.4mm OD x 356mm L

1шт.

28

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

29

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1шт.

31

87470738

LINK,19.05mm Pitch

Connecting; W/Shepherd's Hook Connector

1шт.

32

NSS

NOT SOLD SEPARAT

1шт.

33

NSS

NOT SOLD SEPARAT

1шт.

34

84435183

COVER

No Yield Monitor

1шт.

35

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

5шт.

36

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

37

9706755

NUT,M6, Cl 8

5шт.

38

168368

SPACER,13.4mm ID x 25.4mm OD x 11.1mm OAL

2шт.

39

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

40

100038

NUT,M12 x 1.75, Cl 8

2шт.

41

86548970

FLANGED BEARING

2шт.
