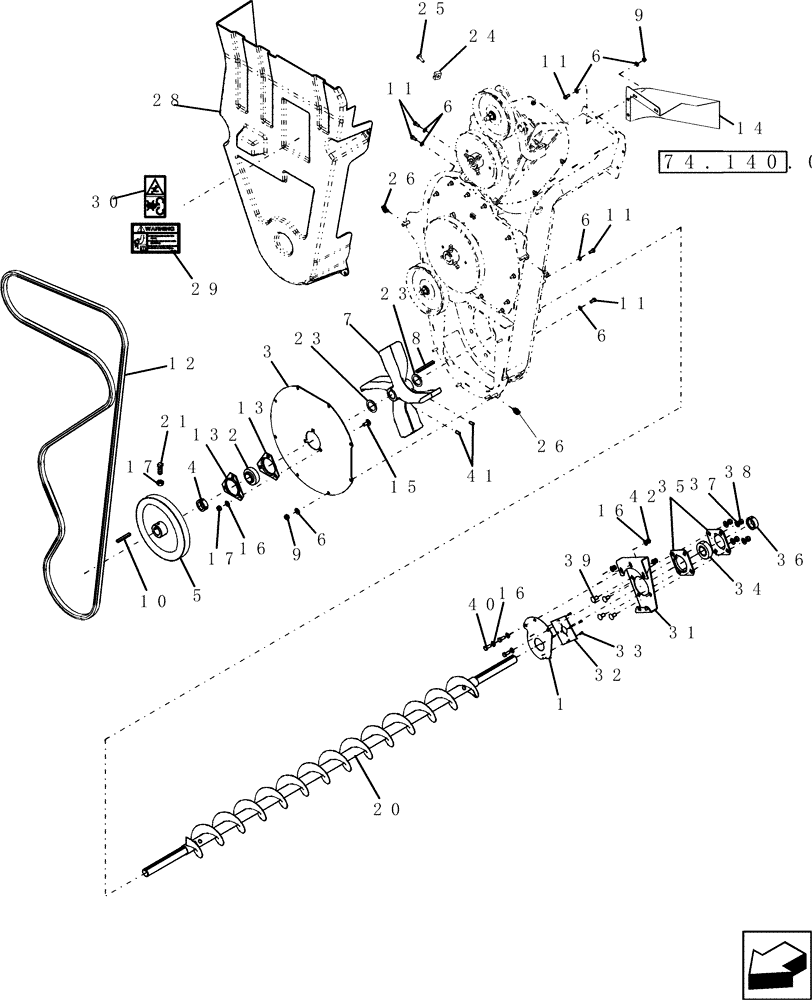

Запчасти Case IH 7010 (74.140.09[01]) - TAILINGS DRIVE AND AUGER - 7010/8010 (74) - CLEANING

1

87574415

COVER

Bracket, L.H., Tailings Bearing Mount

1шт.

2

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

3

87109655

PLATE

Bearing Cover, Tailings Processor

1шт.

3

87736618

DOOR ASSY.

Plate, Bearing Cover, Tailings Processor

1шт.

Extended Wear

1шт.

4/08 & After

1шт.

4

86997053

COLLAR

1шт.

5

87282789

PULLEY,299.9mm OD

Driven, Tailings - Includes (3) Ref 17 & (3) Ref 21

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

31шт.

7

87542137

BLOWER

Machined Impeller

1шт.

7

87549450

BLOWER

Coated

1шт.

Extended Wear

1шт.

8

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

14шт.

10

86996914

KEY

Retaining, M10 x 8 x 75

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

12

87283139

V-BELT,4622.8mm Nominal Length

Tailings Processor, HCC

1шт.

13

86620026

FLANGED BEARING

2шт.

14

87339975

DEFLECTOR

1шт.

14

87735231

DEFLECTOR

1шт.

Extended Wear

1шт.

4/08 & After

1шт.

15

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

17

100016

NUT,M10 x 1.5, Cl 8

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

20

87573645

AUGER

Std Wear

1шт.

8010 Only

1шт.

20

87730185

AUGER

Extended Wear

1шт.

8010 Only

1шт.

20

87573646

AUGER

Std Wear

1шт.

7010 Only

1шт.

20

87730183

AUGER

Extended Wear

1шт.

7010 Only

1шт.

21

393599

SET SCREW,M10 x 25mm, Cl 12.9

1шт.

23

87109160

SHIM,35.5mm ID x 58mm OD x 2.18mm Thk

2шт.

25

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

26

87109290

LOCK PIN,25.4mm OD x 30mm L

3шт.

28

87109865

SHIELD

Includes Refs 29 & 30

1шт.

29

86626958

WARNING DECAL

English

1шт.

30

84004734

WARNING DECAL

Safety

1шт.

31

87542571

SUPPORT

1шт.

32

87528798

SEAL

1шт.

33

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

4шт.

34

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

1шт.

35

86974037

FLANGE

2шт.

36

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

1шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

38

337475

NUT,M12, Cl 10

4шт.

39

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

40

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

41

84814918

SET SCREW,M8 x 12mm, Cl 8.8

2шт.

42

86500689

NUT,M10 x 1.5, Cl 10

3шт.
