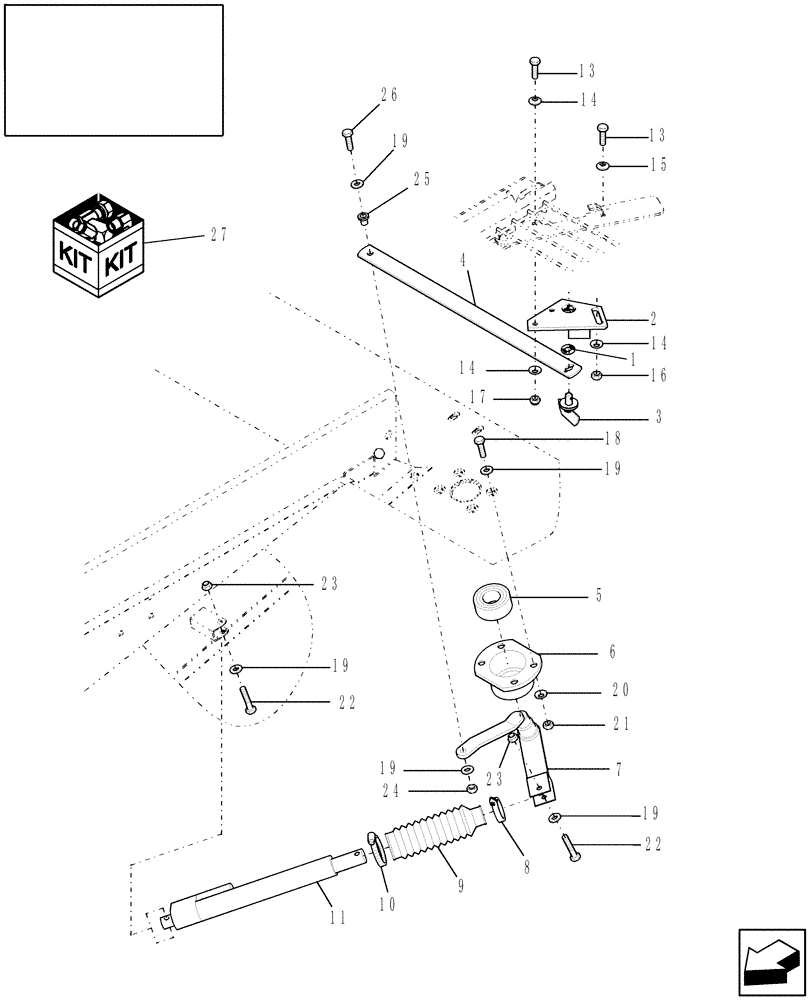

Запчасти Case IH 7010 (74.118.04[01]) - REMOTE LOWER SIEVE ADJUSTMENT - 7010 (74) - CLEANING

1

9514605

LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk

1шт.

2

84053677

PLATE

1шт.

3

9831581

LOCK

2шт.

4

87011102

LEVER

2шт.

5

NLS

NO LONGER SERVICED

1шт.

6

87526988

HOUSING

Flange

1шт.

7

87011804

LEVER

1шт.

8

326082

CLAMP,18mm - 25mm

1шт.

9

84053431

BELLOWS

1шт.

10

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

11

87347281

ACTUATOR

1шт.

11

84335407R

REMAN-ELECTRIC MOTOR

1шт.

11

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

14

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

16

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

1шт.

18

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

19

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

21

9706690

NUT,M8 x 1.25, Cl 8

4шт.

22

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

23

280129

NUT,1/4"-20

2шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

25

133246

BUSHING,8mm ID x 17.53mm OD x 7.26mm L

1шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

27

84084337

DIA KIT, HARVESTER

Remote Chaffer Adjustment; Includes: Refs 1 Thru 26

1шт.
