Запчасти Case IH 7010 (74.114.01[01]) - UPPER SIEVES - 7010 (74) - CLEANING

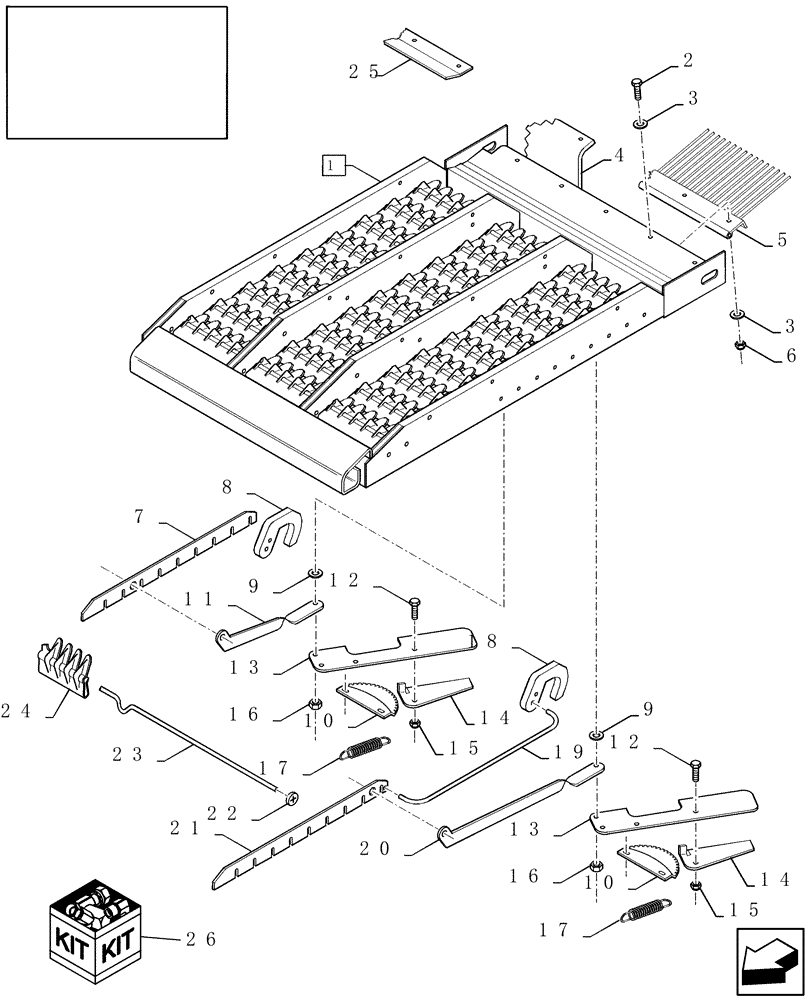

Схема запчастей Case IH 7010 - (74.114.01[01]) - UPPER SIEVES - 7010 (74) - CLEANING
25
18
6
19
14
13
12
23
22
20
12
5
16
4
21
8
2
15
24
14
3
10
10
15
9
3
26
7
17
16
9
1
13
17
11

Артикул

Название

Примечание

Количество

1

87109828

SIEVE

1-1/8" (7 Thru 9, 11 Thru 24)

1шт.

Part Is Not Remote Ready; Refer To Ref 26

1шт.

1

87109832

SIEVE

Corn, Serial Range: 1-5/8"(7-24)

1шт.

Part Is Not Remote Ready; Refer To Ref 26

1шт.

1

87109840

SIEVE

Peterson 1-1/8", Serial Range: (7-24)

1шт.

Part Is Not Remote Ready; Refer To Ref 26

1шт.

1

87109836

SIEVE

CLOSZ, 1-5/8" (7 Thru 9, 11 Thru 24)

1шт.

Part Is Not Remote Ready; Refer To Ref 26

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

3

412653

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

4

84446197

CANVAS,300mm W x 1306mm L

1-5/8", Corn, Man

1шт.

5

84100963

RAKE

1шт.

6

9706755

NUT,M6, Cl 8

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Adjusting

1шт.

8

84056254

INDICATOR

1шт.

For 1-1/8" Sieve Only

1шт.

8

84056253

INDICATOR

1шт.

For 1-5/8" Sieve Only

1шт.

9

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

10

426565

QUADRANT

2шт.

Welded

1шт.

11

87280884

HANDLE

1шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

13

87109910

HANDLE

2шт.

14

432187

HANDLE

2шт.

15

353308

NUT,M6 x 1.0, Cl 8

2шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

Prevailing Torque

2шт.

17

449942

SPRING

2шт.

18

84056802

INDICATOR

1шт.

For 1-1/8" Sieve Only

1шт.

19

84056247

ROD

1шт.

For 1-1/8" Sieve Only

1шт.

20

87280882

HANDLE

1шт.

For 1-1/8" Sieve Only

1шт.

21

NSS

NOT SOLD SEPARAT

Plate, Adjusting

1шт.

22

398561

CLIP

6шт.

23

NSS

NOT SOLD SEPARAT

Wire, Retaining

1шт.

24

NSS

NOT SOLD SEPARAT

Slat

1шт.

25

84100992

PLATE

1шт.

26

84084985

SIEVE

Kit; Includes: Refs 1 (87109828) And 5, Plus Adjusting Parts & Hardware

1шт.

26

84084662

DIA KIT, HARVESTER

Includes: Refs 1 (87109832), 4, And 5, Plus Adjusting Parts & Hardware

1шт.

26

84084982

SIEVE

Kit; Includes: Refs 1 (87109840), 4, And 5, Plus Adjusting Parts & Hardware

1шт.

26

84084323

DIA KIT, HARVESTER

Includes: Refs 1 (87109836) And 5, Plus Adjusting Parts & Hardware

1шт.

Выбрано товаров: 44
