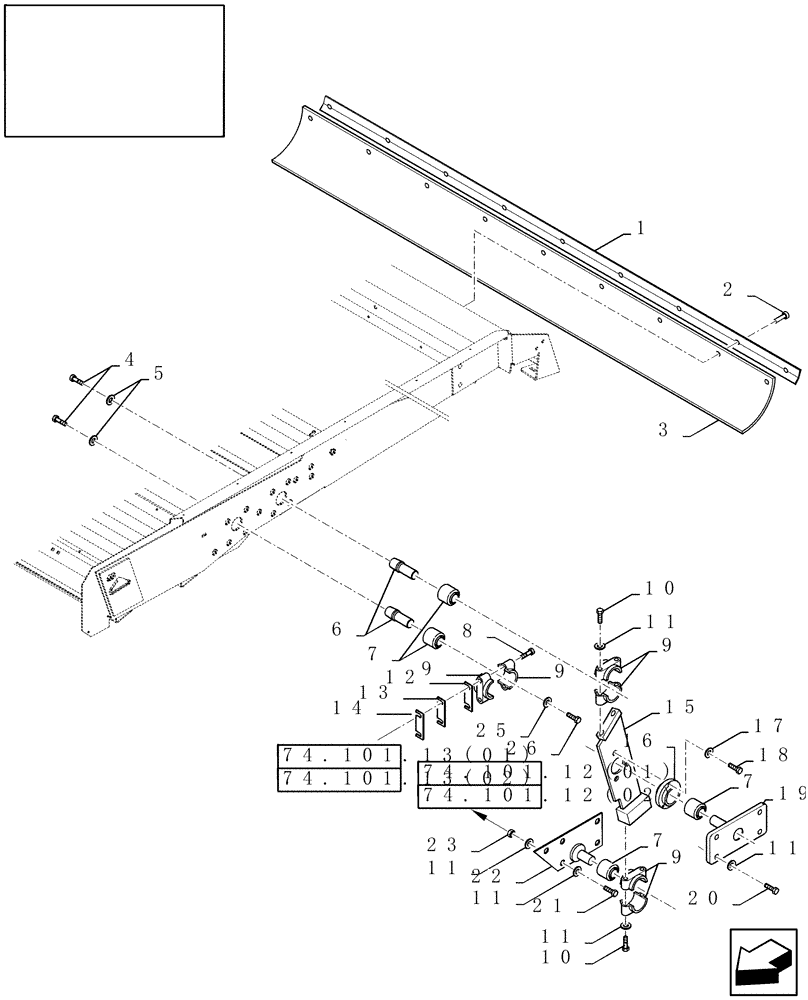

Запчасти Case IH 7010 (74.101.15[01]) - UPPER SHOE DRIVE, L.H. - 7010/8010 (74) - CLEANING

1

84989486

STRIP

1шт.

2

80445395

RIVET,Pop, M4.8 x 18.1

1шт.

3

87318656

SEAL,135mm W x 1570mm OAL

1шт.

4

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

2шт.

5

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

6

84037184

SHAFT,33mm OD x 96mm L

4шт.

7

442446

RUBBER BUSHING,28mm ID x 52mm OD x 54mm L

4шт.

8

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

9

84446877

BEARING HOUSING

6шт.

10

80300810

BOLT,M12 x 1.75 x 85mm, Cl 8.8

4шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

12

445474

SHIM,30mm OD x 0.68mm Thk

0.5MM

1шт.

13

445473

SHIM,30mm OD x 0.99mm Thk

1MM

1шт.

14

445472

PLATE

1шт.

15

87314571

ARM

L.H.

1шт.

16

9811082

BUSHING,52mm ID

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

18

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

3шт.

19

84320470

SUPPORT

L.H.

1шт.

20

43154

SEALING RING COLLAR

M12 x 40, 8.8

4шт.

21

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

22

84334452

SUPPORT

1шт.

23

9706685

NUT,M12 x 1.75, Cl 8

5шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

26

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.
