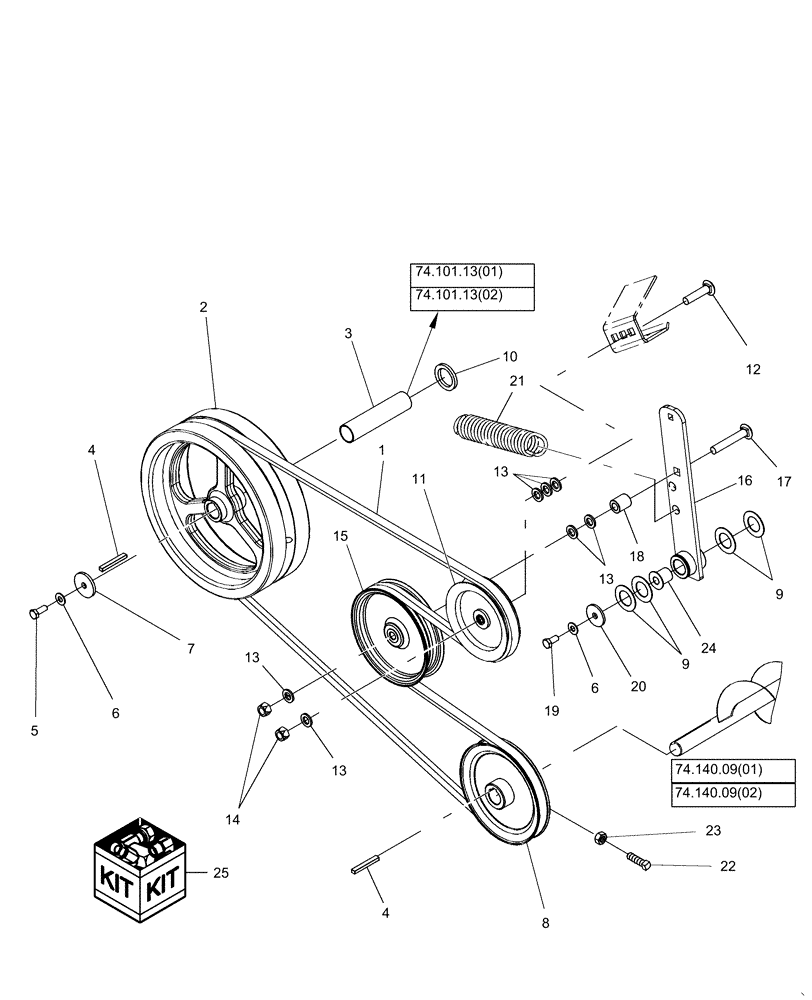

Запчасти Case IH 7010 (74.101.10[01]) - SHOE DRIVE - 7010/8010 (74) - CLEANING

1

87317063

V-BELT,3651mm Nominal Length x 22.33mm W

Drive

1шт.

2

86996714

PULLEY,346.5mm Idler Dia x 382.2mm OD

Shaker Flywheel

1шт.

3

87545449

SPACER

Shaker Shaft

1шт.

4

86996914

KEY

M10 x 8 x 75

2шт.

5

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

7

87023036

WASHER,0.53" ID x 2" OD x 0.25" Thk

1шт.

8

87313372

PULLEY,203.5mm OD

205mm OD, 1 HC, Includes: Refs 22 & 23

1шт.

9

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

4шт.

10

9832773

SPACER,36mm ID x 55mm OD x 7mm L

1шт.

11

87499861

IDLER,185.67mm OD

Idler

1шт.

Service Pulley Has a Thicker Hub Than Production; If Replacing Original Part, Must Remove Two Washers, Ref 13

1шт.

12

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

1шт.

13

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

7/5шт.

14

86512555

NUT,M16 x 2, Cl 10

2шт.

15

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

16

87283323

ARM

Shaker Pivot Idler - Includes: Ref 24

1шт.

17

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

1шт.

18

86999741

SPACER,16.5mm ID x 30mm OD x 35mm L

Shaker Pivot Idler

1шт.

19

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

20

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

1шт.

21

86980549

SPRING

Shaker Pivot Idler

1шт.

22

393599

SET SCREW,M10 x 25mm, Cl 12.9

3шт.

23

100016

NUT,M10 x 1.5, Cl 8

3шт.

24

86996520

BUSHING

1шт.

25

NLS

NO LONGER SERVICED

Kit Is No Longer Serviced

1шт.
