(66.350.05[01]) - KIT, GRATE COVER, BEATER DISCHARGE - PRIOR TO PIN HAJ202001 - 7010/8010

Запчасти Case IH 7010 (66.350.05[01]) - KIT, GRATE COVER, BEATER DISCHARGE - PRIOR TO PIN HAJ202001 - 7010/8010 (66) - THRESHING

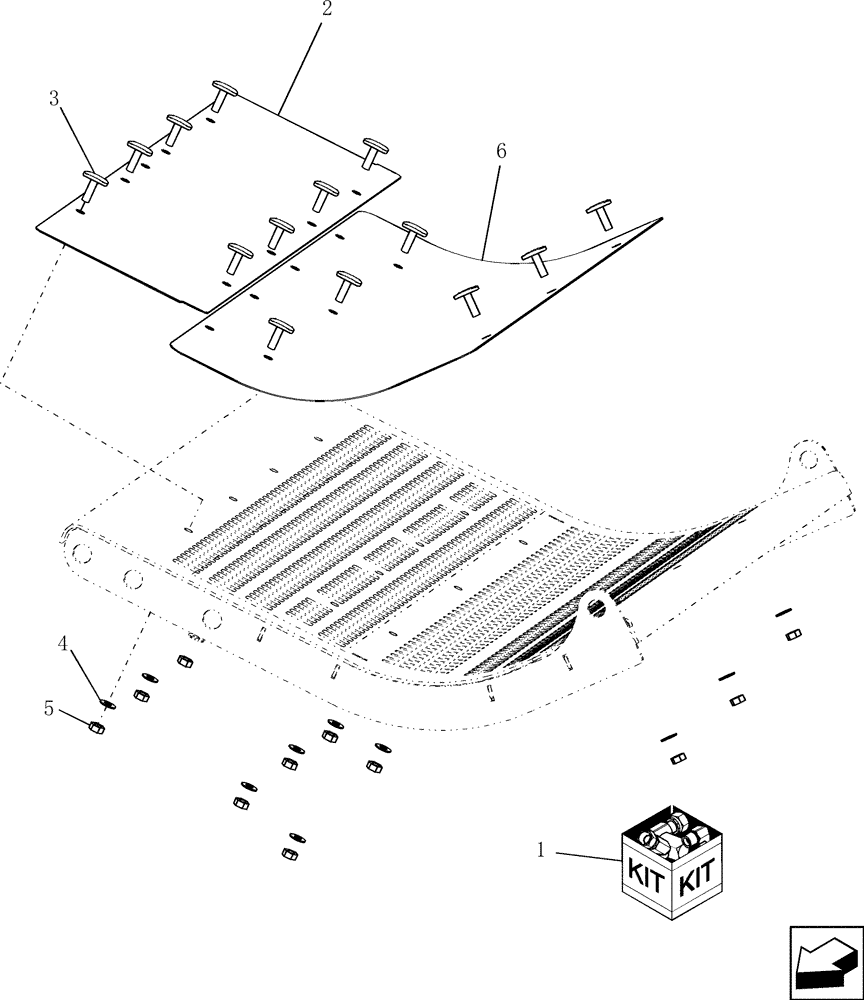

Схема запчастей Case IH 7010 - (66.350.05[01]) - KIT, GRATE COVER, BEATER DISCHARGE - PRIOR TO PIN HAJ202001 - 7010/8010 (66) - THRESHING
2
5
1
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84083460

DIA KIT, HARVESTER

Includes: Refs 2 Thru 6

1шт.

2

87282780

COVER PLATE

Front

1шт.

3

87106338

BOLT

14шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

5

100016

NUT,M10 x 1.5, Cl 8

14шт.

6

87282778

COVER

1шт.
