Запчасти Case IH 7010 (60.110.06[01]) - FEEDER FLOOR AND CHAINS - WITHOUT ROCK TRAP - 7010/8010 (Apr 30 2010 1:33PM) (60) - PRODUCT FEEDING

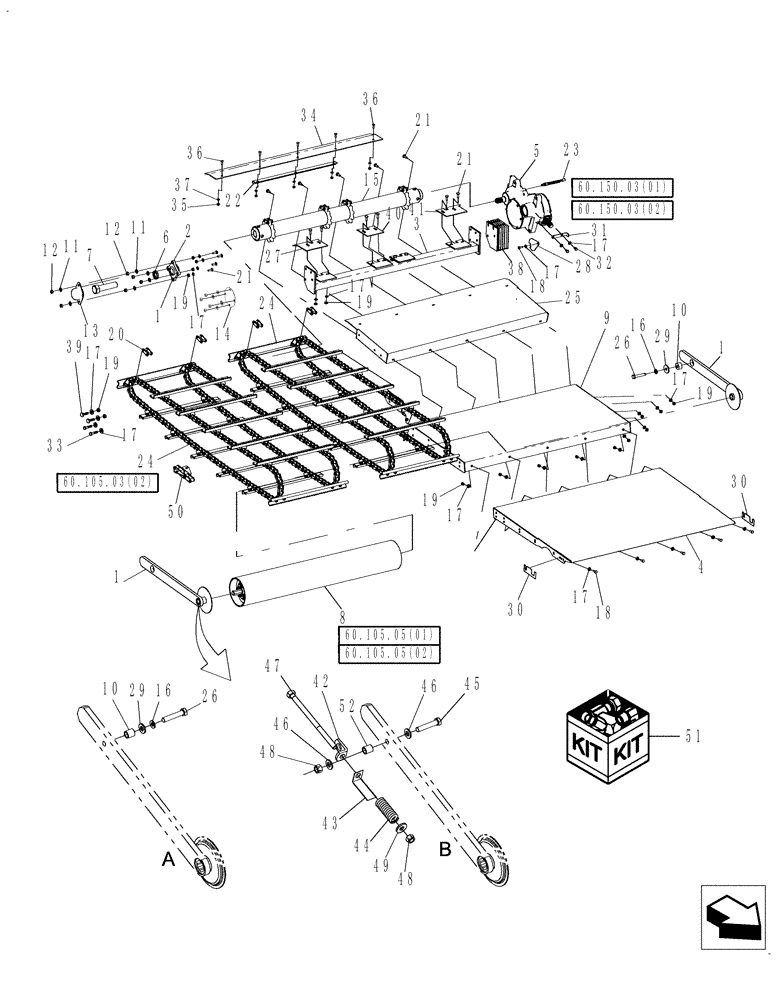

Схема запчастей Case IH 7010 - (60.110.06[01]) - FEEDER FLOOR AND CHAINS - WITHOUT ROCK TRAP - 7010/8010 (Apr 30 2010 1:33PM) (60) - PRODUCT FEEDING
17
29
52
13
1
30
19
1
17
41
18
33
21
60.105.05(02)
50
24
7
18
9
34
12
60.150.03(01)
4
36
17
20
21
17
19
32
48
48
24
43
45
-
49
25
19
39
3
15
46
47
1
51
22
2
60.150.03(02)
26
60.105.03(02)
60.105.05(01)
29
28
17
5
11
36
40
38
21
10
35
17
23
11
46
10
19
17
42
14
12
17
26
27
37
16
16
17
30
44
31
6
8
19
-

Артикул

Название

Примечание

Количество

1

87282449

ARM

, Start Serial: HAJ202001

2шт.

1

87660200

ARM ASSY.

, Serial Range: -HAJ202001

2шт.

2

86995212

BEARING ASSY

1шт.

3

87385031

SUPPORT

1шт.

4

87393958

FLOOR

1шт.

5

87536819

GEARBOX ASSY

1шт.

Has Friction Disc Type Clutch

1шт.

6

86997123

WASHER,40mm ID x 57mm OD x 10mm Thk

1шт.

7

86981357

BOLT,1.5" - 6 UNC STD Thread 17.8mm L

1шт.

8

0C

ORDER COMPONENTS

1шт.

9

87282537

FLOOR

1шт.

9

84084681

DIA KIT, HARVESTER

Perforated Floor; Includes: Instructions

1шт.

10

84157715

TUBE

2шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

12

9706685

NUT,M12 x 1.75, Cl 8

10шт.

13

86996082

COVER

1шт.

14

86995710

COVER

1шт.

15

87283554

SPROCKET

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

18

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

19

100016

NUT,M10 x 1.5, Cl 8

24шт.

20

87283350

LINK,41.4mm Pitch

4шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

17шт.

22

87537644

CHANNEL

1шт.

23

87662555

SENSOR

1шт.

24

87397924

CHAIN,Feeder, 111 Links x 41.4mm = 4636.8mm

Standard

2шт.

24

87283359

ELEVATOR CHAIN

Optional

2шт.

25

87730307

FLOOR

1шт.

27

87384616

PLATE

1шт.

28

87281862

PLATE

1шт.

30

87537643

SHIM,50mm OD x 1.32mm Thk

2шт.

33

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

34

87533210

SEAL

1шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

36

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

38

87385034

SHIM

8шт.

39

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

40

87384612

PLATE

2шт.

41

87384614

PLATE

1шт.

42

84163072

BRACKET

Flat

2шт.

43

84163120

BRACKET

Indicator

2шт.

44

693887

SPRING

Compression

2шт.

45

86577946

BOLT,Hex, M16 x 80mm x 10.9

2шт.

46

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

47

84155550

THREADED ROD

2шт.

48

86000441

NUT,M16 x 2.0, Cl 8

4шт.

49

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

50

87283373

LINK,Chain, 3 Links x 41.4mm = 124.2mm

1шт.

Выбрано товаров: 49
