(55.414.01[01]) - ENGINE SENSORS - 7010

Запчасти Case IH 7010 (55.414.01[01]) - ENGINE SENSORS - 7010 (55) - ELECTRICAL SYSTEMS

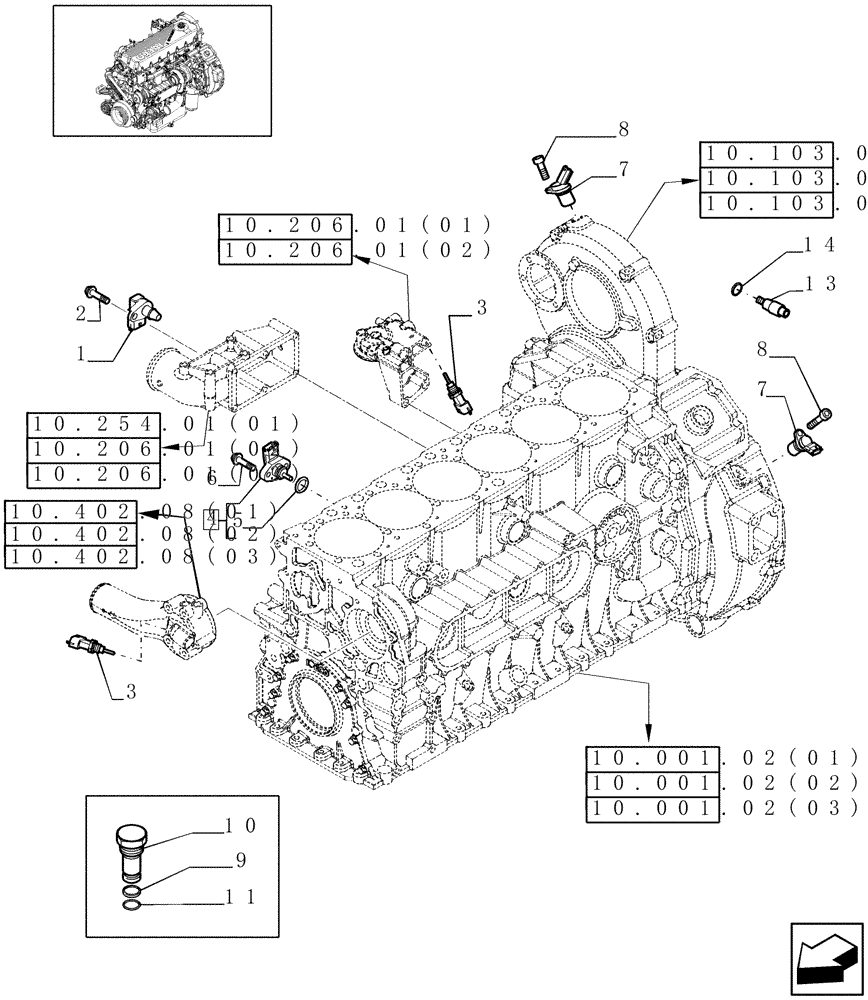

Схема запчастей Case IH 7010 - (55.414.01[01]) - ENGINE SENSORS - 7010 (55) - ELECTRICAL SYSTEMS
10.001.02(02)
10.402.08(02)
10.206.01(02)
10.103.04(01)
9
10.402.08(01)
2
6
14
3
7
11
4
10.206.01(01)
10.103.04(03)
10
8
10.254.01(01)
1
10.402.08(03)
3
8
10.001.02(03)
10.103.04(02)
10.206.01(02)
10.206.01(03)
10.001.02(01)
7
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504073323

SENSOR

Air Temperature / Pressure, 4 Wire

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

1шт.

3

82017881

SENSOR

Coolant Temperature

1шт.

4

4890193

SENSOR

Oil Pressure & Temp

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

7

504096645

TRANSMITTER

2 Wire

2шт.

8

16688925

BOLT,M6 x 10mm

M6 x 10

2шт.

9

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

14 x 22 x 1,5

1шт.

9

500337199

O-RING

1шт.

10

504084571

PLUG

M14 x 1.5

1шт.

10

500337200

PLUG

3/4"

1шт.

11

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

13

500346371

SENSOR

Plugged Fuel Filter

1шт.

14

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 15
