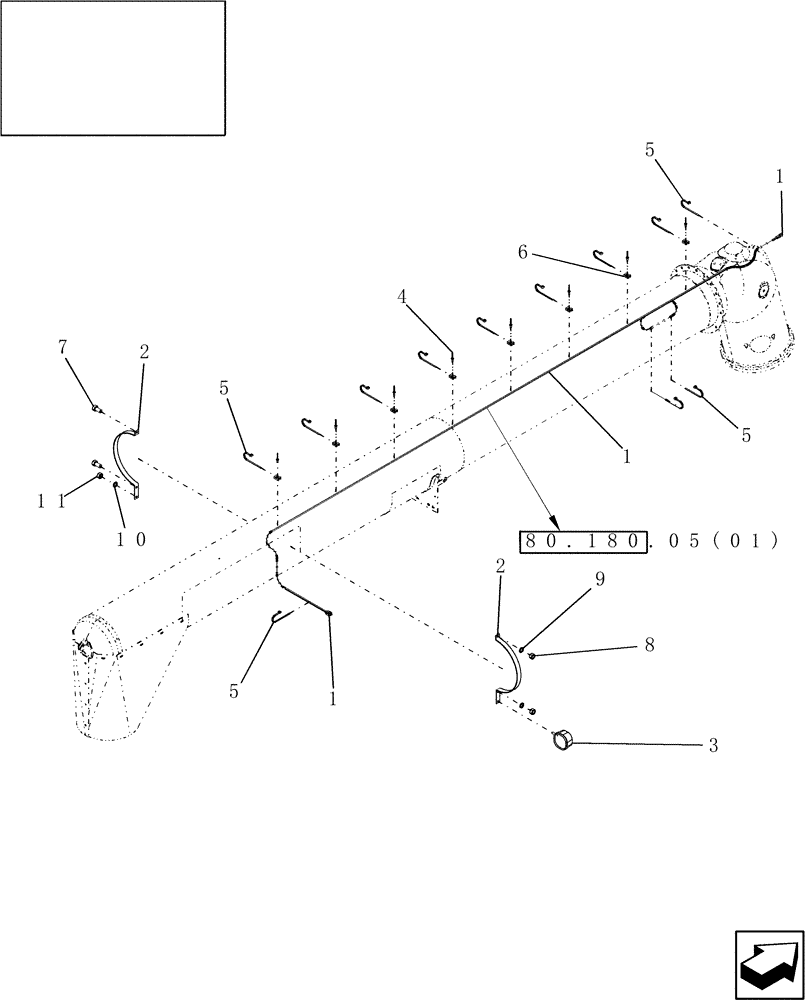

Запчасти Case IH 7010 (55.404.31[01]) - LIGHT, UNLOADING AUGER - 7010/8010 (55) - ELECTRICAL SYSTEMS

1

86900852

WIRE HARNESS

Unloading Auger Light

1шт.

2

87553982

BRACKET

2шт.

3

84067907

WORK LAMP,Halogen, 12V, 37.5W, Clear

1шт.

4

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

5

86566989

CABLE TIE,208mm L

CABLE STRAP

12шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

8шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

100016

NUT,M10 x 1.5, Cl 8

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

9706690

NUT,M8 x 1.25, Cl 8

1шт.
