Запчасти Case IH 7010 (55.404.28) - GRAIN TANK ELECTRICITY (55) - ELECTRICAL SYSTEMS

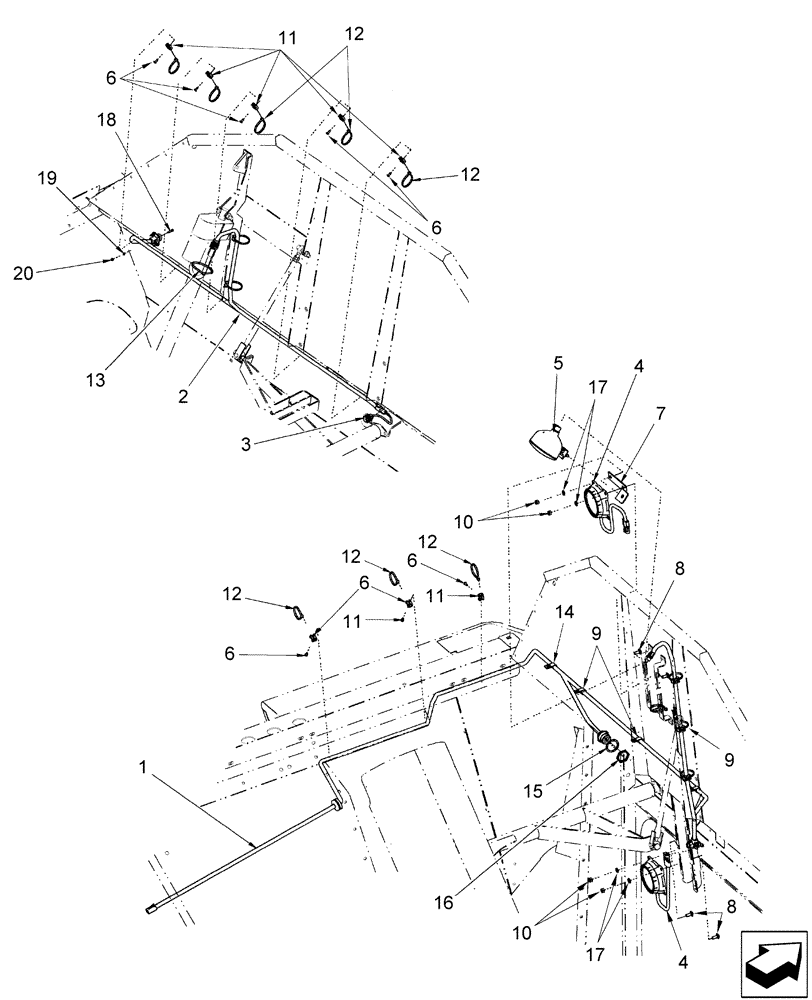

Схема запчастей Case IH 7010 - (55.404.28) - GRAIN TANK ELECTRICITY (55) - ELECTRICAL SYSTEMS
8
6
14
17
6
12
10
20
11
12
8
11
10
1
9
12
6
6
12
7
9
6
12
13
15
18
5
19
3
17
4
11
16
4
2

Артикул

Название

Примечание

Количество

1

87352664

WIRE HARNESS

Grain Tank

1шт.

2

87281626

WIRE HARNESS

Grain Tank Covers (If Equipped)

1шт.

3

87342073

SENSOR

Covers Position

1шт.

4

87532857

SENDER UNIT

Sensor, Full Tank

2шт.

5

87329757

LAMP,Halogen, 12V, 16W, Clear

Includes: Bulb

1шт.

5

87329813

BULB,Halogen, 12.8V, 16W

1шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

13шт.

7

87350863

BRACKET

1шт.

8

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

9

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

11

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

13шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

15шт.

13

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

14

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

15

9861349

LOCK WASHER,38.4mm ID x 47.9mm OD x 1.6mm Thk

1шт.

16

9861348

NUT,1-1/2"-18

1шт.

17

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

18

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

4шт.

19

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

20

385681

NUT,M4 x 0.7, Cl 8

4шт.

Выбрано товаров: 21
