(55.100.30[01]) - WIRE HARNESS, STRAWHOOD - REAR - 7010/8010

Запчасти Case IH 7010 (55.100.30[01]) - WIRE HARNESS, STRAWHOOD - REAR - 7010/8010 (55) - ELECTRICAL SYSTEMS

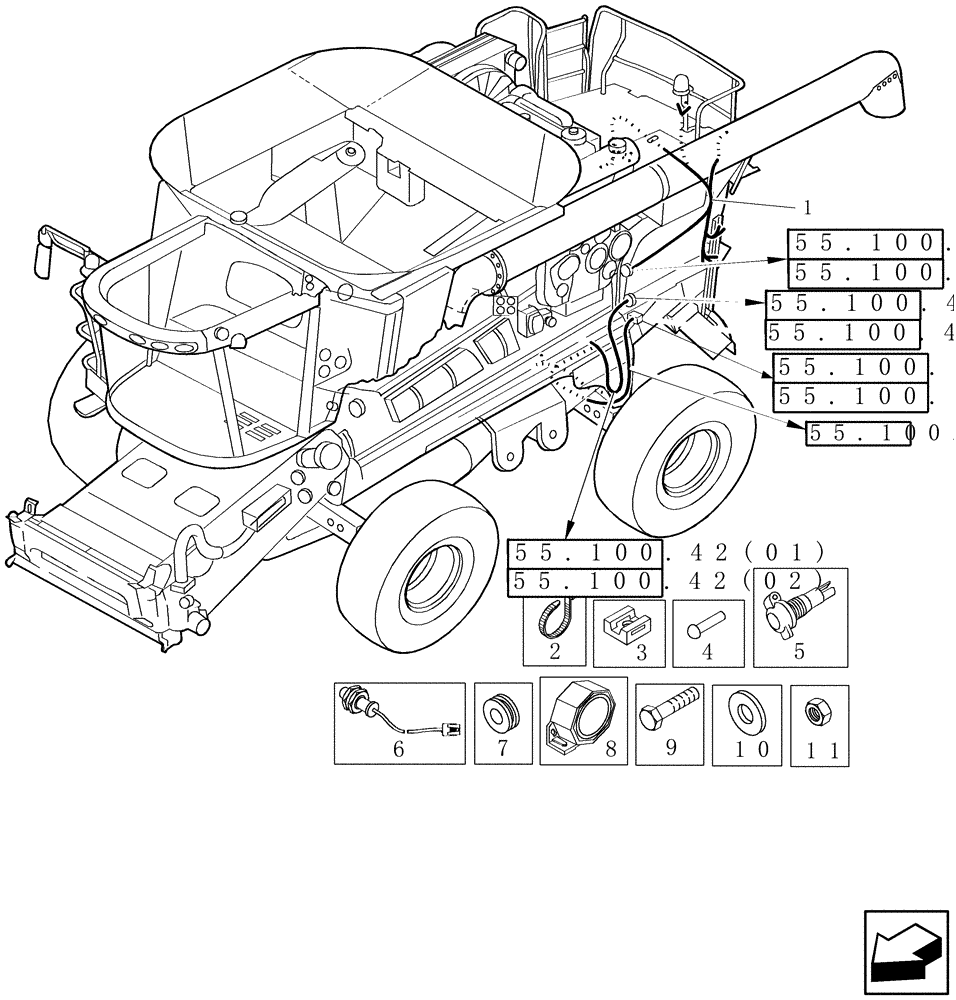

Схема запчастей Case IH 7010 - (55.100.30[01]) - WIRE HARNESS, STRAWHOOD - REAR - 7010/8010 (55) - ELECTRICAL SYSTEMS
4
55.100.03
8
55.100.31(02)
11
55.100.42(02)
5
55.100.42(01)
55.100.31(01)
55.100.42(01)
55.100.17(01)
55.100.17(01)
7
9
3
1
10
55.100.42(02)
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87281629

WIRE HARNESS

Strawhood, Rear

1шт.

2

86566989

CABLE TIE,208mm L

CABLE STRAP 7.5"

1шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

4

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

5

82002966

POWER SOCKET,M18 x 1

Auxiliary

1шт.

6

84058863

SENSOR

Unloader Tube Position

1шт.

7

103258

GROMMET,5/8" ID x 7/8" Groove Dia

Ladder Sensor

1шт.

8

87010223

BUZZER

Back-Up Alarm

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

Выбрано товаров: 11
