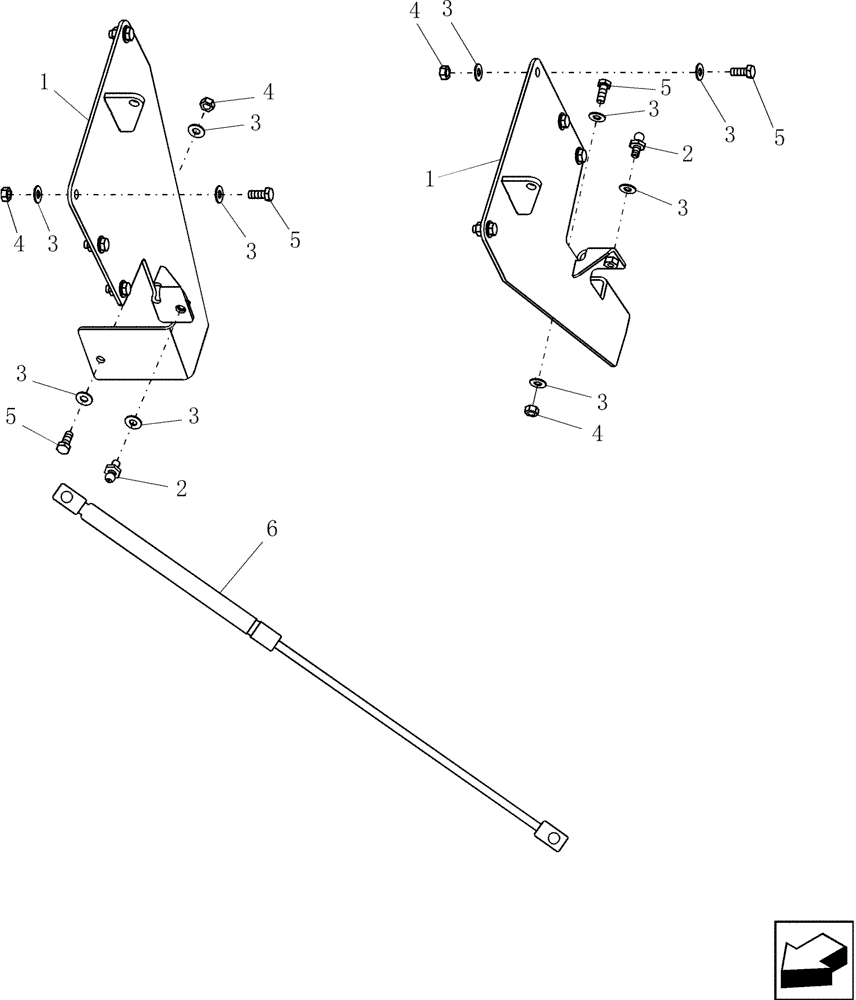

Запчасти Case IH 7010 (39.100.06) - BRACKETS, SUPPORTING - FRONT (39) - FRAMES AND BALLASTING

1

87553550

BRACKET

L.H., Front, Supporting

1шт.

1

87553562

BRACKET

R.H., Front, Supporting

1шт.

2

86634307

STUD

Ball

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

22шт.

4

9706690

NUT,M8 x 1.25, Cl 8

10шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

6

87108532

STRUT

600N

2шт.
