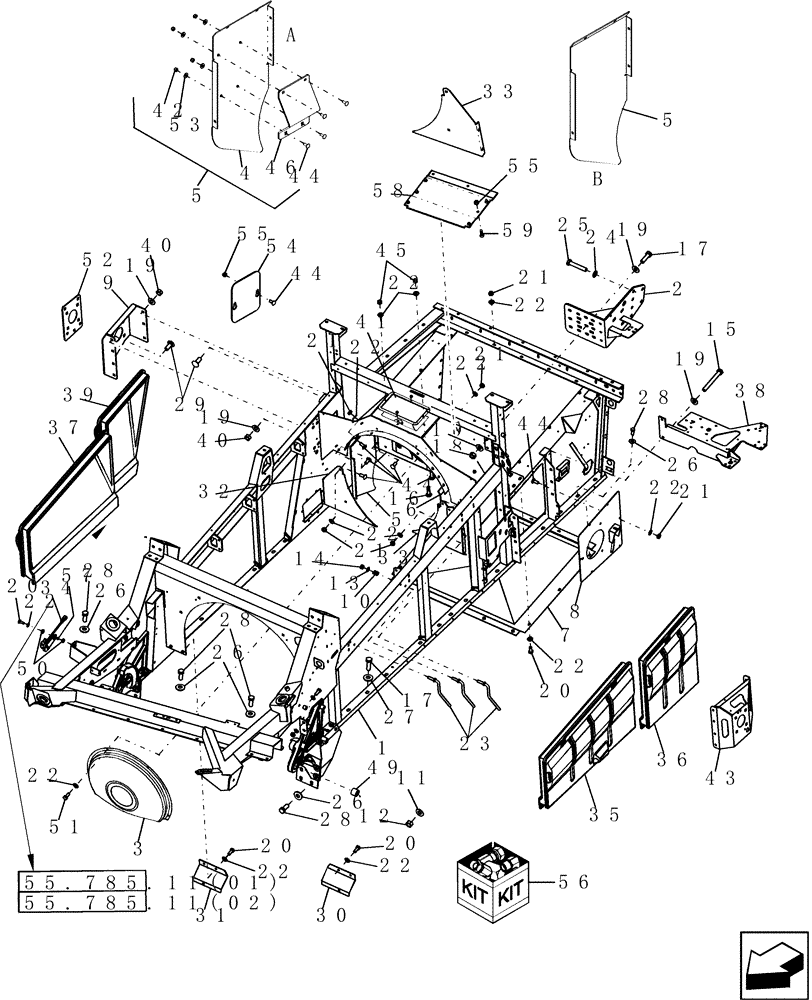

Запчасти Case IH 7010 (39.100.05[02]) - FRAME, THRESHING - 9010 (39) - FRAMES AND BALLASTING

1

87324600

FRAME

1шт.

2

87579208

PLATE

1шт.

3

87106513

CONE

1шт.

4

87550492

BULKHEAD

Deflector, RH

1шт.

5

0C

ORDER COMPONENTS

R.H.

1шт.

Standard

1шт.

5

87107510

DEFLECTOR

1шт.

Optional

1шт.

6

87107511

DEFLECTOR

L.H.

1шт.

7

87109397

ACCESS COVER

1шт.

8

87687319

COVER ASSY

Plate

1шт.

Part Has Eight Small Circular Holes, And One Square Hole About The Perimeter

1шт.

9

87282803

BRACKET

1шт.

10

87281904

SPRING

6шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

12

825-1416

NUT,M16, Cl 8

4шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

15

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

16

87024996

BOLT

Carriage, Short Neck, CL 8.8, M8 x 40

4шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

38шт.

18

9706685

NUT,M12 x 1.75, Cl 8

14шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

42шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

27шт.

21

9706690

NUT,M8 x 1.25, Cl 8

31шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

23

87106461

HANDLE

Access Door

6шт.

24

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

25

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

6шт.

26

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

27

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

26шт.

28

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

20шт.

29

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

14шт.

30

87518111

COVER

L.H.

1шт.

31

87516812

COVER

R.H.

1шт.

32

87107515

PLATE

R.H.

1шт.

33

87107513

PLATE

L.H.

1шт.

34

0C

ORDER COMPONENTS

Sensor

1шт.

35

87000990

DOOR

Rotor, L.H., Front

1шт.

36

86975027

DOOR

Rotor, L.H., Rear

1шт.

37

87000991

DOOR

Rotor, R.H., Front

1шт.

38

87109087

BRACKET

1шт.

39

86975029

DOOR

Rotor, R.H., Rear

1шт.

40

337475

NUT,M12, Cl 10

14шт.

41

87282112

COVER

1шт.

42

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

43

87316122

BRACKET

Mounting, L.H.

1шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

45

43362

NUT,M8 x 1.25, Cl 10

2шт.

46

87550493

DEFLECTOR

R.H.

1шт.

47

140041

WASHER,M8 x 28mm OD x 3mm Thk

1шт.

48

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

1шт.

49

87280254

BUSHING,44.62mm ID x 50.86mm OD x 30mm L

2шт.

50

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

51

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

52

87282128

BRACKET

1шт.

53

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

54

87553981

COVER PLATE

1шт.

55

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2/8шт.

56

87580123

REPAIR KIT

Frame, Includes: RH Front Steering Tube (87536500), LH Front Steering Tube, Support (431941, Plate (434097), Clamp (430357), Plus Hardware

1шт.

Welding Required; When Ordering, Must Provide Certified Welder's Name & Certification

1шт.

Along With This Kit, Frame Components 87399082, 87518958, 87518959, & 87518960 Must Also Be Ordered To Complete The Repair

1шт.

57

87662443

SPACER

1шт.

58

87685701

COVER ASSY

Plate

1шт.

59

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.
