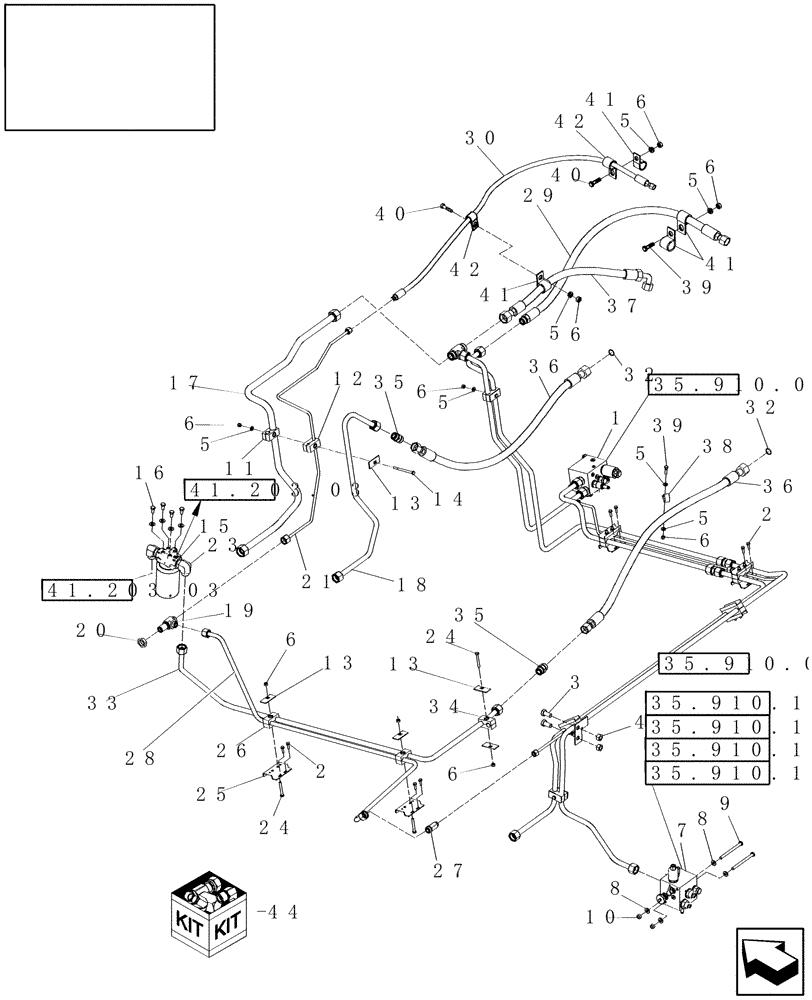

Запчасти Case IH 7010 (35.752.03[04]) - HYDRAULICS, SPREADER AND ROTARY SCREEN DRIVE - FROM PIN HAJ202001 - 8010 (35) - HYDRAULIC SYSTEMS

1

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

2

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

8шт.

3

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

4

100020

NUT,M16 x 2.0, Cl 8

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

7

87619388

HYDRAULIC VALVE

Spreader

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

9

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

2шт.

10

100016

NUT,M10 x 1.5, Cl 8

2шт.

11

87000146

CLAMP

1шт.

12

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

13

87000230

PLATE

7шт.

14

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

15

86998689

HYDRAULIC OIL FILTER

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

87000875

HYD TUBE,1" OD

Auxiliary Cooler Return

1шт.

18

87563492

HYD TUBE,0.75" OD

Main Cooler Outlet

1шт.

19

86639081

TEE,1"-14 ORFS, Bulkhead

1шт.

Also Included In Kit 87721403

1шт.

20

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

Also Included In Kit 87721403

1шт.

21

87522515

HYD TUBE,0.375" OD

Drain

1шт.

Also Included In Kit 87721403

1шт.

22

87000142

CLAMP,2 Hoses

1шт.

23

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

24

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

25

87109755

BRACKET

2шт.

26

87000144

CLAMP

2шт.

27

87109744

FITTING

1шт.

28

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Drain, Bulkhead To Tee

1шт.

29

87529196

FLEXIBLE HOSE

Spreader To Air Screen Motor

1шт.

Also Included In Kit 87721403

1шт.

30

87529198

FLEXIBLE HOSE

Air Screen Case Drain

1шт.

Also Included In Kit 87721403

1шт.

31

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

33

87563491

HYD TUBE,0.75" OD

Main Cooler Inlet

1шт.

34

87000140

CLAMP,Tube, 19.05mm

1шт.

35

84100407

UNION,1-3/16"-12 ORFS

2шт.

36

87397348

HOSE ASSY.

Main Cooler; L = 1048mm

2шт.

37

87105715

FLEXIBLE HOSE

Auxiliary Cooler Return

1шт.

38

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

39

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

40

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

41

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

42

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

43

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

44

84181355

SERVICE KIT

Single Plane Upgrade, Includes: Refs 5, 6, 13, 18, 19, 22 Thru 24, 26, 28, & 32 Thru 42

1шт.
