Запчасти Case IH 7010 (35.480.05) - HYDRAULICS - FEEDER STACK VALVE (35) - HYDRAULIC SYSTEMS

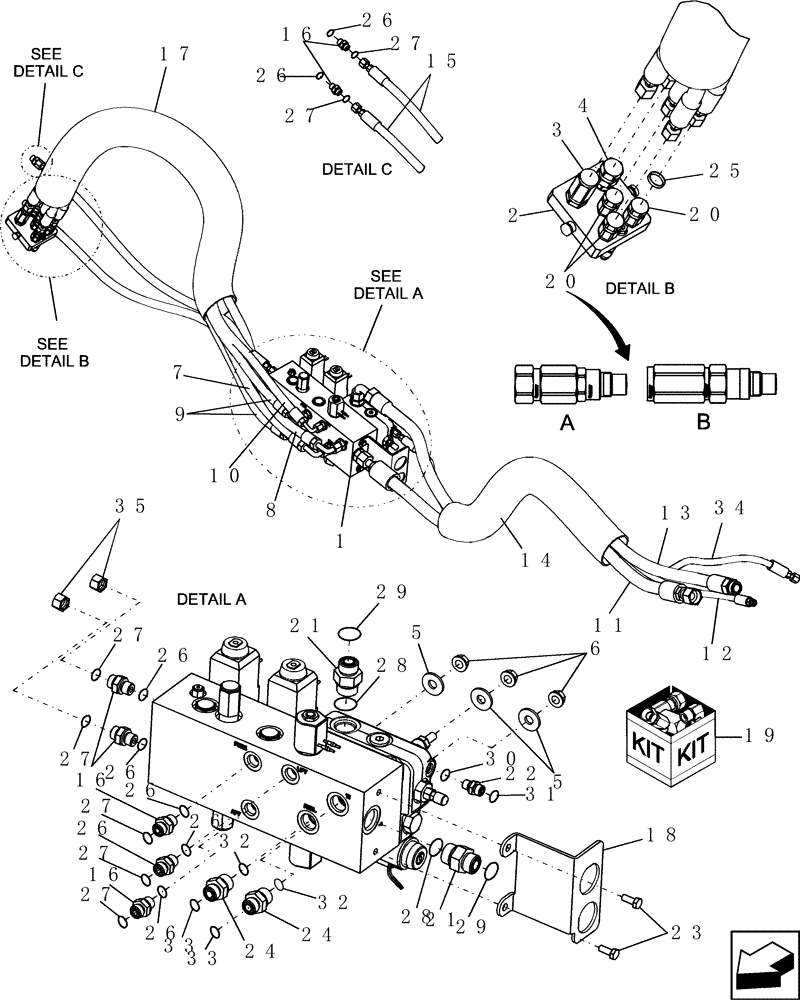

Схема запчастей Case IH 7010 - (35.480.05) - HYDRAULICS - FEEDER STACK VALVE (35) - HYDRAULIC SYSTEMS
9
20
21
12
27
24
16
27
27
8
3
26
33
35
26
14
26
26
29
19
16
11
29
7
6
26
26
1
27
4
32
33
2
21
27
32
31
26
25
20
27
24
34
16
27
15
22
28
5
17
28
5
13
18
30
26
23
10

Артикул

Название

Примечание

Количество

1

87109742

HYDRAULIC VALVE

W/Lateral Tilt

1шт.

1

87109740

HYDRAULIC VALVE

L/Lateral Tilt

1шт.

2

84435010

QUICK MALE COUPLING

1шт.

Prior To PIN HAJ203390

1шт.

2

87721868

QUICK MALE COUPLING

1шт.

PIN HAJ203390 & After

1шт.

3

84435502

HYD CONNECTOR

Quick Coupling

1шт.

4

84435503

HYD CONNECTOR

Quick Coupling

1шт.

5

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

3шт.

6

43435

FLANGE NUT,Hex, M10 x 1.5

3шт.

7

87109346

HOSE,13mm ID x 1845mm L

Reel Pressure

1шт.

8

87109347

HOSE,13mm ID x 1905mm L

Reel Return

1шт.

9

87109349

HOSE,10mm ID x 1765mm L

Reel - Fore & Aft

2шт.

10

87109348

HOSE,10mm ID x 1830mm L

Reel Lift

1шт.

11

87281674

HOSE,19mm ID x 1380mm L

Feeder Stack Return

1шт.

12

87109105

HOSE

Feeder Stack LS

1шт.

13

87280151

HOSE,19mm ID x 1530mm L

Feeder Stack Pressure

1шт.

14

87106239

SLEEVE

1шт.

15

87109107

HOSE

With Lateral - Tilt

2шт.

Not Used W/Hillco Feeder

1шт.

16

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

7шт.

17

87106154

SLEEVE

1шт.

18

86997309

BRACKET

1шт.

19

86623900

REPAIR KIT

Aligning Pins and Bolts, For Ref 2

1шт.

20

84435504

HYD CONNECTOR

Component Of 84435010

3шт.

Prior To PIN HAJ203390

1шт.

20

87691267

COUPLING

Connector, Hydraulic; Component Of 87721868

3шт.

PIN HAJ203390 & After

1шт.

21

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

2шт.

22

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

25

86623898

SEAL,1mm OD x 3.2mm Thk

For Refs 3 & 4

2шт.

25

86623899

SEAL KIT,13mm OD x 2.5mm Thk

For Ref 20

3шт.

26

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

7шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

28

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

31

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

32

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

33

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

34

87280152

HOSE,6mm ID x 2030mm L

Feeder Stack, Regulated

1шт.

35

9625546

CAP,11/16" - 16 ORFS

2шт.

Used In Place Of Ref 15 W/Hillco Feeder

1шт.

Выбрано товаров: 45
