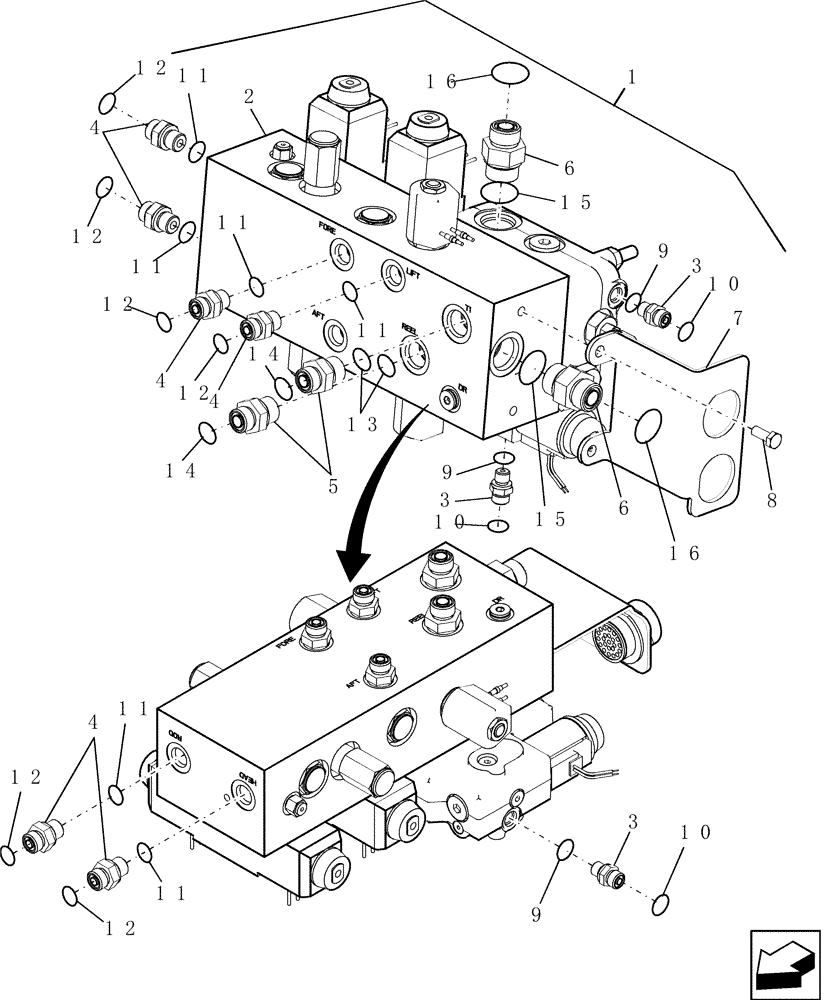

Запчасти Case IH 7010 (35.480.02) - CONNECTORS, VALVE, FEEDER STACK - W/LATERAL TILT (35) - HYDRAULIC SYSTEMS

1

87109743

HYDRAULIC VALVE

Feeder Stack - With Lateral Tilt - Includes: Refs 2 - 9

1шт.

2

87109742

HYDRAULIC VALVE

1шт.

3

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

3шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

6шт.

5

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

6

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

2шт.

7

86997309

BRACKET

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

9

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

3шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

6шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
