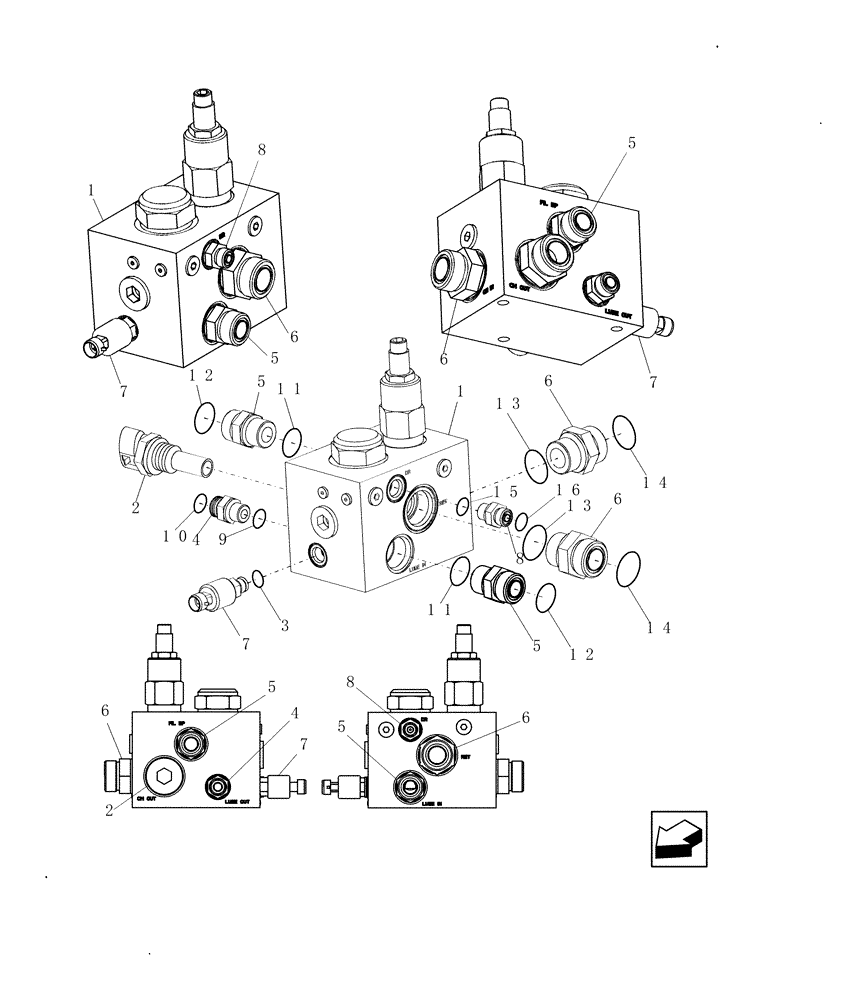

Запчасти Case IH 7010 (35.300.13) - VALVE, HYDRAULIC PTO/CHARGE REGULATOR - CONNECTORS (35) - HYDRAULIC SYSTEMS

1

87645690

VALVE

Less Fittings

1шт.

2

87693034

SENSOR

Hyd PTO/Charge Regulator Valve

1шт.

3

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

5

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

6

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

2шт.

7

87280944

PRESSURE SWITCH

Lube Pressure

1шт.

8

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

13

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

14

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
