Запчасти Case IH 7010 (33.110.03) - HYDRAULIC TUBES - PARK VALVE - 9010 (33) - BRAKES & CONTROLS

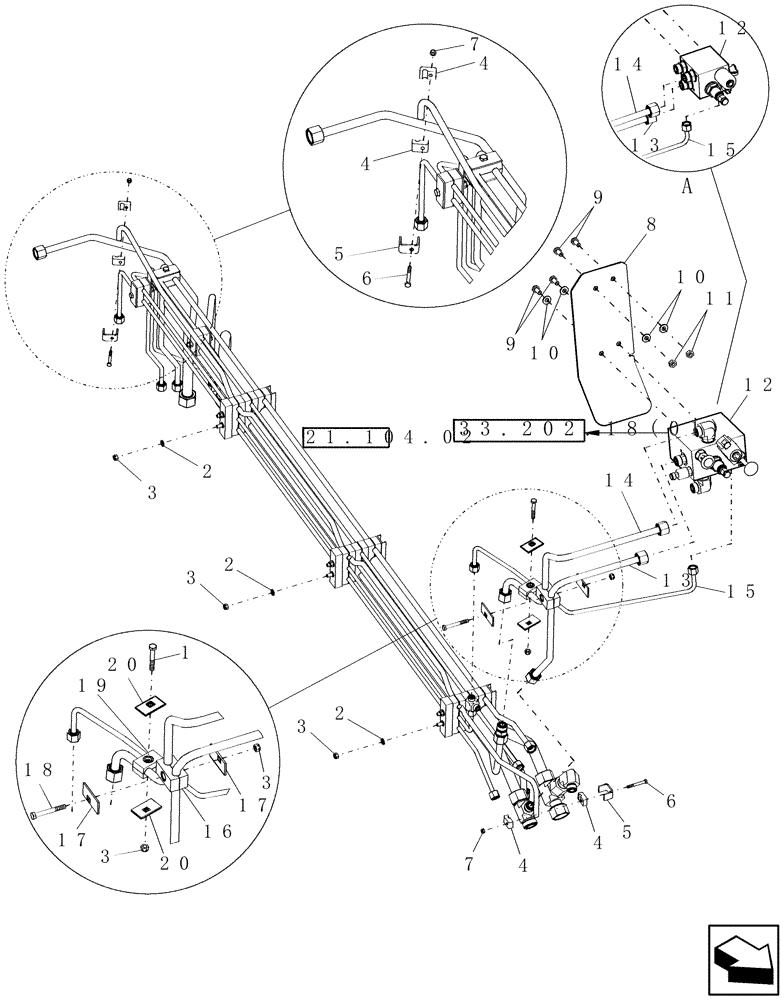

Схема запчастей Case IH 7010 - (33.110.03) - HYDRAULIC TUBES - PARK VALVE - 9010 (33) - BRAKES & CONTROLS
3
3
3
11
15
7
2
19
9
6
5
21.104.02
3
33.202.18(01)
5
17
13
4
15
4
10
14
8
4
6
20
4
10
2
a
18
12
14
16
3
12
20
2
17
9
13
7
1

Артикул

Название

Примечание

Количество

1

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

2

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

3

832-46408

NUT,M8 x 1.25, Cl 8

5шт.

4

433008

CLAMP

4шт.

5

442340

SUPPORT

2шт.

6

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

87280113

BRACKET

1шт.

8

87710647

BRACKET

1шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

0C

ORDER COMPONENTS

Valve, Hydraulic, Park - Prior To 4/08, - From 4/08

1шт.

13

87109730

HYD TUBE,0.625 mm OD

Valve Supply

1шт.

Prior To 04/08

1шт.

13

87710635

HYD TUBE,.625" OD

Valve Supply

1шт.

04/08 & After

1шт.

14

87280109

HYD TUBE

Drain

1шт.

Prior To 04/08

1шт.

14

87710634

HYD TUBE,.625" OD

Drain

1шт.

04/08 & After

1шт.

15

87280107

HYD TUBE,0.375" OD

Regulated Pressure, Park Valve

1шт.

Prior To 04/08

1шт.

15

87710633

TUBE,.375" OD

Regulated Pressure, Park Valve

1шт.

04/08 & After

1шт.

16

87000150

CLAMP,15.869mm ID

Tube

1шт.

17

87000230

PLATE

Clamp, Hose

2шт.

18

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

19

87000159

CLAMP

Tube

1шт.

20

72180326

PLATE

Clamp, Hose

2шт.

Выбрано товаров: 30
