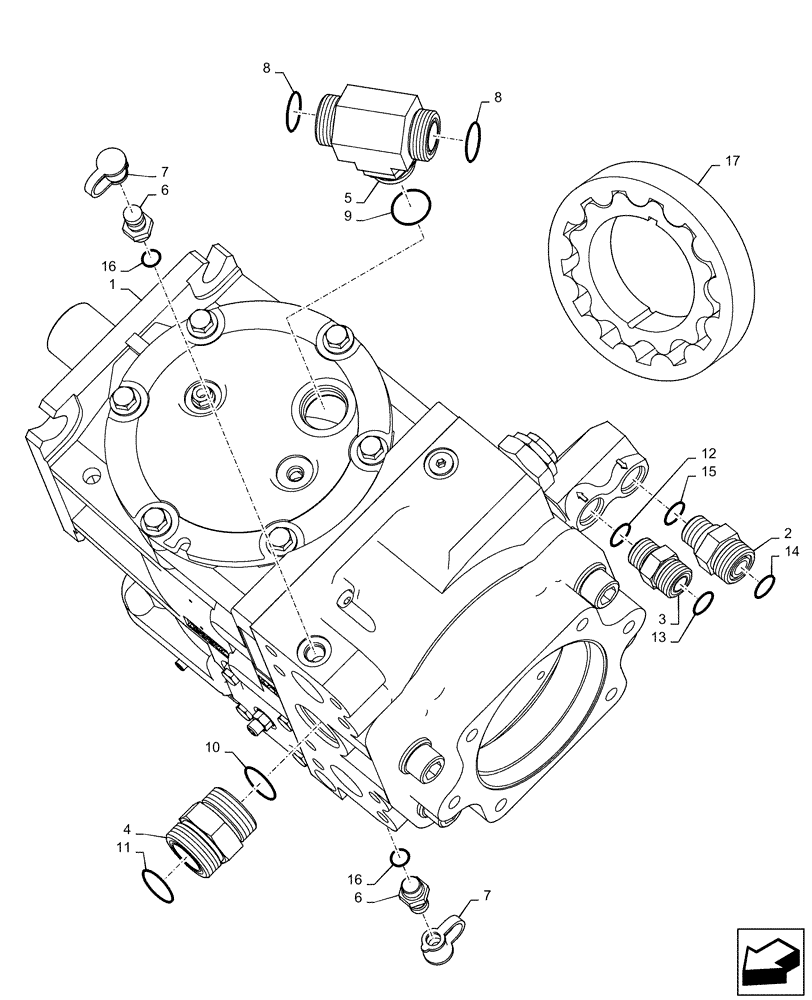

Запчасти Case IH 7010 (29.212.09[02]) - PUMP, PROPULSION - 7010/8010 (29) - HYDROSTATIC DRIVE

1

87011461

HYDROSTATIC PUMP,130 CC

Propulsion - 130 cc

1шт.

Standard Drive, 1 Speed

1шт.

1

87010872

REMAN-HYDROSTAT PUMP

Remanufactured, HYDROSTATIC PUMP

1шт.

1

87010871

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

87011462

HYDROSTATIC PUMP

Propulsion - 110 cc

1шт.

Plan Drive, 1 Speed

1шт.

1

87010874

REMAN-HYDROSTAT PUMP

Remanufactured HYDROSTATIC PUMP

1шт.

1

87010873

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

3

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

1шт.

4

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

5

9628061

TEE

1шт.

6

86596853

QUICK MALE COUPLING,9/16"-18

2шт.

7

86502604

DUST CAP

2шт.

8

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

10

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

PTO Lube Relief, Includes Ref 17

2шт.

11

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Multi Function, Includes Refs 30 & 31

2шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

EDC, Includes Refs 15, 16, 18, 19 & 20

1шт.

13

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Remote Filter, Includes Ref 21

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

87574437

PUMP

1шт.
