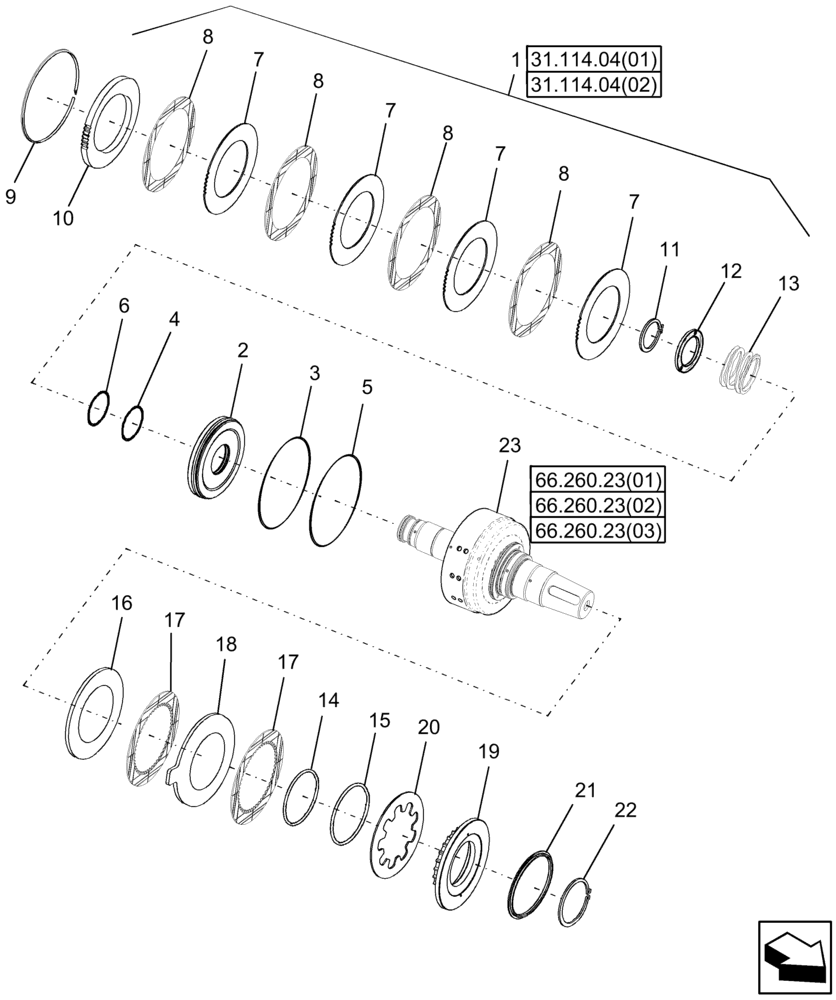

Запчасти Case IH 7010 (14.102.02[01]) - PTO, CLUTCH (14) - MAIN GEARBOX & DRIVE

1

0C

ORDER COMPONENTS

Shaft & Clutch; Service Only

1шт.

Available With Shims As Kit 87737569

1шт.

Beater/Chopper Drive

1шт.

2

329889A1

PISTON

1шт.

3

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

1шт.

4

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING Clutch Piston

1шт.

5

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

6

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

7

345335A2

PLATE

Separator

6шт.

8

345334A1

FACING

Friction

6шт.

May Be Used Interchangeably

1шт.

8

84159803

PLATE

Friction

6шт.

May Be Used Interchangeably

1шт.

9

345337A1

RING

1шт.

10

345336A1

CLUTCH DRIVING PLATE

1шт.

11

100-16175

SNAP RING,#175, Ext

1шт.

12

A188044

RETAINER

Piston Return Spring

1шт.

13

A188080

SPRING

Piston Return

1шт.

14

87105115

SEALING RING,64.77mm ID x 70mm OD x 2.62mm Thk

SEALRING

1шт.

15

87105116

SEALING RING,82.22mm ID x 87.45mm OD x 2.62mm Thk

SEALRING

1шт.

16

87105109

CLUTCH PLATE,105mm ID x 141mm OD x 7mm Thk

1шт.

17

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction

2шт.

May Be Used Interchangeably

1шт.

17

84159162

CLUTCH PLATE,98.63mm ID x 141mm OD x 1.95mm Thk

Disc, Friction

2шт.

May Be Used Interchangeably

1шт.

18

87109365

PLATE

1шт.

19

87105676

PISTON

1шт.

20

87105113

SPRING

Disc

1шт.

21

87105114

RING

1шт.

22

800-1170

SNAP RING,M70, Ext

Retaining

1шт.

23

87394766

SHAFT

1шт.

Beater/Chopper Drive

1шт.
