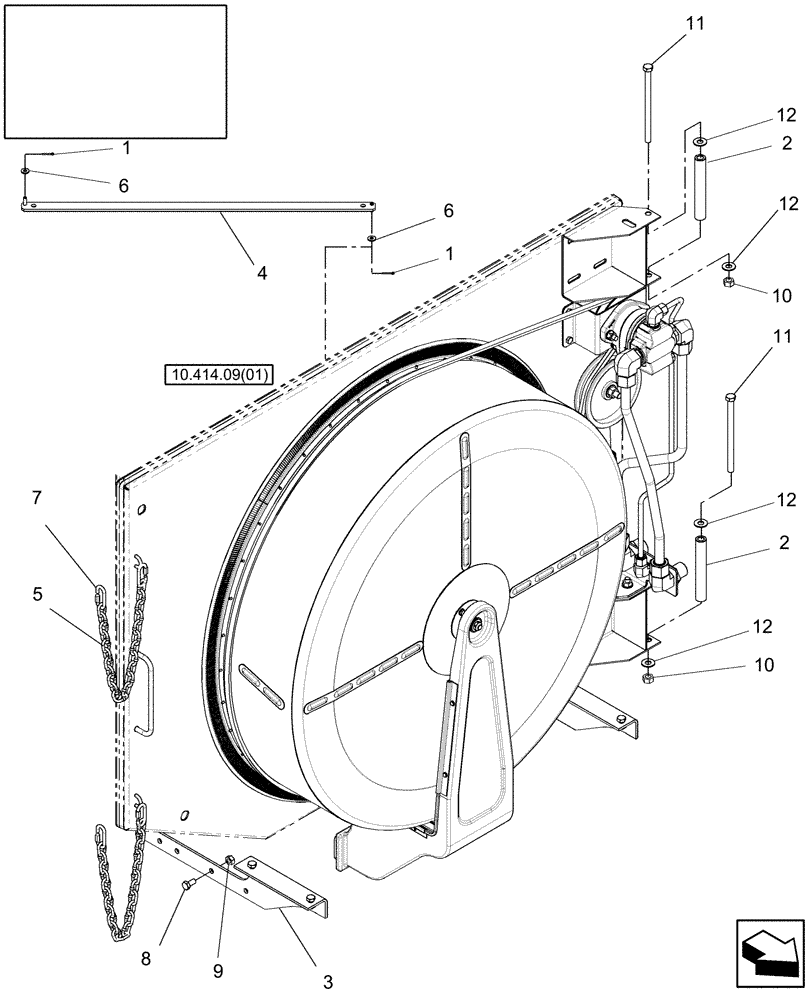

Запчасти Case IH 7010 (10.414.10[01]) - DUST SCREEN MOUNTING, METAL - PRIOR TO PIN HAJ202001 - 8010 (10) - ENGINE

1

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

2

87109309

SPACER

2шт.

3

86976802

BRACKET

2шт.

4

87549776

STRAP

1шт.

5

87105185

CHAIN,566.12mm L

2шт.

6

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

7

87107072

CHAIN LINK,44.299mm Pitch

4шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

9

100016

NUT,M10 x 1.5, Cl 8

8шт.

10

9706685

NUT,M12 x 1.75, Cl 8

2шт.

11

336383

BOLT,Hex, M12 x 1.75 x 180mm, Cl 8.8

2шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.
