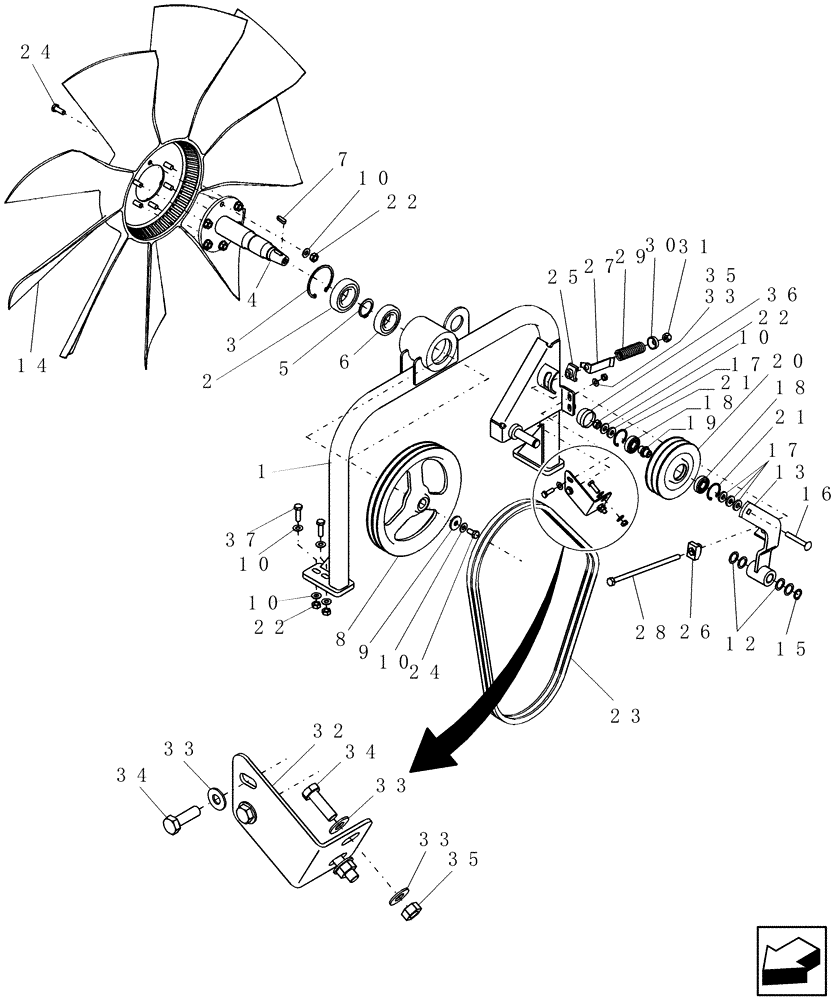

Запчасти Case IH 7010 (10.414.02[01]) - FAN DRIVE - ENGINE - 7010 (10) - ENGINE

1

87622070

SUPPORT ASSY.

1шт.

2

450716

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

3

300633

SNAP RING,M80, Internal

1шт.

4

84459805

SHAFT

1шт.

5

370006

SNAP RING,M40, Ext

1шт.

6

87621965

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

8

84071139

PULLEY,280mm OD

Belt

1шт.

9

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

11

NSS

NOT SOLD SEPARAT

1шт.

12

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

13

87540958

ARM ASSY.

Incly 2 bushings 382974

1шт.

14

84444510

FAN,9 Blades, 914.4mm OD

1шт.

15

370024

CIRCLIP,M20, Ext

1шт.

16

374894

CARRIAGE BOLT,Sq Nk, M10 x 70mm, Cl 8.8

1шт.

17

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

18

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

19

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

1шт.

20

87533880

PULLEY,144mm OD

1шт.

21

300644

SNAP RING,M40, Internal

2шт.

22

100016

NUT,M10 x 1.5, Cl 8

11шт.

23

87526140

SET OF BELTS,12.70 mm W x 1595.00 mm L

Engine Fan Drive

1шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

25

442398

GUIDE

1шт.

26

754131

GUIDE

1шт.

27

913108

INDICATOR

1шт.

28

9514334

ROD,M10 x 225mm

1шт.

29

84069932

COMPRESSION SPRING,25mm OD x 100mm L

1шт.

30

356728

CUP

1шт.

31

412141

NUT,M10 x 1.5, Cl 8

1шт.

32

87538007

SUPPORT

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

34

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

35

9706690

NUT,M8 x 1.25, Cl 8

4шт.

36

87540959

CAP

Dust

1шт.

37

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.
