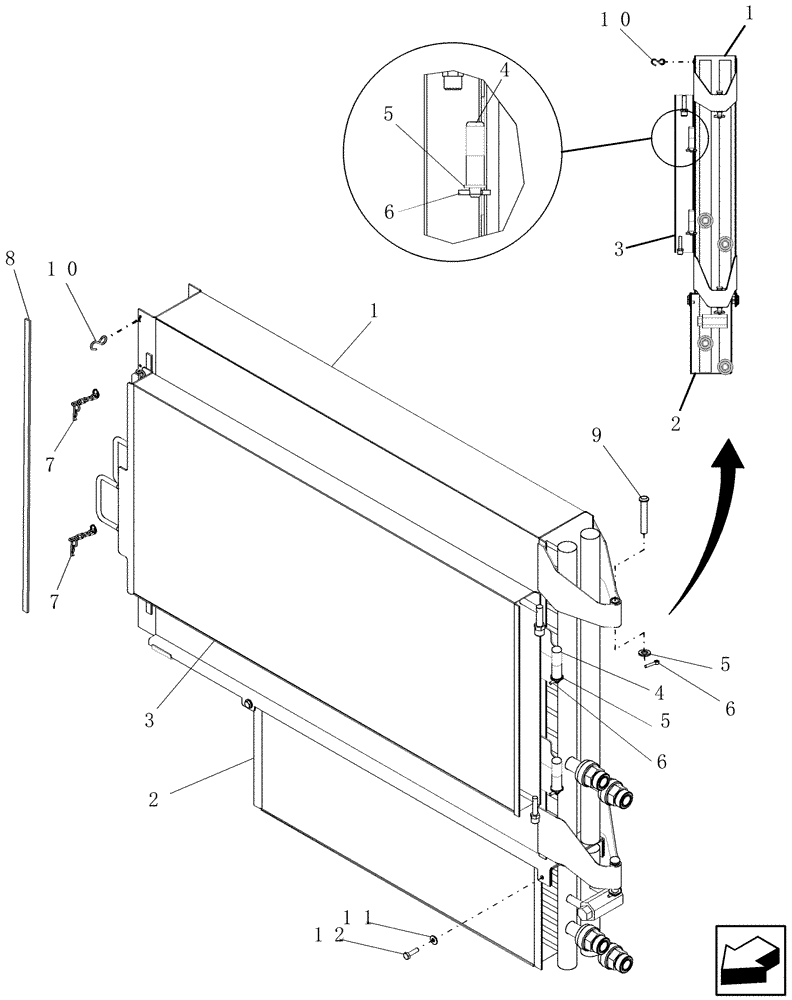

Запчасти Case IH 7010 (10.408.04) - OIL COOLER ASSEMBLY W/ CONDENSER - 9010 (10) - ENGINE

1

87536476

COOLER, OIL

Main

1шт.

2

87284534

COOLER, OIL

Auxiliary

1шт.

3

87284217

CONDENSER

1шт.

4

86979987

HEADED PIN,1/2" x 3", G5

2шт.

5

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

6

394818

COTTER PIN,M5 x 25

4шт.

7

87106855

PIN

Hair, W/ Tether

2шт.

8

87282055

SEALANT

1шт.

9

87308174

HEADED PIN,1/2" x 3 1/4"

.500 x 3.250 GR2, ZND

2шт.

10

87280365

HOOK

Retaining

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.
