Запчасти Case IH 7010 (10.406.03) - COOLANT LINES - 9010 (10) - ENGINE

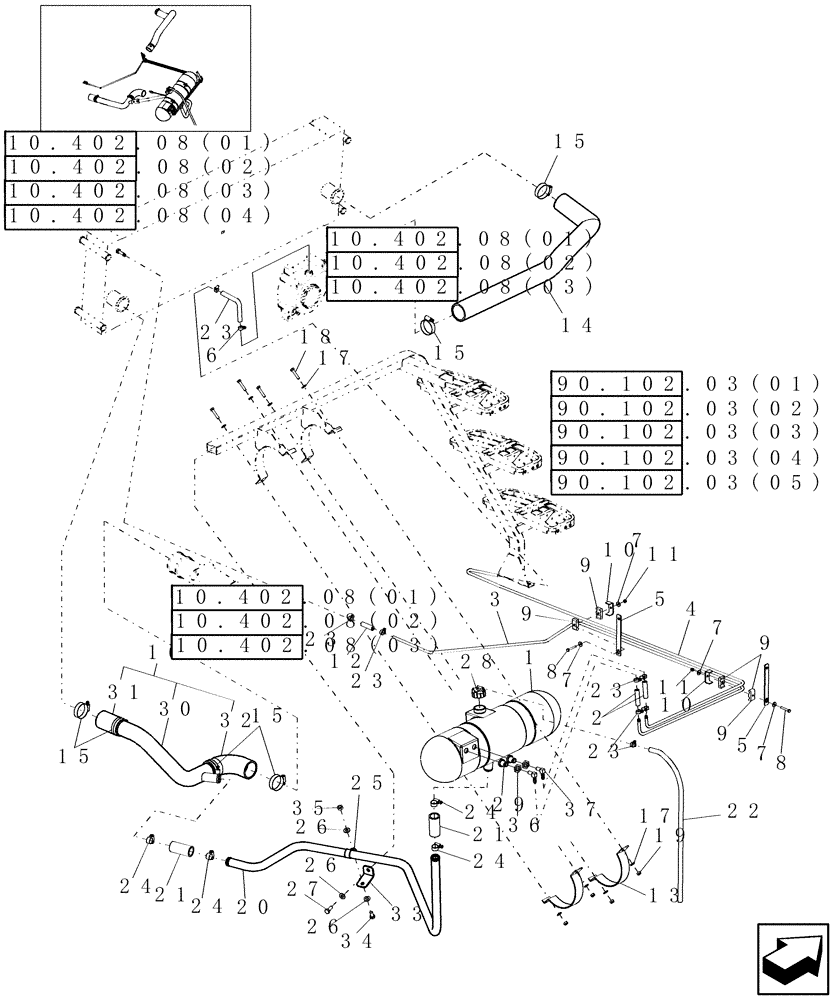

Схема запчастей Case IH 7010 - (10.406.03) - COOLANT LINES - 9010 (10) - ENGINE
7
25
9
16
5
7
11
23
6
9
15
11
12
7
9
13
24
5
26
27
8
23
4
15
9
24
2
36
23
30
23
18
15
33
37
28
22
26
26
20
17
35
90.102.03(03)
10.402.08(03)
90.102.03(05)
90.102.03(01)
90.102.03(02)
90.102.03(04)
10
10.402.08(02)
10.402.08(01)
10.402.08(02)
10.402.08(03)
10.402.08(01)
10.402.08(02)
10.402.08(03)
10.402.08(01)
24
14
19
8
21
34
15
31
17
7
23
29
3
1
10
24
10.402.08(04)
32
21

Артикул

Название

Примечание

Количество

1

87658675

RESERVOIR, COOLANT E

Incl Refs 28 and 29

1шт.

2

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

Deaeration Connection

2шт.

3

87665332

TUBE,9.52 mm OD

1шт.

4

87665333

HYD TUBE,9.52 mm OD

1шт.

5

87281676

BRACKET

2шт.

6

87576257

HOSE,9.50 mm ID x 250.00 mm

1шт.

7

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

9

430357

CLAMP

4шт.

10

431941

SUPPORT

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

1шт.

13

84442536

CLAMP

2шт.

14

87667721

RADIATOR HOSE,60.00 mm ID x 726.30 mm, SAE J20R4

1шт.

15

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

16

87696886

TUBE,409.1, 208.4 mm L

Includes: Refs 15, 30 Thru 32

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

18

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

20

87665216

TUBE,28.6 mm OD x 924.9 mm L

1шт.

21

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

2шт.

22

87395212

TUBE

Deaeration Bottle Vent; L = 3500mm

1шт.

23

913888

HOSE CLAMP

9шт.

24

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

25

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

27

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

28

84072957

CAP

1шт.

29

NSS

NOT SOLD SEPARAT

Fitting, Bulkhead

2шт.

30

NSS

NOT SOLD SEPARAT

Tube, Steel

1шт.

31

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

1шт.

32

86976412

HOSE,59.00 mm ID x 110.00 mm, SAE J20, 20R4 Class D1

Elbow, Engine Coolant

1шт.

33

87723274

BRACKET

1шт.

34

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

35

100016

NUT,M10 x 1.5, Cl 8

1шт.

36

NSS

NOT SOLD SEPARAT

Nut, Bulkhead Fitting

2шт.

37

NSS

NOT SOLD SEPARAT

Elbow

2шт.

38

87377459

SENSOR

Coolant Level

1шт.

Выбрано товаров: 38
