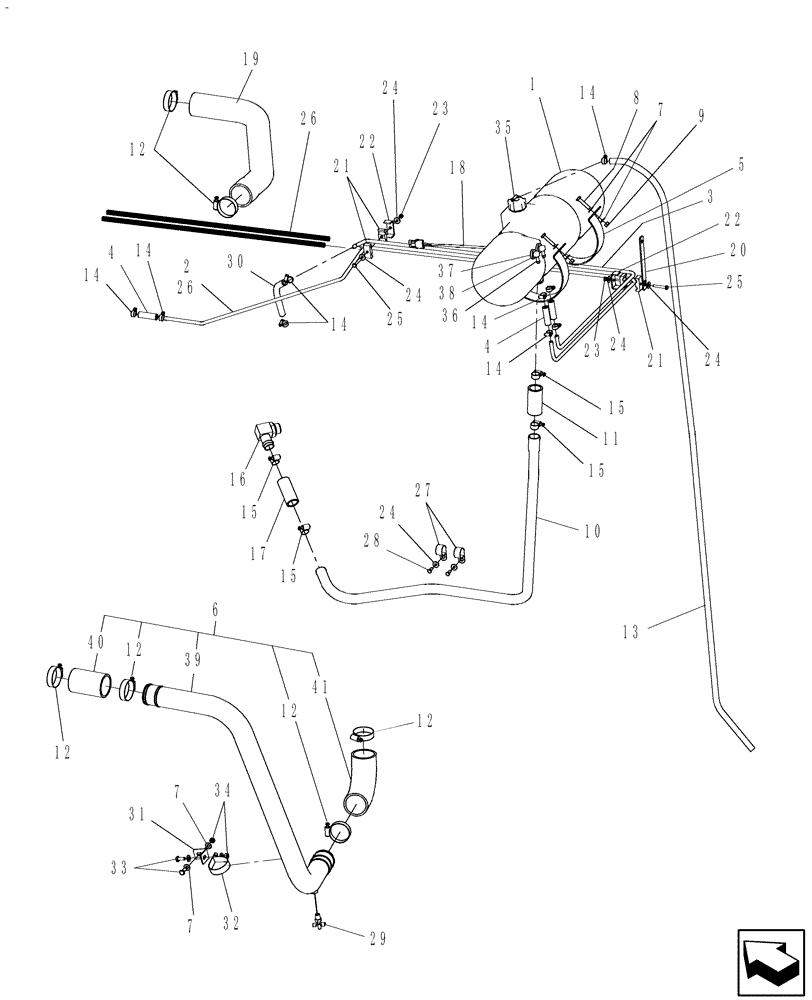

Запчасти Case IH 7010 (10.406.03[03]) - COOLANT LINES - PRIOR TO PIN HAJ203160 - 7010 (10) - ENGINE

1

84452234

RESERVOIR, COOLANT E

Incl Refs 35 Thru 37, as Indicated

1шт.

May Be From Either Supplier Solar Plastics or Rotoplast; Check Before Ordering Component Parts

1шт.

1

87658675

RESERVOIR, COOLANT E

W/Bulkhead Fittings; Incl Refs 35 Thru 38, as Indicated

1шт.

2

87534724

HYD TUBE,10.95 mm OD x 1289.4, 72 mm L

1шт.

3

87577121

TUBE,9.52 mm OD

1шт.

4

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

Deaeration Bottle To Tubes

3шт.

5

84442536

CLAMP

2шт.

6

87530575

TUBE,386.3 mm L

Incl Refs 12(2), 39, 40 and 41

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

8

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

87534722

TUBE,28.6-32 mm OD

1шт.

11

87395214

HOSE

Between Coolant Tubes; L = 80mm, I.D.= 31.8mm

1шт.

12

86633352

HOSE CLAMP,57mm - 79mm

6шт.

13

87395212

TUBE

Deaeration Bottle Vent; L = 3500mm

1шт.

14

913888

HOSE CLAMP

9шт.

15

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

16

87546092

FITTING

1шт.

17

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

1шт.

18

87377459

SENSOR

Deaeration Bottle; Incl O-Ring

1шт.

18

9672467

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

19

87530573

HOSE,57.20 mm ID x 484.60 mm, SAE J20, 20R4 Class D-1

1шт.

20

87281676

BRACKET

1шт.

21

430357

CLAMP

4шт.

22

431941

SUPPORT

2шт.

23

353308

NUT,M6 x 1.0, Cl 8

2шт.

24

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

25

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

26

87283963

INSULATOR

2шт.

27

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

28

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

29

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

30

87576257

HOSE,9.50 mm ID x 250.00 mm

1шт.

31

87576259

BRACKET

1шт.

32

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

9706690

NUT,M8 x 1.25, Cl 8

2шт.

35

84072957

CAP

1шт.

36

87050320

ELBOW

2шт.

For Supplier: Solar Plastics

1шт.

36

87555620

ELBOW

2шт.

For Supplier: Rotoplast

1шт.

36

NS

NOT SERVICED

Elbow

2шт.

Component Of 87658675

1шт.

37

86532842

BUSHING,9.2mm ID x 14.22mm OD x 16mm L

2шт.

For Supplier: Solar Plastics

1шт.

37

87555608

BUSHING

2шт.

For Supplier: Rotoplast

1шт.

37

NS

NOT SERVICED

Fitting, Bulkhead

2шт.

Component Of 87658675

1шт.

38

NS

NOT SERVICED

Nut, Bulkhead Fitting

2шт.

Component Of 87658675

1шт.

39

87530574

TUBE,57.2 - 60 mm OD x 605.1, 416.5 mm L

1шт.

40

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

1шт.

41

86976412

HOSE,59.00 mm ID x 110.00 mm, SAE J20, 20R4 Class D1

Hose Elbow

1шт.
