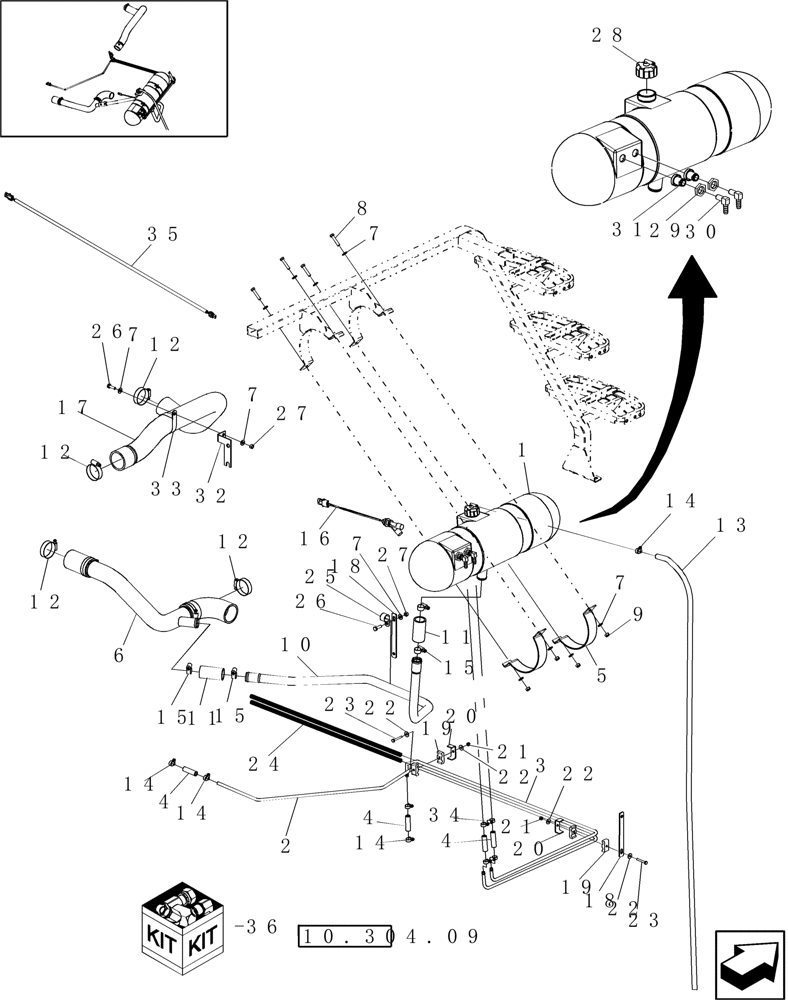

Запчасти Case IH 7010 (10.406.03[02]) - COOLANT LINES - PIN HAJ202001 & AFTER - 8010 (10) - ENGINE

1

87658675

RESERVOIR, COOLANT E

Incl Refs 28 Thru 30, as Indicated

1шт.

2

87570007

HYD TUBE,9.52 mm OD x 1359.1, 72 mm L

Deaeration

1шт.

3

87570004

HYD TUBE,9.52 mm OD x 1041.5, 530 mm L

Deaeration

1шт.

4

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

Deaeration Bottle To Tubes

4шт.

5

84076174

CLAMP

2шт.

6

87569795

TUBE,416.3, 370 mm L

Engine Coolant

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

11шт.

8

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

87570015

TUBE,1.125" OD

Deaeration Bottle

1шт.

11

87395214

HOSE

Between Coolant Tubes; L = 80mm, I.D.= 31.8mm

2шт.

12

86633352

HOSE CLAMP,57mm - 79mm

4шт.

13

87395212

TUBE

Deaeration Bottle Vent; L = 3500mm

1шт.

14

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

15

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

16

87377459

SENSOR

Deaeration Bottle

1шт.

17

87284666

RADIATOR HOSE,418.10 mm

1шт.

18

87281676

BRACKET

2шт.

19

430357

CLAMP

4шт.

20

431941

SUPPORT

2шт.

21

353308

NUT,M6 x 1.0, Cl 8

2шт.

22

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

23

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

24

87283963

INSULATOR

2шт.

25

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

27

9706690

NUT,M8 x 1.25, Cl 8

2шт.

28

84072957

CAP

1шт.

29

NS

NOT SERVICED

Nut, Bulkhead Fitting

2шт.

30

NS

NOT SERVICED

Elbow

2шт.

31

NS

NOT SERVICED

Fitting, Bulkhead

2шт.

32

87284821

BRACKET

1шт.

33

87302918

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

34

913888

HOSE CLAMP

4шт.

35

84191027

WIRE HARNESS

Coolant Level - Used Only As Part Of Single Plane Upgrade Kit

1шт.

36

84181355

SERVICE KIT

Single Plane Upgrade, Includes: Refs 1 Thru 35, Plus Those Components Found on Other Figures, as Indicated

1шт.
