Запчасти Case IH 6140 (10.210.AO[02]) - INLINE FUEL FILTER (10) - ENGINE

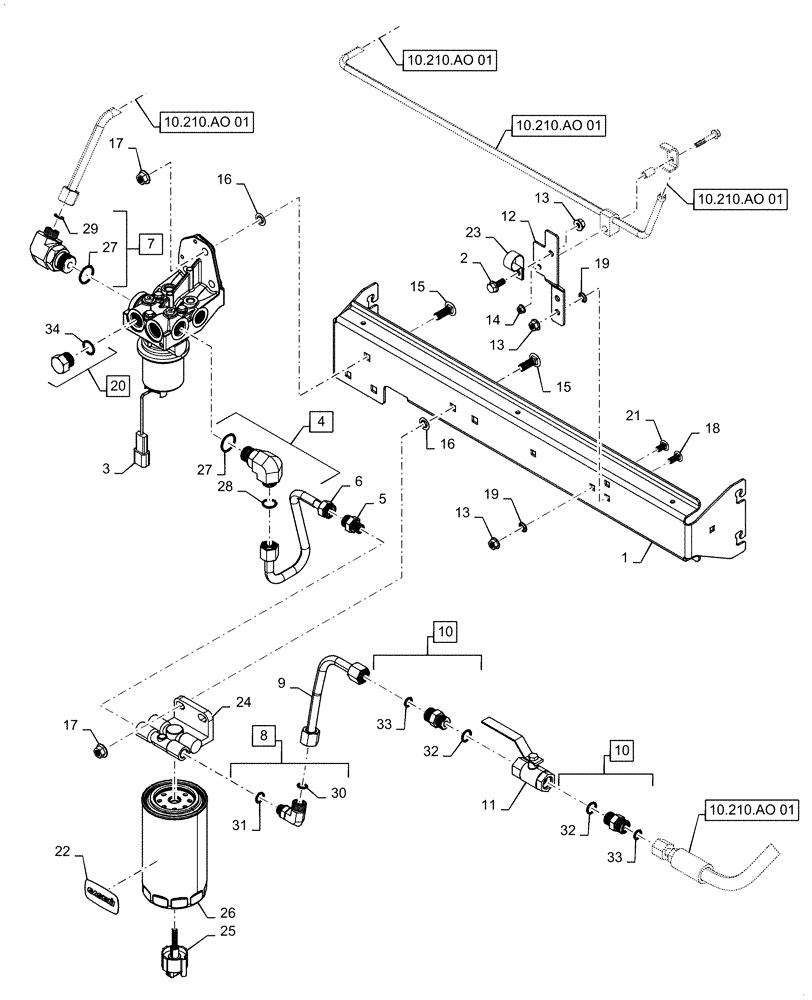

Схема запчастей Case IH 6140 - (10.210.AO[02]) - INLINE FUEL FILTER (10) - ENGINE
10.210.ao 01
14
16
17
29
9
17
12
26
10
30
27
15
34
13
15
6
5
24
13
27
19
10
31
3
4
7
33
32
28
18
23
32
2
11
33
1
16
21
20
25
8
19
13
22
10.210.ao 01
10.210.ao 01
10.210.ao 01
10.210.ao 01

Артикул

Название

Примечание

Количество

1

47430975

SUPPORT

DEF/Adblue Tank Side

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

3

87676818

FUEL PUMP,12V, 4.5A

1шт.

4

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 27, 28

1шт.

5

84431916

FITTING

Filter to Pump

1шт.

6

87728316

FUEL TUBE,.5" OD

Filter to Pump

1шт.

7

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Incl 27, 29

1шт.

8

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

Incl 30, 31

1шт.

9

84169781

TUBE

Fuel Supply

1шт.

10

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 32, 33

2шт.

11

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

Fuel

1шт.

12

84569342

SUPPORT

Fuel Lines

1шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

15

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

5шт.

16

87698854

NUT,M10

5шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

18

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

19

131-440

PUSH-ON NUT

Retainer

4шт.

20

86512512

PLUG,7/8" - 14 ORB

Incl 34

2шт.

21

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

22

87679098

DECAL,37mm x 70mm

CIH Filter

1шт.

23

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

24

87607877

HEAD

Filter

1шт.

25

87519307

SENSOR

Water

1шт.

26

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Element

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

31

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

Выбрано товаров: 34
