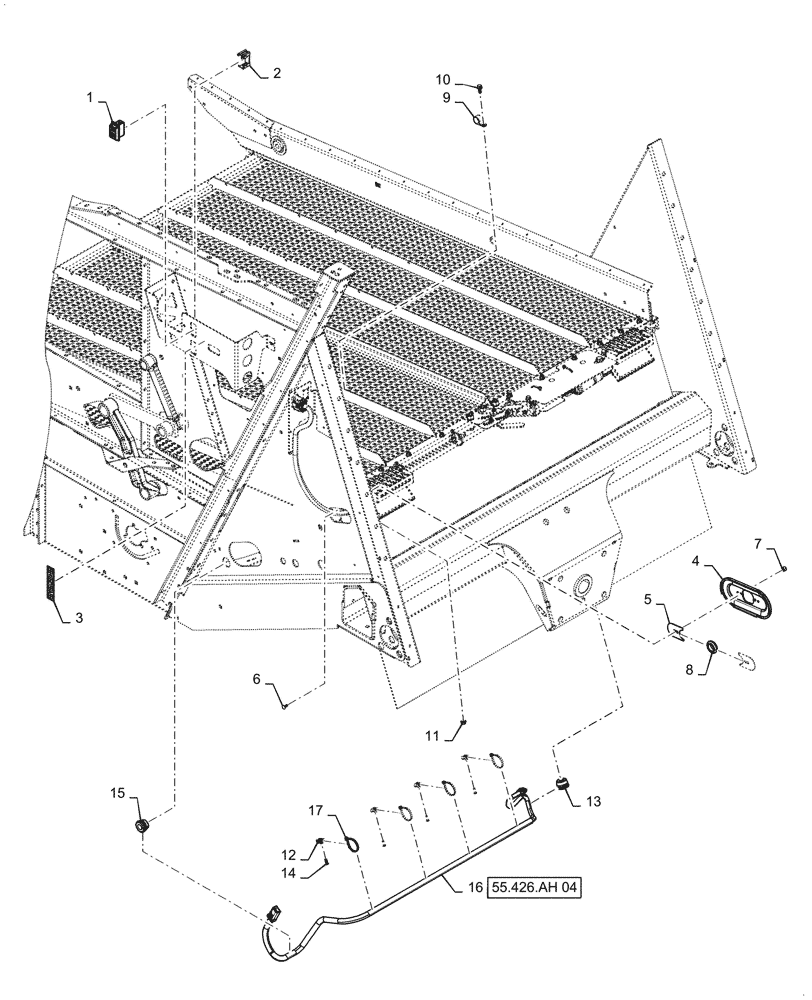

Запчасти Case IH 6140 (74.114.AU) - SIEVE ADJUSTMENT SWITCH, REMOTE CONTROL (74) - CLEANING

1

86627351

SWITCH, SIEVE ADJUST

Remote

2шт.

2

86627352

CLAMP

Switch

2шт.

3

87036589

DECAL

Sieve Adjust

1шт.

4

84127513

SEAL

Cleaning System

1шт.

5

87495389

COVER ASSY

Plate

2шт.

6

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

248-1123

GROMMET,1" ID x 1 3/4" x .062"

1шт.

9

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

12

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

14

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

15

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

16

87580679

WIRE HARNESS

Shoe Sieve Control

1шт.

17

86566989

CABLE TIE,208mm L

Strap

4шт.
