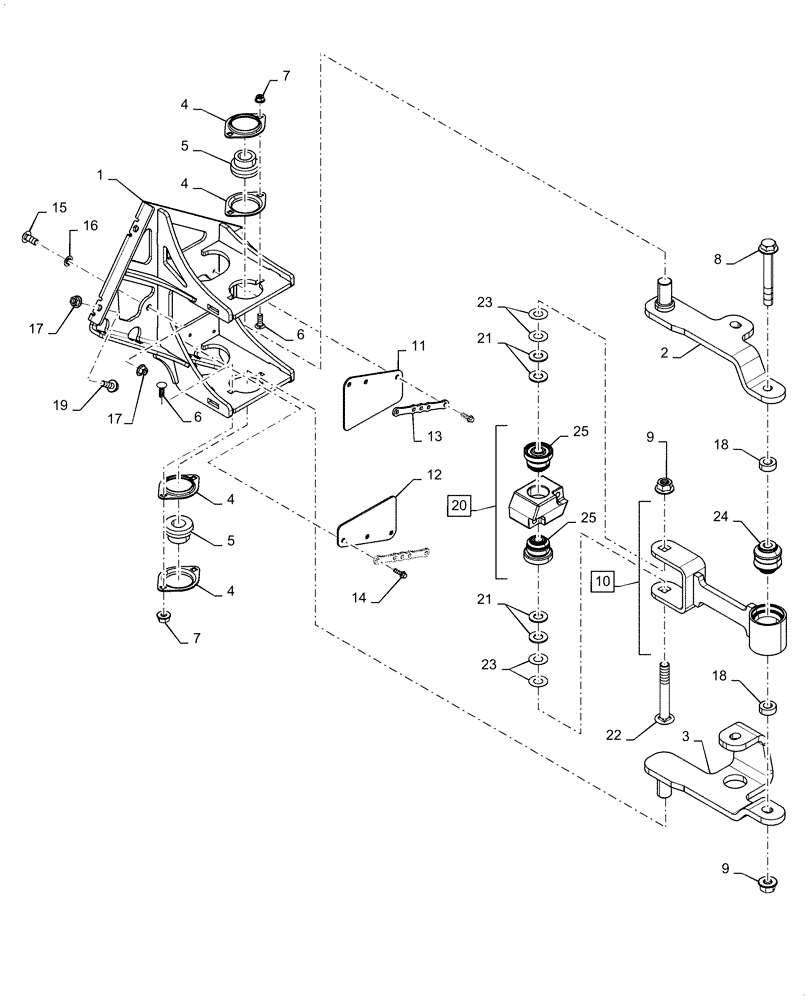

Запчасти Case IH 6140 (74.101.BB[02]) - VAR - 425447 - CROSS FLOW ACTUATOR LINKAGE (74) - CLEANING

1

47873451

SUPPORT

Cross Flow

1шт.

2

47869623

LINK

Upper Arm

1шт.

3

47874605

LINK

Lower Arm

1шт.

4

86548974

FLANGE,Bearing

Housing

4шт.

5

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

6

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

4шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

87698807

BOLT,Hex, M16 x 120mm, Cl 10.9

1шт.

9

47429686

NUT

Flange, M16

2шт.

10

47763310

ARM

Cross Clean, Incl 24

1шт.

11

47875577

SEAL

Lower

1шт.

12

47875578

SEAL

Upper

1шт.

13

47875579

PLATE

Seal

2шт.

14

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

6шт.

15

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

16

87698854

NUT,M10

4шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

18

84462795

BUSHING

Spacing

2шт.

19

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

20

47757260

SHAFT

Side Shake Mechanism, Incl 25

1шт.

21

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

4шт.

22

84129686

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 120mm, Cl 10.9

1шт.

23

9513615

WASHER,16.5mm ID x 34mm OD x 0.5mm Thk

4шт.

24

47502845

BUSHING

Rubber

1шт.

25

84458696

RUBBER BLOCK

Side Shake Shaft

2шт.
