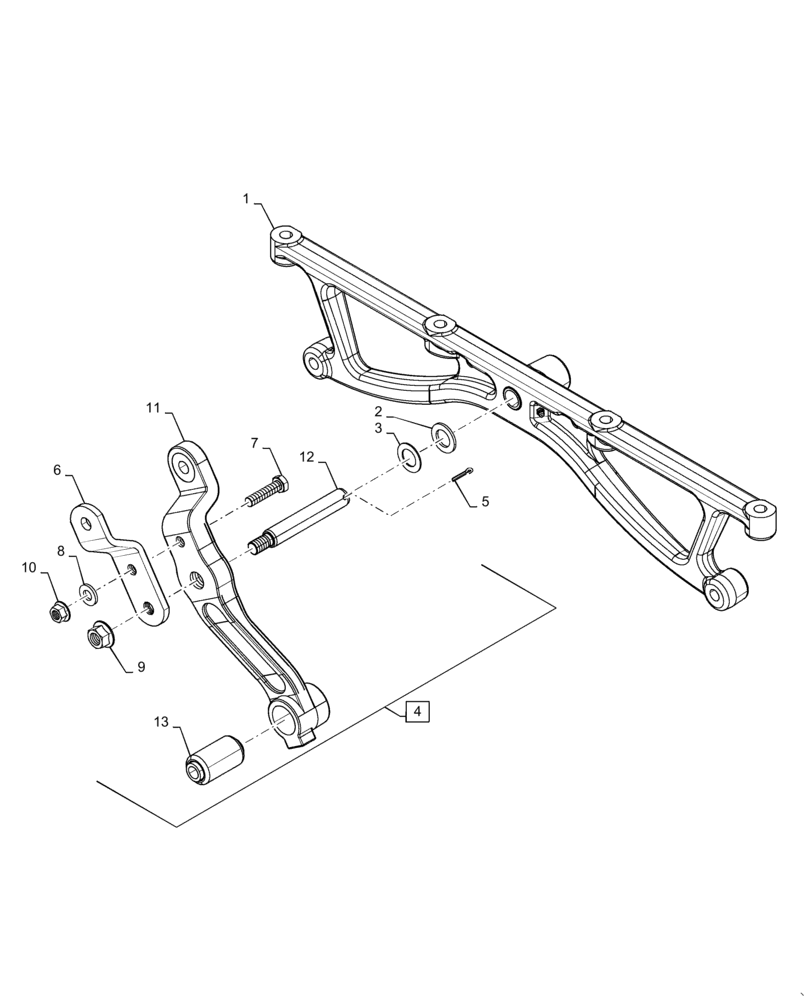

Запчасти Case IH 6140 (74.101.AF) - CLEANING SYSTEM DRIVE HANGER ARM (74) - CLEANING

1

47551483

PIVOT

Shoe Shaker

1шт.

2

87613199

WASHER,0.91" ID x 1.5" OD x 0.12" Thk

3шт.

3

86624166

WASHER,0.91" ID x 1.5" OD x 0.06" Thk

2шт.

4

84128533

LEVER

Shoe Shaker Pitman Arm, Incl 6 - 13

1шт.

5

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

6

87323537

BRACKET

Pitman Stabilizer Bar

1шт.

7

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

9

87016581

FLANGE NUT,M16 x 2, CI 10

1шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

11

87313323

LEVER

Chaffer Drive

1шт.

12

84128529

PIN

Shoe Shaker Pivot Shaft

1шт.

13

87538599

BUSHING,16mm ID x 38.2mm OD x 73mm L

1шт.
