Запчасти Case IH 6140 (74.101.AC) - CLEANING SYSTEM (74) - CLEANING

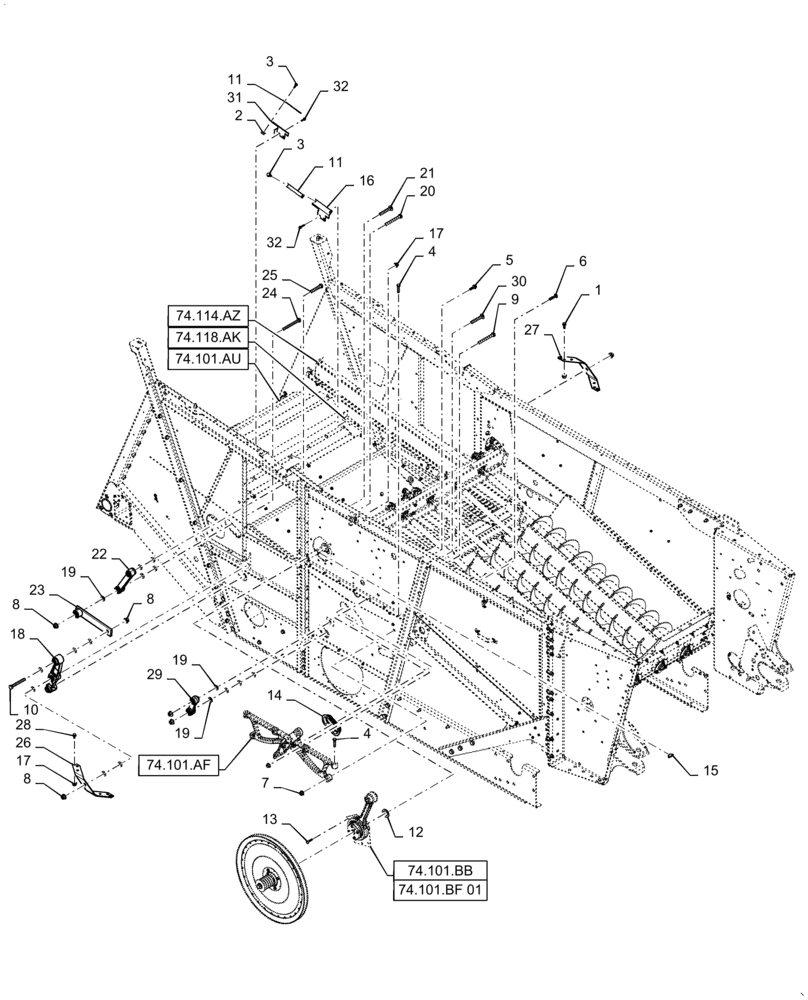

Схема запчастей Case IH 6140 - (74.101.AC) - CLEANING SYSTEM (74) - CLEANING
26
18
19
3
27
31
12
74.118.ak
23
5
11
2
15
74.101.au
32
22
11
19
8
3
25
6
17
74.101.bf 01
28
16
9
74.101.bb
24
4
29
7
32
10
17
13
20
30
74.101.af
19
1
21
74.114.az
8
4
8
14

Артикул

Название

Примечание

Количество

1

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

2

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

3

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

4

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

5

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

6

87495309

CARRIAGE BOLT,M12 x 1.75 x 66.8mm, Cl 10.9

4шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

8

47429686

NUT

M16 Spiralock

18шт.

9

392531

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

5шт.

10

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

3шт.

11

187204A1

BAR

Shoe Sieve Seal Extension

2шт.

12

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

2шт.

13

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

8шт.

14

1302644C2

SEAL

Chaffer Lever

2шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

47614275

PLATE

Shoe Rail Seal Extension, LH

1шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.

18

87672100

ARM ASSY.

Shoe Lever

2шт.

19

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

42шт.

20

PA1791248

BOLT

2шт.

21

84129686

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 120mm, Cl 10.9

2шт.

22

87671724

ARM ASSY.

Rear Chaffer Hanger

2шт.

23

87671722

ARM ASSY.

Connector Bar

2шт.

24

9840670

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

25

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

2шт.

26

87735883

SUPPORT

Lower Sieve Lever, RH

1шт.

27

87735869

SUPPORT

Lower Sieve Lever, LH

1шт.

28

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

29

87671723

ARM ASSY.

Front Shoe Hanger

2шт.

30

84129685

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 100mm, Cl 10.9

2шт.

31

47614278

PLATE

Shoe Rail Seal Extension, RH

1шт.

32

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

4шт.

33

48141449

Hanger Arm, Rear (Not Shown)

SEAL

2шт.

34

48160769

Hanger Arm, Front (Not Shown)

SEAL

2шт.

Выбрано товаров: 34
