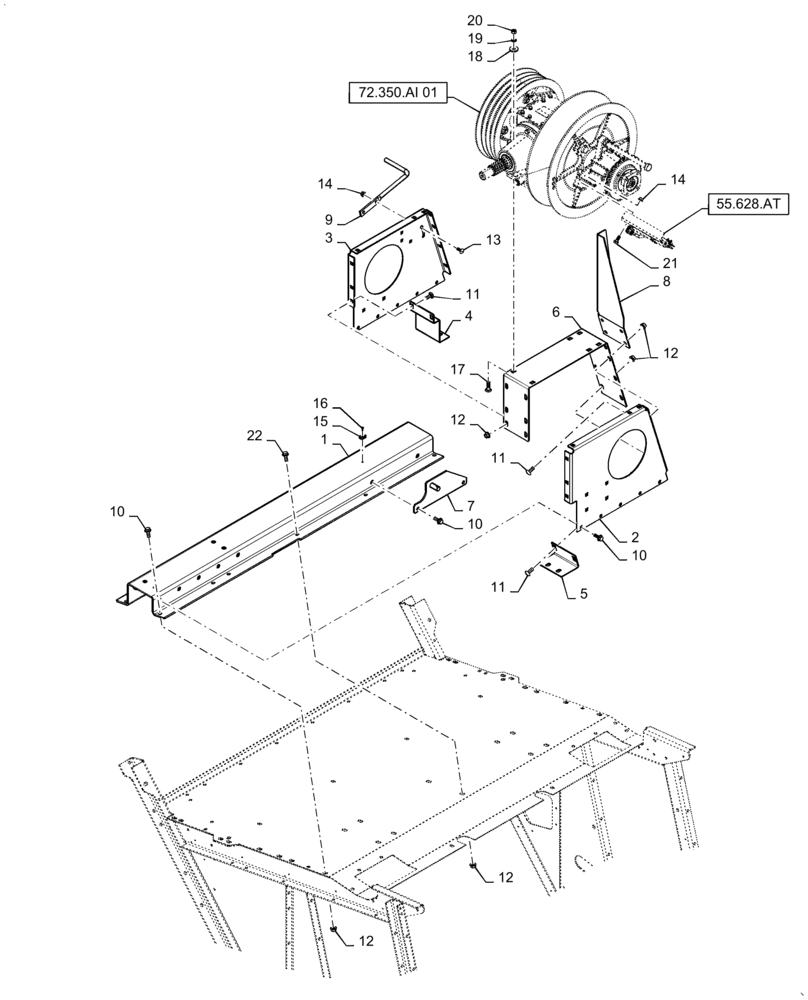

Запчасти Case IH 6140 (72.350.AJ) - SEPARATOR JACKSHAFT SUPPORT (72) - SEPARATION

1

47524242

CHANNEL

Gearbox Support

1шт.

2

47710583

PANEL

Gearbox Support, RH

1шт.

3

47710585

PANEL

Gearbox Support, LH

1шт.

4

47710587

BRACKET

Gearbox Support

1шт.

5

47524250

ANGLE

Gearbox Support

1шт.

6

47710589

PANEL

Top

1шт.

7

47531073

SUPPORT

Auxiliary Shift Handle

1шт.

8

47524254

SUPPORT

Belt Guide Channel

1шт.

9

87331545

ROD

Belt Guide

1шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

20шт.

11

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

10шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

20шт.

13

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

14

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

15

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

3шт.

16

445394

RIVET,Pop, 3/16" x 1/2" OAL

3шт.

17

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

6шт.

18

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

19

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

20

337475

NUT,M12, Cl 10

6шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

22

87343550

FLANGE BOLT,Hex, M12 x 25mm

6шт.
