Запчасти Case IH 6140 (66.260.AU[02]) - GEARBOX, ROTOR, DRIVE (66) - THRESHING

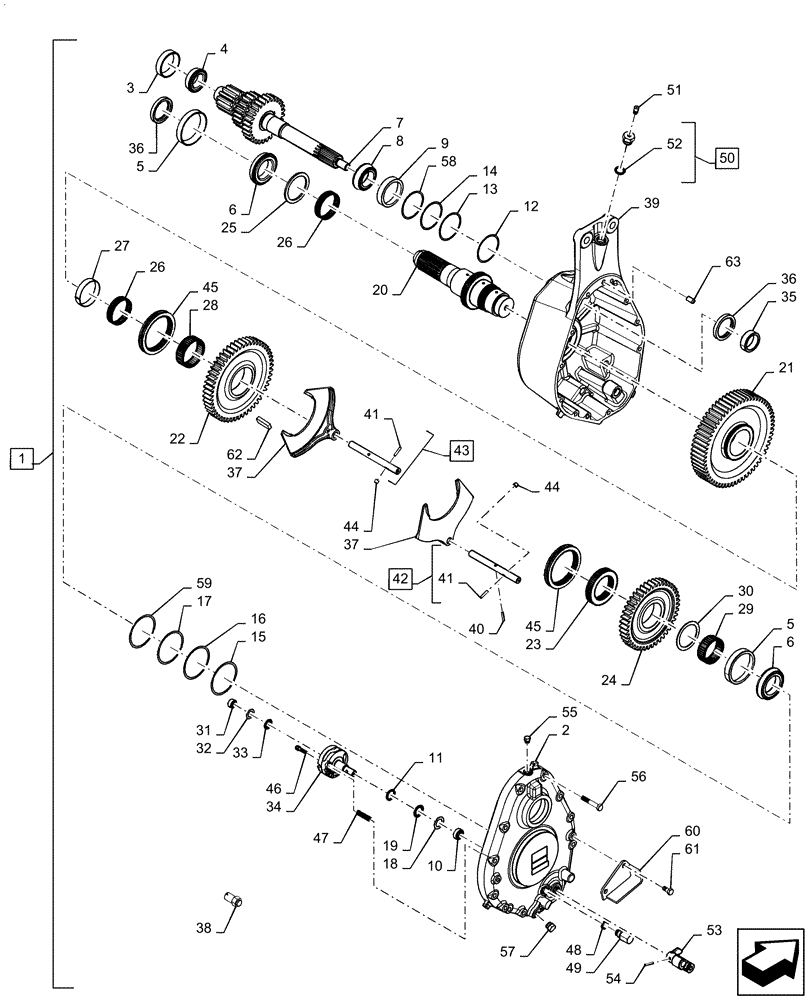

Схема запчастей Case IH 6140 - (66.260.AU[02]) - GEARBOX, ROTOR, DRIVE (66) - THRESHING
42
19
46
27
48
6
4
23
6
45
37
39
12
41
36
61
43
30
38
47
63
33
22
13
45
3
18
40
44
37
28
34
35
55
9
20
26
57
2
49
11
31
54
29
51
5
58
53
62
32
15
10
21
26
7
36
41
50
59
60
14
1
52
44
5
24
17
16
25
56
8

Артикул

Название

Примечание

Количество

1

84171992

GEARBOX

Rotor Drive, Incl 2 - 63

1шт.

1

84171991R

REMAN-ROTOR DRIVE

Rotor Drive, Incl 2 - 63

1шт.

1

84171991C

CORE-HOUSING

Return Number

1шт.

2

84166878

COVER

Rotor Drive Gear Case

1шт.

3

130503H

BEARING CUP

77mm ID x 83mm OD

1шт.

4

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1шт.

5

29214H

BEARING CUP,110mm OD x 18.82mm W

2шт.

6

80572270

BEARING ASSY,63.5mm ID x 22mm W

Cone, 65mm ID

2шт.

7

451231A2

SHAFT

Rotor Drive Input

1шт.

8

87326176

BEARING ASSY,50.8 mm ID x 63 mm OD x 25.4 mm

1шт.

9

114979H

BEARING CUP,92mm OD x 19.845mm W

1шт.

10

96423C1

NEEDLE BEARING,1" ID x 1.2505" OD x 0.5"

1шт.

11

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

12

253178A1

SHIM,83mm ID x 91.5mm OD x 0.38mm Thk

Input Shaft, 0.381mm

1шт.

13

253177A1

SHIM,83mm ID x 91.5mm OD x 0.25mm Thk

Input Shaft, 0.254mm

1шт.

14

337374A1

SHIM,83mm ID x 91.5mm OD x 0.2mm Thk

Input Shaft, 0.203mm

1шт.

15

258819A1

SHIM,98.5mm ID x 109mm OD x 0.38mm Thk

Output Shaft, 0.381mm

1шт.

16

258818A1

SHIM,98.5mm ID x 109mm OD x 0.25mm Thk

Output Shaft, 0.254mm

1шт.

17

337375A1

SHIM

Output Shaft, 0.203mm

1шт.

18

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

Thrust

1шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Needle

1шт.

20

87367599

SHAFT

Rotor Drive Output

1шт.

21

87330133

GEAR

Low Driven, 61T

1шт.

22

87326186

GEAR

Mid Driven, 51T

1шт.

23

451244A1

SPLINED RING,50T Internal / 54T External

Collar

1шт.

24

87326187

GEAR

High Driven, 43T

1шт.

25

451245A2

THRUST WASHER,80.3mm ID x 100mm OD x 5mm Thk

80.3mm x 100mm x 5mm

1шт.

26

235584A1

BEARING, NEEDLE,79.99mm ID x 86.02mm OD x 19.63mm W

2шт.

27

451255A1

SPACER,81.93mm ID x 85.85mm OD x 17.5mm L

Low Driven Gear Bearing

1шт.

28

235591A1

BEARING, NEEDLE,84.98mm ID x 93.02mm OD x 29.63mm W

1шт.

29

235594A1

BEARING, NEEDLE,74.99mm ID x 83.02mm OD x 29.63mm W

1шт.

30

235595A2

THRUST WASHER,75.25mm ID x 95mm OD x 2.28mm Thk

95mm x 75.25mm x 2.28mm

1шт.

31

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

1шт.

32

396795R1

THRUST WASHER

31.24mm x 19.228mm x .787mm

1шт.

33

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

1.24" x .752"

1шт.

34

84173593

CAM

Gear Shift, Rotor Gearbox

1шт.

35

194047C2

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

Input Shaft

1шт.

36

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

Rotor Gear Case

2шт.

37

451251A1

SHIFTER FORK

Gear Box

2шт.

38

84152678

SWITCH

Normally Closed, Detent

2шт.

39

84171994

HOUSING ASSY.

Rotor Drive Gearbox

1шт.

40

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

2шт.

41

37-1420

DOWEL,1/4" x 1 1/4"

2шт.

42

84178858

RAIL ASSY.

Low/Mid Gear, Incl 41

1шт.

43

84178859

RAIL ASSY.

Hi Gear, Incl 41

1шт.

44

236851A1

ROLLER,12mm OD x 9.5mm L

Cam Rotor Drive

2шт.

45

87491816

COLLAR

Shift

2шт.

46

84193697

PIN,7.75mm OD x 43.84mm L

Switch Actuator

1шт.

47

87670320

SPRING

Shift Detent

1шт.

48

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

84173594

PLUG

Shift Pin

1шт.

50

87326175

PLUG,1-1/16" - 12

Vent, Incl 52

1шт.

51

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

Vent

1шт.

52

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

53

87402650

ARM

Cam Shift Rotor Gearbox

1шт.

54

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

1шт.

55

129998

PLUG,1/2" - 20 ORB

1шт.

56

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

11шт.

57

214389

PLUG,3/4" - 16 ORB

1шт.

58

87525964

SHIM,83mm ID x 91.5mm OD x 0.08mm Thk

0.076mm

1шт.

59

87525965

SHIM

0.076mm

1шт.

60

451241A2

BRACKET

Shift Cable

1шт.

61

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

62

9840491

MAGNET

Protection

1шт.

63

37-1816

DOWEL,1/2" x 1"

2шт.

Выбрано товаров: 65
