Запчасти Case IH 6140 (21.114.AL[04]) - VAR - 425440, 425441 - TRANSMISSION, FRONT, LOW SPEED (21) - TRANSMISSION

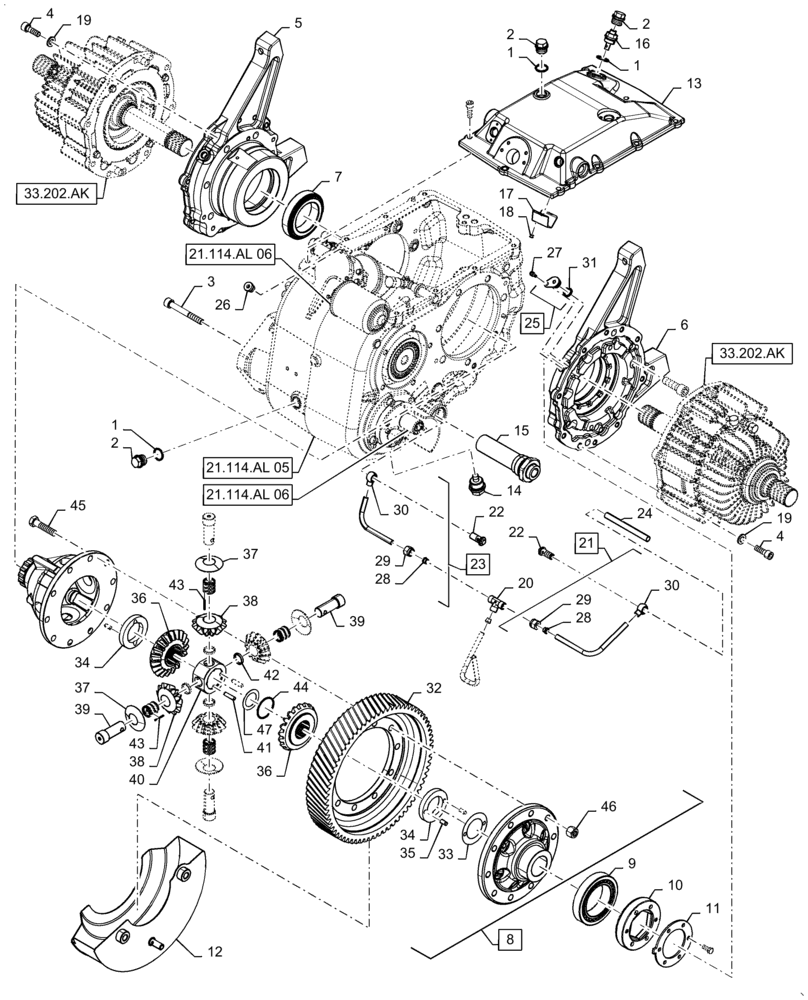

Схема запчастей Case IH 6140 - (21.114.AL[04]) - VAR - 425440, 425441 - TRANSMISSION, FRONT, LOW SPEED (21) - TRANSMISSION
22
20
28
30
7
34
33
5
24
2
12
26
18
33.202.ak
43
23
10
27
38
25
1
4
40
35
21.114.al 05
16
46
9
39
3
28
22
1
4
6
42
13
15
8
14
29
29
30
32
38
39
34
2
31
37
11
45
36
17
19
36
1
41
2
37
21.114.al 06
33.202.ak
47
21
44
43
19
21.114.al 06

Артикул

Название

Примечание

Количество

1

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

4шт.

2

150006

DRAIN PLUG,M24 x 1.5

3шт.

3

84056630

HEX SOC SCREW,M10 x 80mm, Cl 8.8

8шт.

4

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

25шт.

5

47524458

FLANGE

LH

1шт.

6

47510099

FLANGE

RH

1шт.

7

24903480

ROLLER BEARING,75mm ID x 115mm OD x 25mm W

1шт.

8

47671919

DIFFERENTIAL

Incl 32 - 47

1шт.

9

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

1шт.

10

5198598

RING NUT,Lock, M125 x 2

Bearing Lock

1шт.

11

5198626

RING

Stop

1шт.

12

84342542

GUARD

Bearing

1шт.

13

84409843

COVER

Housing

1шт.

14

336897

PLUG,M24 x 1.5

1шт.

15

47654660

FILTER STRAINER,M22 x 1.5, 145mm L, 60 Micron

Hydraulic

1шт.

16

398136

BREATHER,M24 x 1.5

1шт.

17

47615580

PLATE

Breather

1шт.

18

14641191

RIVET,Tr Hd, 3.2mm x 6mm

2шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

20шт.

20

395472

3 WAY CONNECTION,M16 x 1.5 x M16 x 1.5 x M16 x 1.5

Male Tee

1шт.

21

47536884

HYD TUBE

Incl 28 - 30

1шт.

22

47639701

BOLT,M14 x 1.5 x 40mm

Banjo, M14 x 1.5 x 32mm L

2шт.

23

47537031

HYD TUBE

Incl 28 - 30

1шт.

24

47554304

HYD TUBE

Brake

2шт.

25

47658995

PLUG

Sensor, Incl 31

1шт.

26

773596

PLUG,Hex socket, M24 x 1

Blanking

1шт.

27

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

28

150014

FERRULE

Hydraulic Tube

2шт.

29

86548975

PIPE UNION NUT,M16 x 1.5

2шт.

30

451508

HYD CONNECTOR

Seal Ring

2шт.

31

9861410

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

32

47396444

GEAR

Ring

1шт.

33

47809622

SHIM KIT

Differential

1шт.

34

47737817

THRUST WASHER,50.2mm ID x 80mm OD x 12mm Thk

Differential

2шт.

35

47779945

PIN,8mm OD x 18mm L

4шт.

36

47735435

GEAR,28T

Sun

2шт.

37

5191908

THRUST WASHER,Curved, 28mm ID x 63.5mm OD x 1.47mm Thk

Differential

4шт.

38

5139597

PINION,12T

Differential

4шт.

39

47563108

PIN,28mm OD x 74mm L

Satellite Carrier

4шт.

40

47564552

SUPPORT

Pin

1шт.

41

47674771

PIN,8mm OD x 32mm L

4шт.

42

47564507

SPACER,23mm ID x 26.5mm OD x 4.2mm Thk

Differential

4шт.

43

47670565

NEEDLE,2.5mm OD x 27.8mm L

Differential

128шт.

44

5173213

SNAP RING,1.5mm Thk, Int

1шт.

45

16214930

SCREW,Hex, M14 x 1.5 x 65mm , Cl 10.9

10шт.

46

13598221

NUT,M14 x 1.5

10шт.

47

442245

WASHER,35mm ID x 51.5mm OD x 0.8mm Thk

1шт.

Выбрано товаров: 47
