Запчасти Case IH 6140 (10.400.BI[03]) - COOLING SYSTEM CIRCUIT (10) - ENGINE

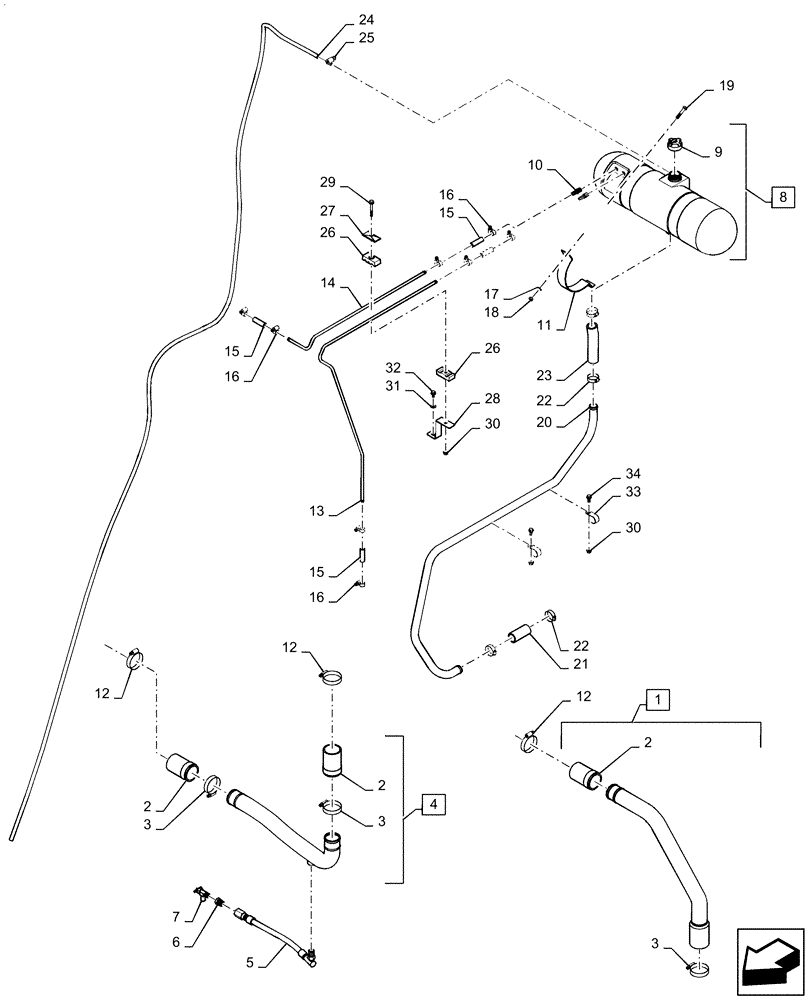

Схема запчастей Case IH 6140 - (10.400.BI[03]) - COOLING SYSTEM CIRCUIT (10) - ENGINE
8
32
24
14
16
26
21
3
3
2
16
7
10
31
2
22
19
16
3
2
22
20
12
1
12
11
27
13
6
15
15
34
15
26
17
23
33
30
29
12
28
18
9
5
4
25
30

Артикул

Название

Примечание

Количество

1

47554567

TUBE

Upper Radiator, Incl 2 - 4

1шт.

2

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

Radiator

2шт.

3

214-3248

HOSE CLAMP,57mm - 79mm

4шт.

4

84151493

TUBE

Lower Radiator, Incl 2 - 4

1шт.

5

84311373

HOSE ASSY.,12.7mm ID x 400mm L, SAE 100R1

Radiator Drain

1шт.

6

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

7

301803R1

SHUT-OFF VALVE

90 Degree

1шт.

8

87670349

RESERVOIR, COOLANT E

Deaeration Bottle, Incl 9 - 10

1шт.

9

82022744

CAP,Female, Vented, Non-Locking

Deaeration Tank

1шт.

10

87742820

FITTING,1/4" Barb x 3/8" Pipe

Barb to Male Pipe

2шт.

11

84442536

CLAMP

Red

2шт.

12

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

4шт.

13

47418654

TUBE

Engine Vent, Cursor

1шт.

14

47419355

TUBE

Engine Vent, NEF and Cursor

1шт.

15

47548019

HOSE

Deaeration Connection

4шт.

16

244358

HOSE CLIP,0.44" - 0.78"

8шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

19

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

20

47428663

TUBE

Deaeration

1шт.

21

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

Lower Radiator Connection

1шт.

22

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

23

84271697

HOSE,28.6mm ID x 200mm L, SAE20R1

Deaeration Connection

1шт.

24

84364059

HOSE ASSY.,12.7mm ID x 3850mm L

Deaeration Connection

1шт.

25

86625022

HOSE CLAMP,6.3mm - 15.7mm

1шт.

26

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Hydraulic Tube

1шт.

27

1347127C1

PLATE

Hose Clamp

1шт.

28

47543817

BRACKET

Deaeration Tube Support, Red

1шт.

29

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

31

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

32

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

33

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

34

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

Выбрано товаров: 34
