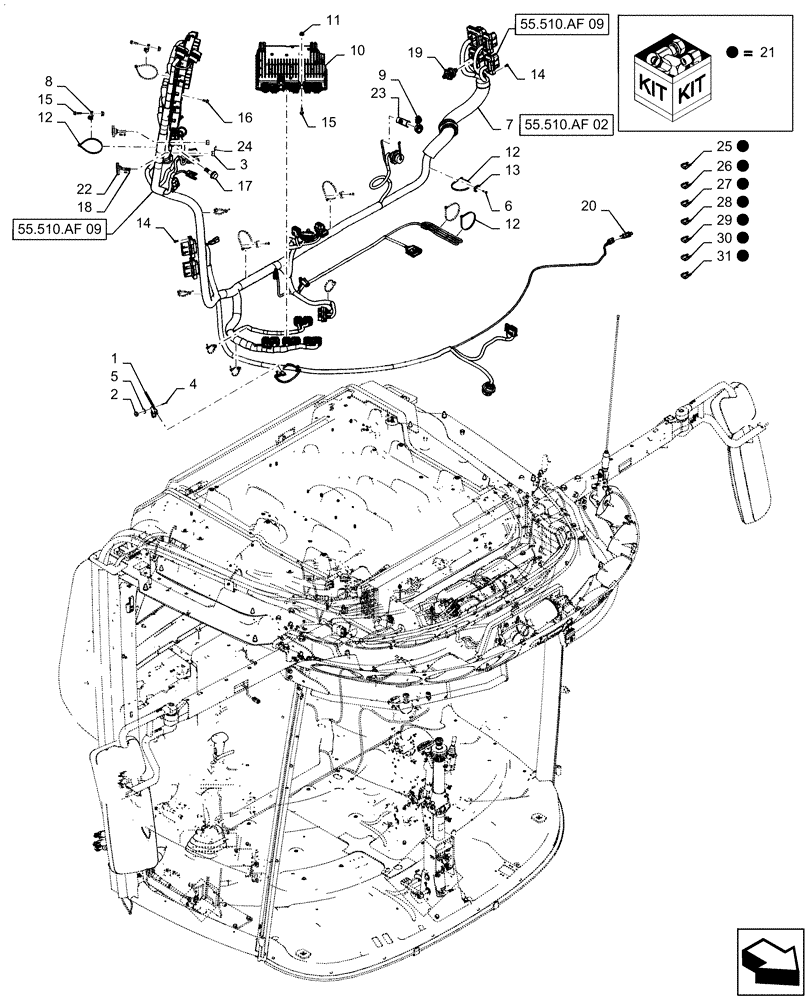

Запчасти Case IH 6140 (55.640.AG[01]) - ELECTRIC SYSTEM CONTROL, CAB (55) - ELECTRICAL SYSTEMS

1

60-6515T1

SWITCH

3rd Gear Lockout

1шт.

2

225-14104

NUT,#4-40

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

5

495-31012

WASHER,#4

2шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

5шт.

7

47651567

WIRE HARNESS

Cab Main

1шт.

8

84340333

BASE PLATE

Base Tie

2шт.

9

84556691

COVER

Dust, 10A DC Outlet

1шт.

10

84589142

MODULE

ECU UCM

1шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

6шт.

12

86566990

CABLE TIE,292mm OAL x 4.8mm W

13шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

5шт.

14

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

24шт.

15

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

6шт.

16

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

16шт.

17

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

18

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

4шт.

19

190158A1

BLOCK

Junction Box

1шт.

20

1983341C1

SWITCH

Diff Lock Brake

1шт.

21

222699A1

FUSE KIT

Mini, Incl 25 - 31

1шт.

22

303717A1

JUNCTION BLOCK

2шт.

23

388812A1

OUTLET

10A,12V DC

1шт.

24

83822C1

TAPE

Rubber Insulation

5шт.

25

121850A1

FUSE,3A, Mini, Violet

1шт.

26

121410A1

FUSE,5A, Mini, Tan

1шт.

26

121411A1

FUSE,7.5A, Mini, Brown

1шт.

27

121412A1

FUSE,10A, Mini, Red

1шт.

28

121413A1

FUSE,15A, Mini, Blue

1шт.

29

121414A1

FUSE,20A, Mini, Yellow

1шт.

30

121415A1

FUSE,25A, Mini, Clear

1шт.

31

121416A1

FUSE,30A, Mini, Green

1шт.
