Запчасти Case IH 6140 (55.624.AZ[03]) - WIRE HARNESS, CHAFF SPREADER (55) - ELECTRICAL SYSTEMS

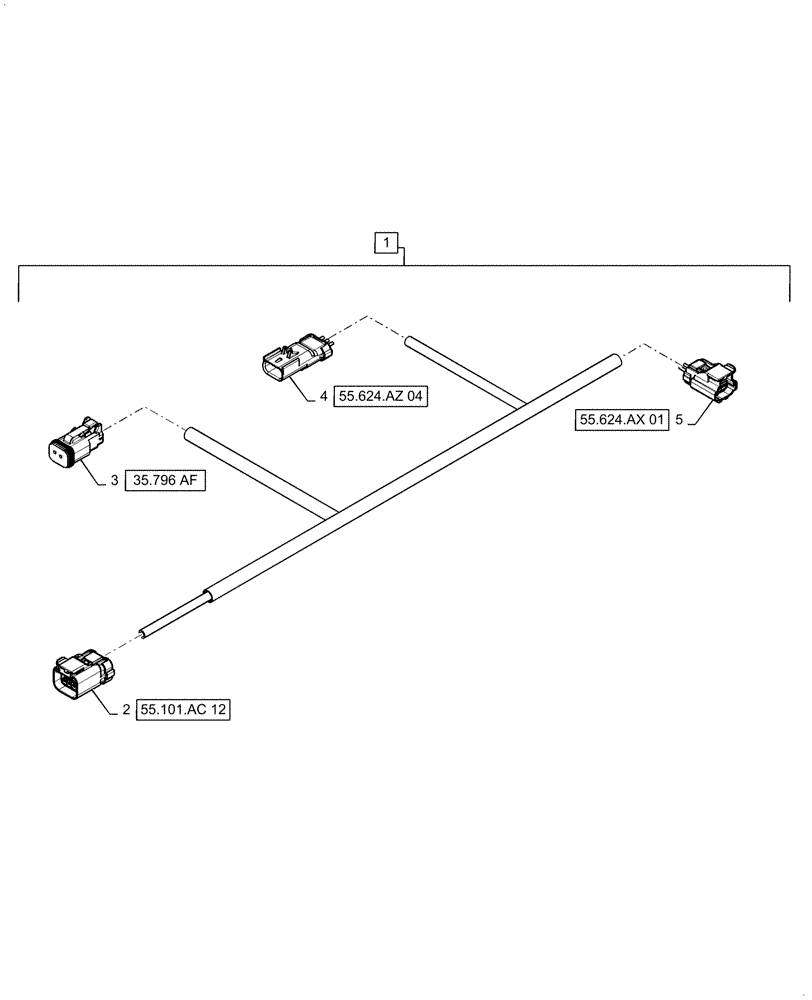

Схема запчастей Case IH 6140 - (55.624.AZ[03]) - WIRE HARNESS, CHAFF SPREADER (55) - ELECTRICAL SYSTEMS
35.796 af
3
2
5
1
4
55.624.az 04
55.101.ac 12
55.624.ax 01

Артикул

Название

Примечание

Количество

1

84373214

WIRE HARNESS

Chaff Spreader, Incl 2 - 5

1шт.

2

87382918

WIRE CONNECTOR,Female, 6 Cavities

to LH Side Harness, X-296

1шт.

2

87383278

PIN

to LH Side Harness, X-296

6шт.

3

87695909

ELEC CONNECTOR,Female, 2 Pole

Spreader Solenoid, X-294

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

Spreader Solenoid, X-294

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Spreader Solenoid, X-294

2шт.

4

87382913

ELEC CONNECTOR

Elec Connector, Speed Sensor, X-295

1шт.

4

87383279

TERMINAL

Speed Sensor, X-295

3шт.

5

87382906

WIRE CONNECTOR,Female, 2 Cavities

Position Sensor, X-293

1шт.

5

87383278

PIN

Position Sensor, X-293

2шт.

Выбрано товаров: 10
