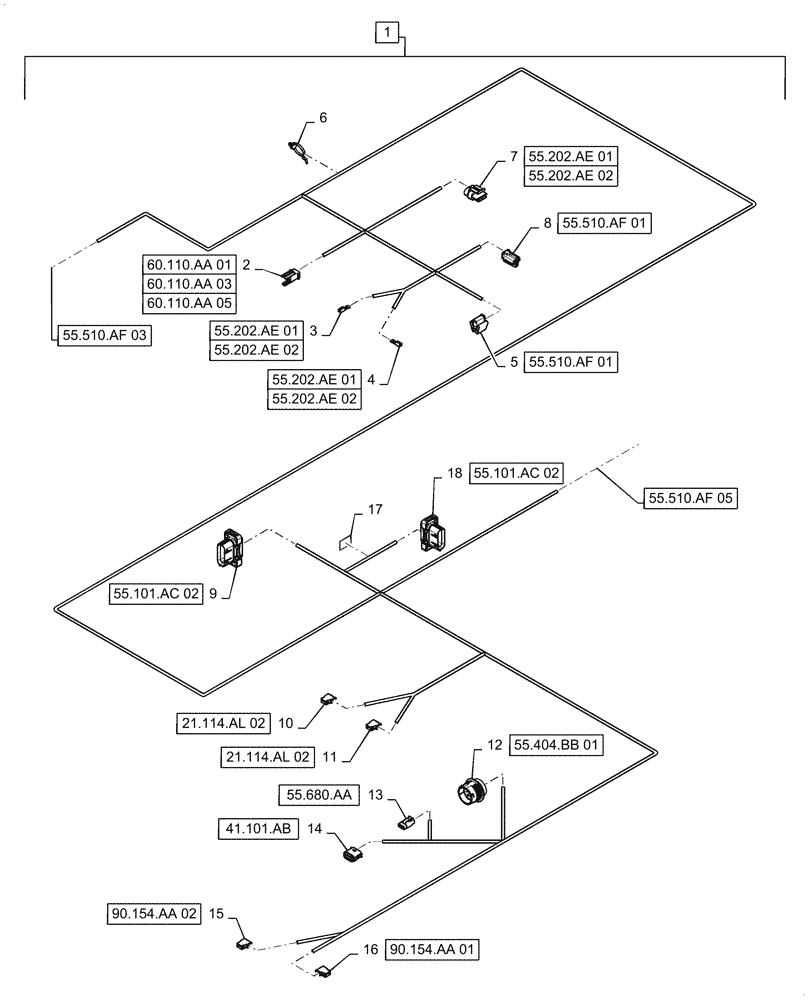

Запчасти Case IH 6140 (55.510.AF[04]) - WIRE HARNESS, CAB MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47651567

WIRE HARNESS

Cab Main, Incl 2 - 18

1шт.

2

82944116

ELEC CONNECTOR

to Implement Socket Jumper, X-081

1шт.

2

87695516

Terminal, to Implement Socket Jumper, X-081

ELEC. TERMINAL PIN

1шт.

2

87695510

Terminal, to Implement Socket Jumper, X-081

2шт.

3

84165997

TERMINAL

Grid Heater Indicator Positive (+), X-702A

1шт.

4

84165997

TERMINAL

Grid Heater Indicator Ground (-), X-702B

1шт.

5

87693713

ELEC CONNECTOR,Female, 6 Cavities

Key Switch, X-068

1шт.

5

87697660

TERMINAL

Key Switch, X-068

2шт.

5

87709400

ELEC. TERMINAL PIN

Key Switch, X-068

1шт.

6

47647146

CLIP

Fir Tree

1шт.

7

87688712

WIRE CONNECTOR,Female

Grid Heater Resistor, X-700

1шт.

7

87688863

CAP

Grid Heater Resistor, X-700

1шт.

7

47405859

RESISTOR

Grid Heater Resistor, X-700

1шт.

7

87688848

TERMINAL

Grid Heater Resistor, X-700

2шт.

8

84398827

WIRE CONNECTOR

Key Switch Panel Auxiliary Outlet, X-069

1шт.

8

84178477

RETAINER

Key Switch Panel Auxiliary Outlet, X-069

1шт.

8

87693727

ELEC. TERMINAL PIN,Tin, 0.75 - 1.00mm

Key Switch Panel Auxiliary Outlet, X-069

2шт.

9

84254825

ELEC CONNECTOR

RH Side Harness, X-023

1шт.

9

84068583

PLUG,12 - 16 Ga, White

RH Side Harness, X-023

2шт.

9

87696141

TERMINAL

RH Side Harness, X-023

26шт.

9

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

RH Side Harness, X-023

4шт.

10

87692768

ELEC CONNECTOR

3RD Gear Lockout, X-950

1шт.

10

87692835

TERMINAL

3RD Gear Lockout, X-950

1шт.

11

87692768

ELEC CONNECTOR

3RD Gear Lockout, X-951

1шт.

11

87692835

TERMINAL

3RD Gear Lockout, X-951

1шт.

12

87696087

ELEC CONNECTOR

to Front Platform, X-031

1шт.

12

84068583

PLUG,12 - 16 Ga, White

to Front Platform, X-031

7шт.

12

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

to Front Platform, X-031

4шт.

12

87695623

ELEC. TERMINAL PIN

to Front Platform, X-031

10шт.

13

87696551

CONTACT HOUSING,Female, 3 Pole

to Autoguidance Self Cancelling Sensor, X-257

1шт.

13

87705586

WEDGE

to Autoguidance Self Cancelling Sensor, X-257

1шт.

13

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

to Autoguidance Self Cancelling Sensor, X-257

3шт.

14

87696075

ELEC CONNECTOR

to Steering Column, X-067

1шт.

14

87695651

LOCKING TAB,Wedge Lock

to Steering Column, X-067

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

to Steering Column, X-067

11шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

to Steering Column, X-067

1шт.

15

87692768

ELEC CONNECTOR

Door Switch, X-137A

1шт.

15

87692835

TERMINAL

Door Switch, X-137A

1шт.

16

87692768

ELEC CONNECTOR

Door Switch, X-137B

1шт.

16

87692835

TERMINAL

Door Switch, X-137B

1шт.

17

84123799

Tape, Reflective, Red

1шт.

18

84550084

ELEC CONNECTOR

Connector, RH Side Harness, X-024

1шт.

18

84068583

PLUG,12 - 16 Ga, White

RH Side Harness, X-024

1шт.

18

87696141

TERMINAL

RH Side Harness, X-024

28шт.

18

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

RH Side Harness, X-024

3шт.
