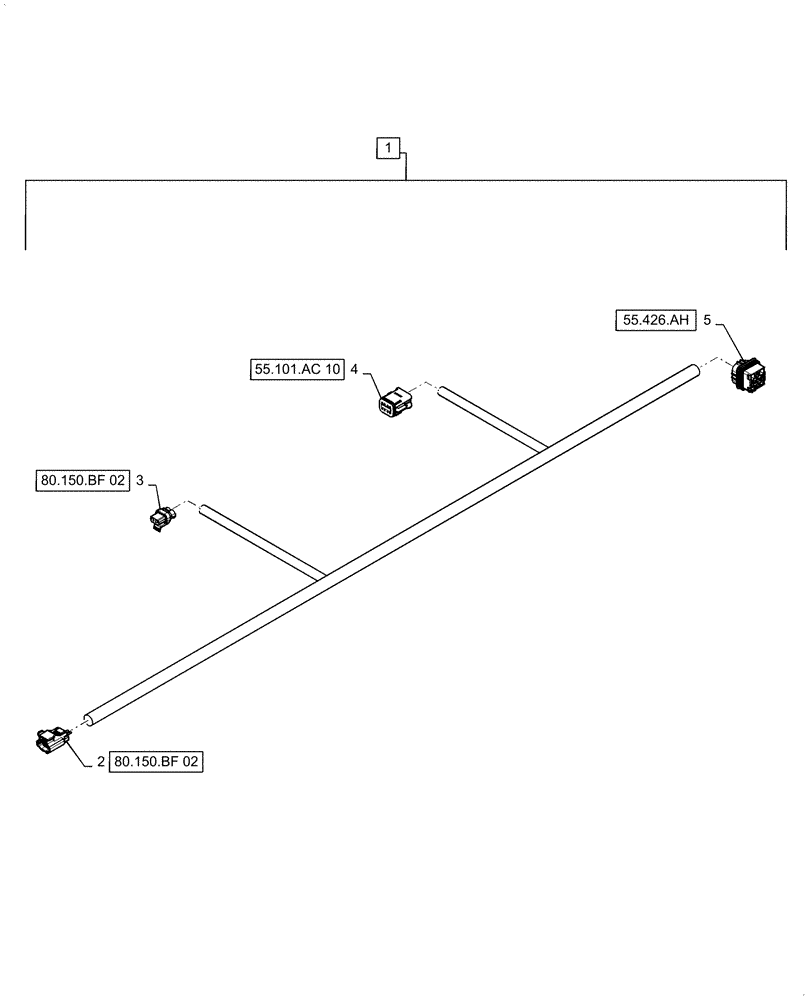

Запчасти Case IH 6140 (55.426.AL[01]) - WIRE HARNESS, GRAIN TANK COVER (55) - ELECTRICAL SYSTEMS

1

84373207

WIRE HARNESS

Grain Tank Cover, Incl 2 - 5

1шт.

2

87382906

WIRE CONNECTOR,Female, 2 Cavities

Covers Closed Sensor, X-393

1шт.

2

84395356

TERMINAL,Female, 2.8mm, 18-20

Covers Closed Sensor, X-393

2шт.

3

87679438

WIRE CONNECTOR,Female

Covers Motor, X-302

1шт.

3

84806458

COLLAR

Covers Motor, X-302

1шт.

3

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Covers Motor, X-302

2шт.

4

87708152

ELEC CONNECTOR

to RH Side Harness, X-195

1шт.

4

84806312

LOCKING TAB,Wedge Lock

Lock, to RH Side Harness, X-195

1шт.

4

84068583

PLUG,12 - 16 Ga, White

to RH Side Harness, X-195

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

to RH Side Harness, X-195

4шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

to RH Side Harness, X-195

3шт.

5

84147481

Rotor Speed/Grain Tank Covers Select, X-324

ELEC CONNECTOR

1шт.

5

87688850

TERMINAL

Rotor Speed/Grain Tank Covers Select, X-324

3шт.

5

87688848

TERMINAL

Rotor Speed/Grain Tank Covers Select, X-324

2шт.
