Запчасти Case IH 6140 (55.426.AH[02]) - WIRE HARNESS, GRAIN TANK (55) - ELECTRICAL SYSTEMS

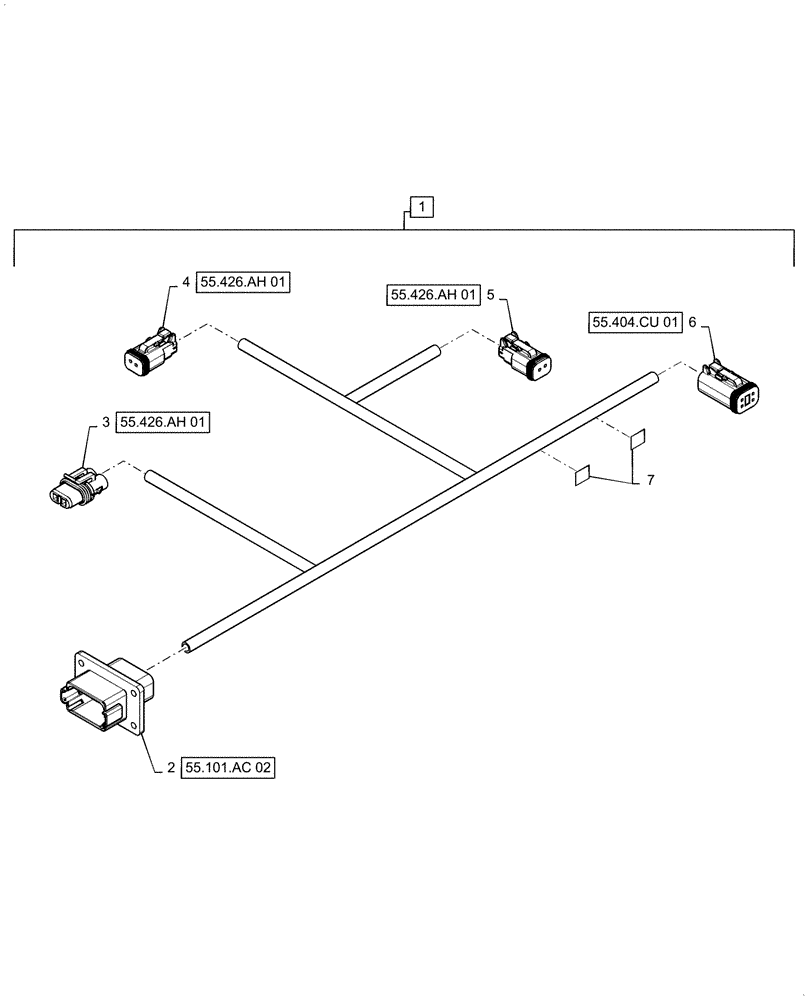

Схема запчастей Case IH 6140 - (55.426.AH[02]) - WIRE HARNESS, GRAIN TANK (55) - ELECTRICAL SYSTEMS
55.404.cu 01
4
6
2
7
5
1
3
55.101.ac 02
55.426.ah 01
55.426.ah 01
55.426.ah 01

Артикул

Название

Примечание

Количество

1

84524019

WIRE HARNESS

Grain Tank, Incl 2 - 7

1шт.

2

87700108

ELEC CONNECTOR

to RH Harness, X-174

1шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, to RH Harness, X-174

1шт.

2

84068583

PLUG,12 - 16 Ga, White

to RH Harness, X-174

5шт.

2

87695623

ELEC. TERMINAL PIN

to RH Harness, X-174

4шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

to RH Harness, X-174

3шт.

3

87693711

CONNECTOR, ELEC

Grain Tank Light, X-287

1шт.

3

87704960

ELEC CONNECTOR

Lock, Grain Tank Light, X-287

1шт.

3

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Grain Tank Light, X-287

2шт.

4

87695909

ELEC CONNECTOR,Female, 2 Pole

Grain Tank Full, X-286

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

Grain Tank Full, X-286

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Grain Tank Full, X-286

2шт.

5

87695909

ELEC CONNECTOR,Female, 2 Pole

Grain Tank 3/4 Full, X-289

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Grain Tank 3/4 Full, X-289

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Grain Tank 3/4 Full, X-289

2шт.

6

87708147

ELEC CONNECTOR,Female, 4 Cavities

Unloader Tube Marker Light, X-288

1шт.

6

84074640

LOCKING TAB,Wedge Lock

Unloader Tube Marker Light, X-288

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Unloader Tube Marker Light, X-288

1шт.

6

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Unloader Tube Marker Light, X-288

3шт.

7

84123434

TAPE

Reflector, White

2шт.

Выбрано товаров: 20
