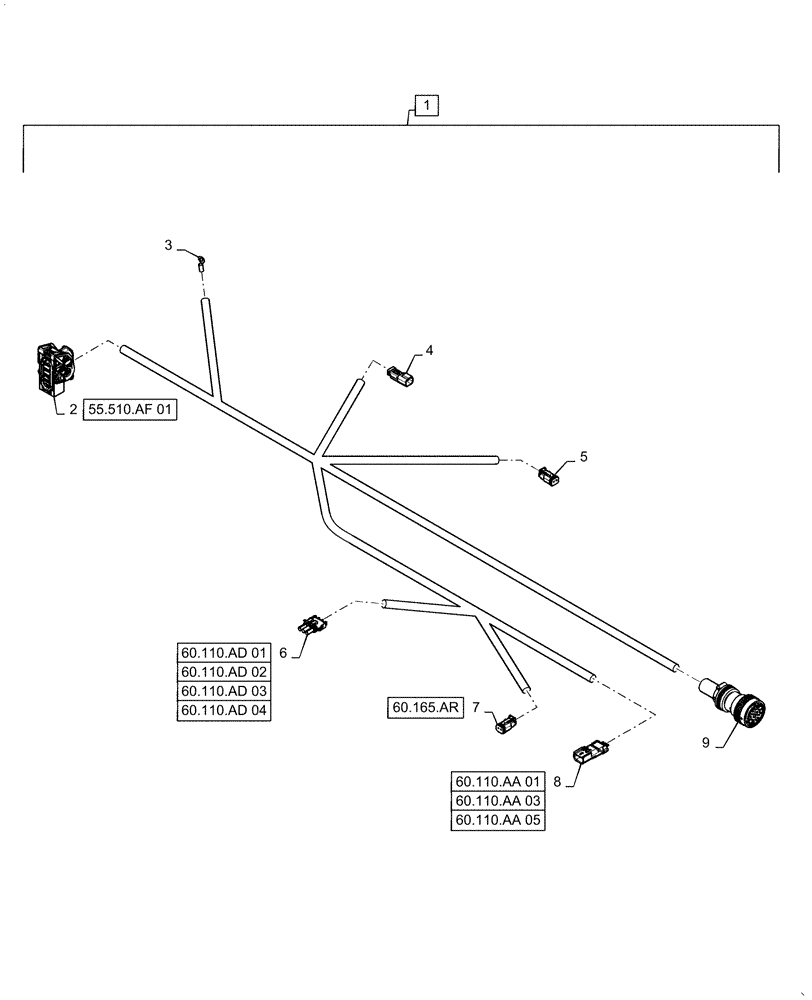

Запчасти Case IH 6140 (55.421.AX[01]) - WIRE HARNESS, FEEDER (55) - ELECTRICAL SYSTEMS

1

47438158

WIRE HARNESS

Feeder, Incl 2 - 9

1шт.

2

84551855

Connector, to Cab, X-002

1шт.

2

84807680

PLUG

to Cab, X-002

4шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

to Cab, X-002

25шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

to Cab, X-002

3шт.

3

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Chassis Ground, X-919

1шт.

4

87708108

WIRE CONNECTOR,Male, 14 - 20 SAE

Vertical Knife, X-211F

1шт.

4

86500166

ELEC CONNECTOR

Lock, Vertical Knife, X-211F

1шт.

4

87695623

ELEC. TERMINAL PIN

Vertical Knife, X-211F

2шт.

5

87695909

ELEC CONNECTOR,Female, 2 Pole

Vertical Knife, X-211

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Vertical Knife, X-211

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Vertical Knife, X-211

2шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

Feeder Position Angle, X-202

1шт.

6

87692856

CABLE TERMINAL

Feeder Position Angle, X-202

3шт.

7

87695909

ELEC CONNECTOR,Female, 2 Pole

Feeder Reverser, X-215

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

Feeder Reverser, X-215

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Feeder Reverser, X-215

2шт.

8

87382911

WIRE CONNECTOR,Male, 3 Cavities

Header Tilt Angle, X-216

1шт.

8

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

Header Tilt Angle, X-216

3шт.

9

87716976

ELEC CONNECTOR

Header, X-032

1шт.

9

84068583

PLUG,12 - 16 Ga, White

Header, X-032

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Header, X-032

29шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Header, X-032

1шт.
