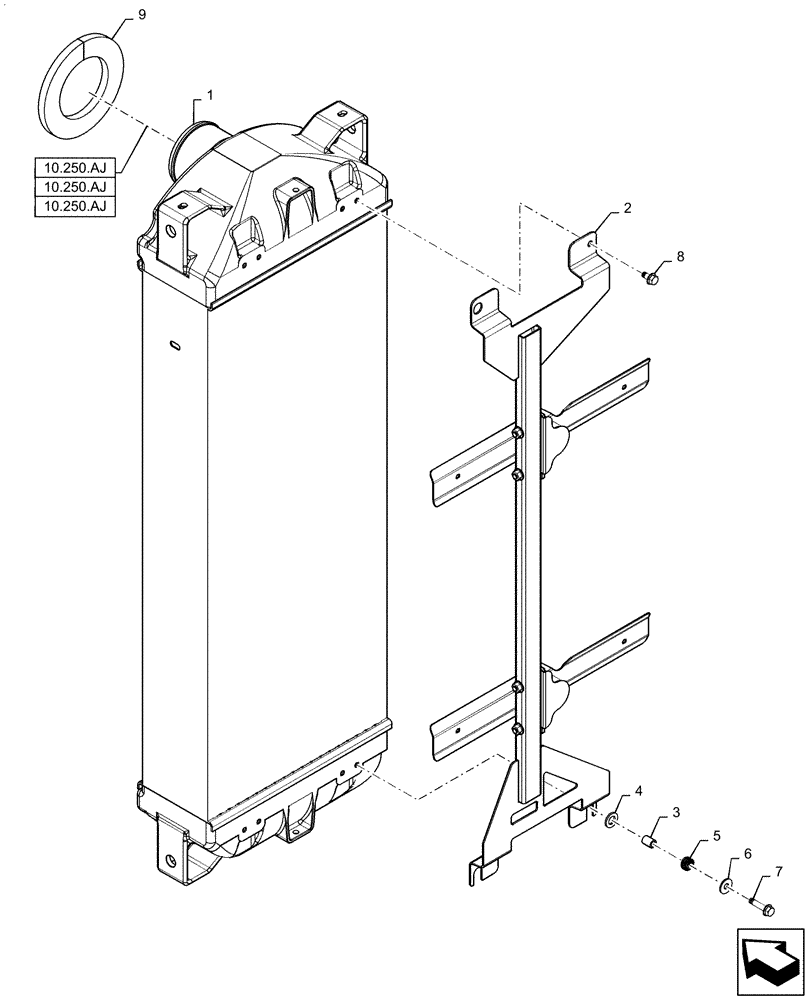

Запчасти Case IH 6140 (10.310.AA) - INTERCOOLER, COOLER ASSY. (10) - ENGINE

1

87325480

COOLER

CAC, Intercooler

1шт.

1

438250A2

COOLER

CAC, Intercooler

1шт.

2

87381181

ASSEMBLY

CAC Wiper

1шт.

3

87392240

SPACER,8.48mm ID x 12.7mm OD x 16.8mm L

3шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

5

87392233

COMPRESSION SPRING,17.2mm OD x 22.5mm L

3шт.

6

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

7

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

3шт.

8

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

9

87419199

FOAM INSULATION,31.8mm W x 520mm L x 12.7mm Thk

Fan Shroud

2шт.
