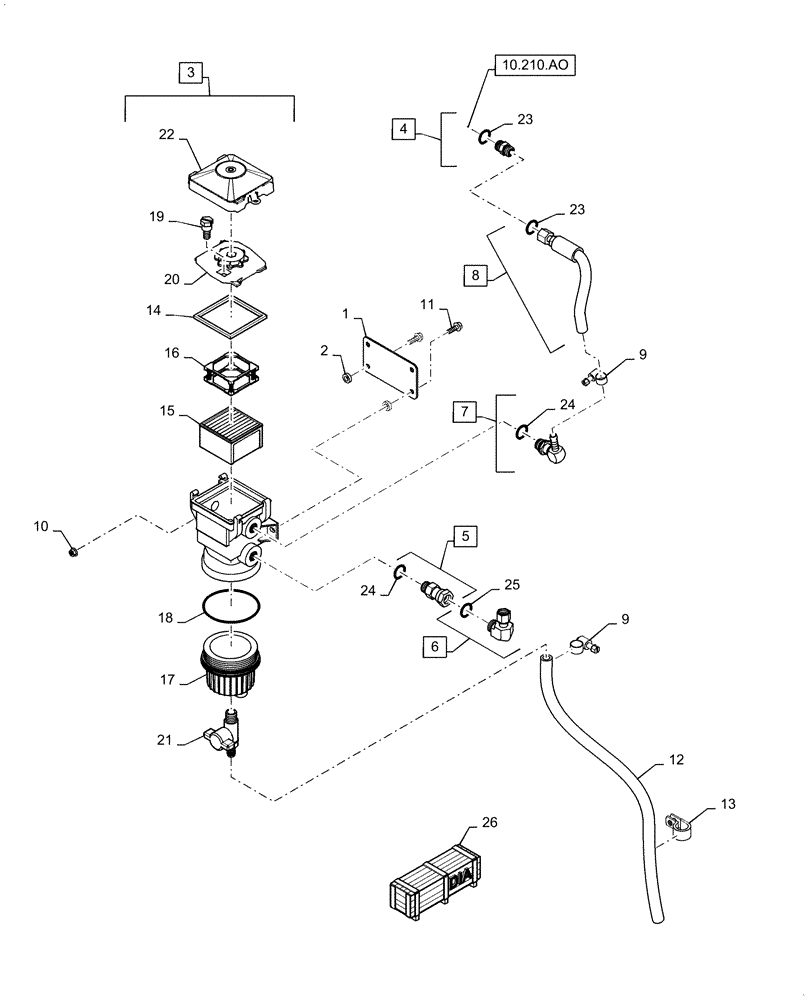

Запчасти Case IH 6140 (10.206.AF) - FUEL FILTER/WATER SEPARATOR (10) - ENGINE

1

84206790

BRACKET

Mount

1шт.

2

86637956

WASHER,0.41" ID x 0.75" OD x 0.22" Thk

2шт.

3

87734479

SEPARATOR

Filter, Fuel, Incl 14 - 22

1шт.

4

201-152

HYD CONNECTOR,13/16"-16 ORFS

Incl 23

1шт.

5

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

Incl 24

1шт.

6

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

Incl 25

1шт.

7

84188140

90 ELBOW,1/2" Barb x M22 x 1.5 ORB

Incl 24

1шт.

8

84169780

HOSE ASSY.

Fuel Suppy, Incl 23

1шт.

9

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

12

84136309

FLEXIBLE HOSE,12.70mm ID x 762mm, SAE30R2

Drain

1шт.

13

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

47477958

GASKET,6.35mm W x 102.88mm H x 103.12 L x 6.35mm Thk

Top Lid

1шт.

15

87409379

FUEL FILTER,30 Micron

30 Micron Strainer

1шт.

16

87333679

SPRING

Frame

1шт.

17

87473304

BOWL

Water Sensor

1шт.

18

87473305

O-RING,0.07" Thk x 4.3" ID

Bowl Gasket

1шт.

19

87474698

BLEEDER VALVE

Air

1шт.

20

87473306

LID

Filter

1шт.

21

87473308

DRAIN VALVE

Fuel

1шт.

22

87474697

COVER

Dust

1шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

25

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

26

84566375

SERVICE KIT

Fuel/Water Separator, Incl 1 - 13. Inst Sheet 84566376

1шт.
