Запчасти Case IH 6140 (90.160.AH[03]) - VAR - 425358 - PANEL, CAB, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

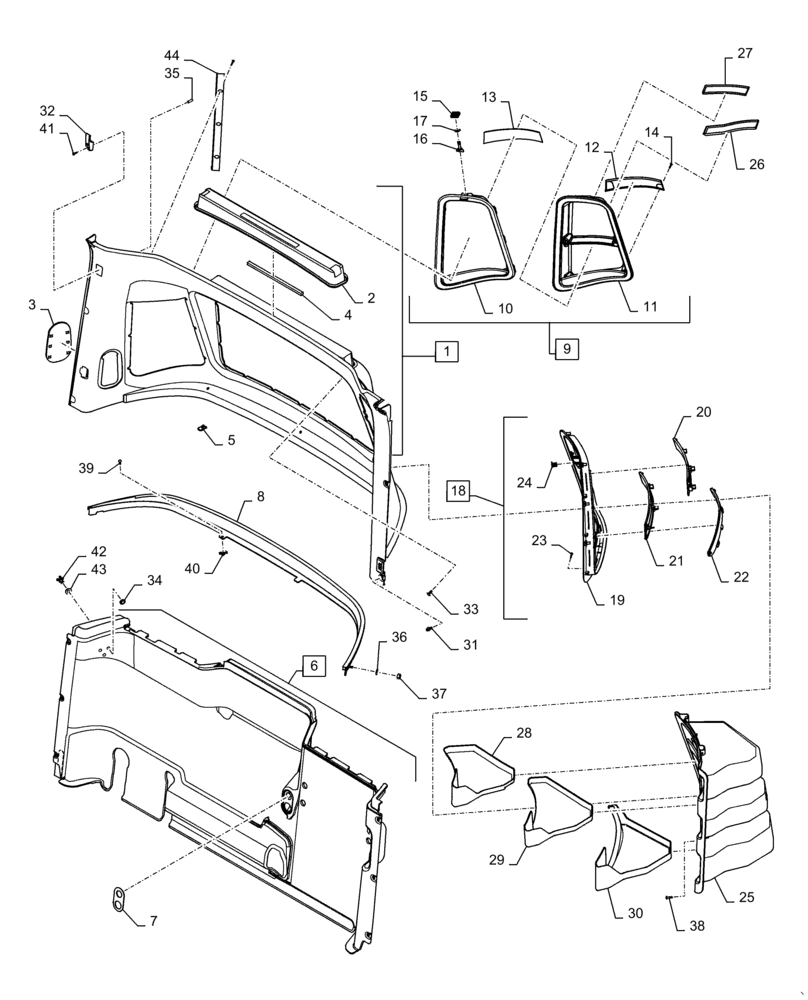

Схема запчастей Case IH 6140 - (90.160.AH[03]) - VAR - 425358 - PANEL, CAB, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
20
1
44
22
11
6
34
7
16
27
40
24
35
18
39
8
14
42
31
25
10
32
26
12
19
43
29
5
13
15
3
4
33
17
21
28
38
41
37
36
2
23
30

Артикул

Название

Примечание

Количество

1

47497637

LINER

Rear Upper, Wheat, Incl 2 - 5

1шт.

2

84545797

COVER

Upper Window, Rear

1шт.

3

47400062

PLATE

Ignition Panel Mount

1шт.

4

47394939

FOAM

230mm

1шт.

5

47435270

CLIP

Retaining

3шт.

6

47637109

LINER

Lower Rear, Incl 7

1шт.

7

47435265

REINFORCEMENT

Harness Entry

1шт.

8

84577647

BEZEL

Rear Trim, Wheat

1шт.

9

47404666

COVER

Operators Right Rear, Incl 10 - 17

1шт.

10

84545927

COVER

Retainer Ring

1шт.

11

47404663

COVER

Storage Compartment

1шт.

12

47404669

COVER

Upper, Wheat

1шт.

13

47404671

COVER

Lower, Wheat

1шт.

14

84404455

SCREW,Spcl Tap, Rd Wshr Hd Torx, M3.5 x 12mm

6шт.

15

84576335

LOCK

Quarter Turn Receiver

1шт.

16

84576359

PLUG

Quarter Turn Receiver

1шт.

17

84576365

WASHER,8mm ID x 16mm OD x 0.5mm Thk

Quarter Turn Lock

1шт.

18

47404653

COVER

3 Tier, Wheat, Incl 19 - 24

1шт.

19

47404655

COVER

Trim Ring, Wheat

1шт.

20

47404659

COVER

Upper, Wheat

1шт.

21

47404661

COVER

Middle, Wheat

1шт.

22

47404679

COVER

Lower, Wheat

1шт.

23

47391906

SCREW,Torx, M3.5 x 1.65 x 12mm

6шт.

24

47406156

SPRING CLIP

Retainer

6шт.

25

47400104

COVER

3 Tier Compartment

1шт.

26

47635825

LINER

Lower, 2 Tier

1шт.

27

47635822

LINER

Upper, 2 Tier

1шт.

28

47635755

LINER

Upper, 3 Tier

1шт.

29

47635756

LINER

Middle, 3 Tier

1шт.

30

47635757

LINER

Lower, 3 Tier

1шт.

31

84563392

PLASTIC PLUG

Push, Phillips Screw In

12шт.

32

86520824

HOOK

Coat

1шт.

33

93199C1

FASTENER

Ratchet

3шт.

34

84563251

PLUG

Wheat, Mushroom

3шт.

35

47608153

SPRING NUT

M4

2шт.

36

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

5шт.

37

12574115

NUT

M5

5шт.

38

84073086

LOCK BOLT,Pan HD, M6 x 20mm

1шт.

39

725479

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13

2шт.

40

47395852

SPRING NUT

30mm x 4.8mm x .7mm

2шт.

41

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

42

87532870

THREADED INSERT,Rivnut, M4, 8mm OD x 16.6mm OAL, 11.9mm Shoulder

3шт.

43

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

44

47438202

BRACKET

Support

1шт.

Выбрано товаров: 44
