Запчасти Case IH 6140 (90.154.AA[01]) - CAB DOOR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

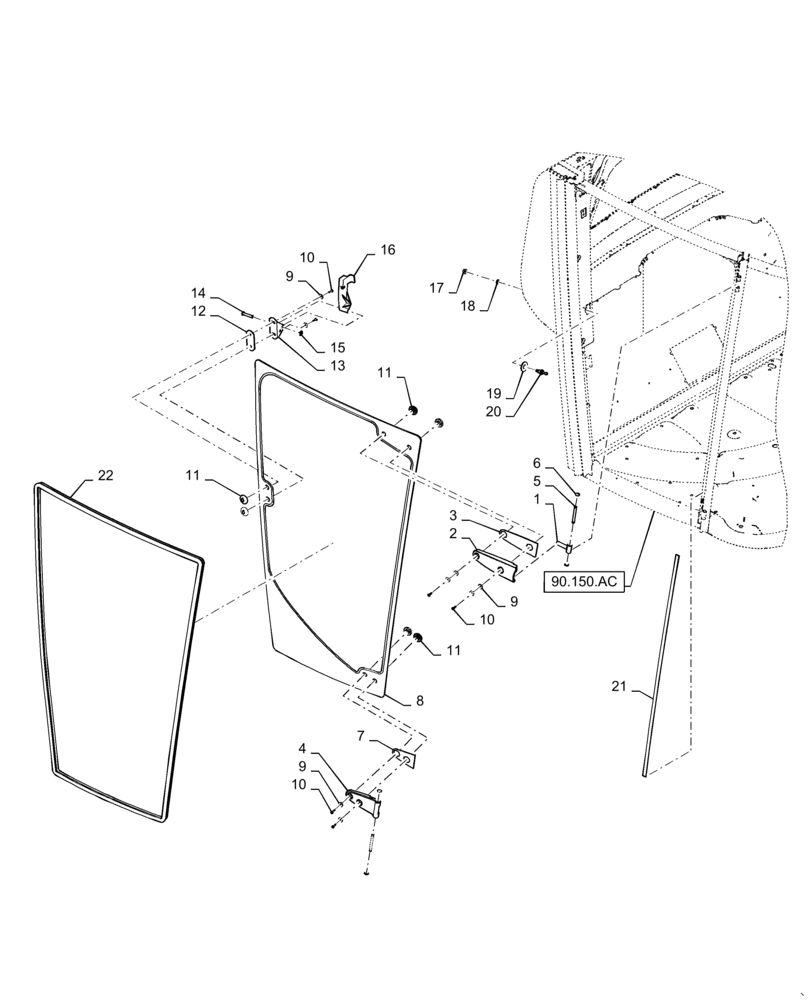

Схема запчастей Case IH 6140 - (90.154.AA[01]) - CAB DOOR, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
18
3
9
6
9
1
10
2
10
22
13
20
9
21
4
7
11
90.150.ac
10
11
11
15
5
16
17
19
14
12

Артикул

Название

Примечание

Количество

1

84607170

HINGE

Upper

1шт.

2

84061311

HINGE

Outer Plate Upper

1шт.

3

84057937

SEAL PROTECTION

Upper Hinge

1шт.

4

84061313

HINGE

Outer Plate Lower

1шт.

5

84607358

PIN,10mm OD x 96mm L

Hinge

2шт.

6

431021

SPECIAL WASHER

Securing

4шт.

7

84057936

SEAL PROTECTION

Lower Hinge

1шт.

8

87282167

CAB GLASS

Operators Right

1шт.

9

84072877

WASHER,6.6mm ID x 22mm OD x 2mm Thk

10шт.

10

84073086

LOCK BOLT,Pan HD, M6 x 20mm

6шт.

11

86531235

BUSHING,M6 ID x 40mm OD x 13mm

Middle Glass, Outside

6шт.

12

84057939

SEAL PROTECTION

Inner Latch

1шт.

13

84434979

BRACKET

Latch

1шт.

14

84320278

PIN,10mm OD x 59mm L

9mm OD x 59mm OAL

1шт.

15

86979020

CIRCLIP,M9

1шт.

16

9992366

HANDLE

Lock

1шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

18

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

19

47515146

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

0.688" ID x 1.75" OD x 0.134" W

1шт.

20

47358741

PIN,14mm OD x 61mm L

RH, M10 x 1.5 x 61mm OAL

1шт.

21

87032582

SEALING STRIP,15mm W x 1250mm L x 4mm Thk

1250mm OAL x 15mm H x 4mm Thick

1шт.

22

84057848

SEAL,4415mm L

Glass

1шт.

Выбрано товаров: 22
